TRACER22215BN MPPT -LAD -Regler BN Serie 20A/20A 12V/24V Solar EP

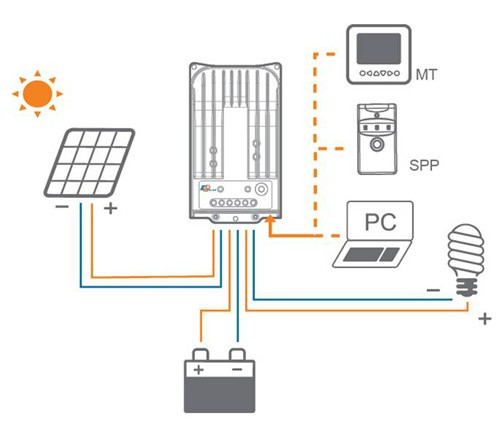

Model

Tracer1215BN

Tracer2215BN

Tracer3215BN

Tracer4215BN

Nominal system voltage

12/24V auto work

Rated  battery current

10A

20A

30A

40A

Rated  load current

10A

20A

20A

20A

Max. PV open circuit voltage

150V at minimum operating environment temperature

138V at 25℃ environment temperature

MPP Voltage range

Battery voltage+2V～108V

Max. PV input power

130W  (12V)

260W  (12V)

390W  (12V)

520W  (12V)

260W  (24V)

520W  (24V)

780W  (24V)

1040W  (24V)

Equalize charging voltage

Sealed: 14.6V,  Flooded: 14.8V, USER: 9~17V

Boost charging voltage

Gel: 14.2V,  Sealed: 14.4V,  Flooded: 14.6V, USER: 9~17V

Float charging voltage

Gel /Sealed /Flooded: 13.8V,   USER: 9~17V

Low voltage reconnect voltage

Gel /Sealed /Flooded: 12.6V,   USER: 9~17V

Low voltage disconnect voltage

Gel /Sealed /Flooded: 11.1V,   USER: 9~17V

Self-consumption

≤60mA(12V)  ≤30mA(24V)

Grounding

Common negative

Temp. compensation

-3mV/℃/2V

Communication Port

RS485 / RJ45 interface

Working temperature

-35℃～+55℃

Storage temperature

-35℃～+80℃

Humidity

≤95% N.C.

Enclosure

IP30

Overall dimension

196x118x36mm

217x143x56mm

281x160x60mm

303x183x64mm

Terminal

4mm²

10mm²

16mm²

25mm²

Net weight

0.9kg

1.5kg

2.3kg

2.9kg
