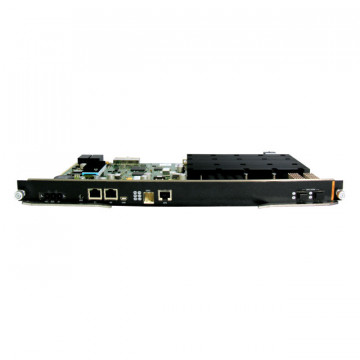

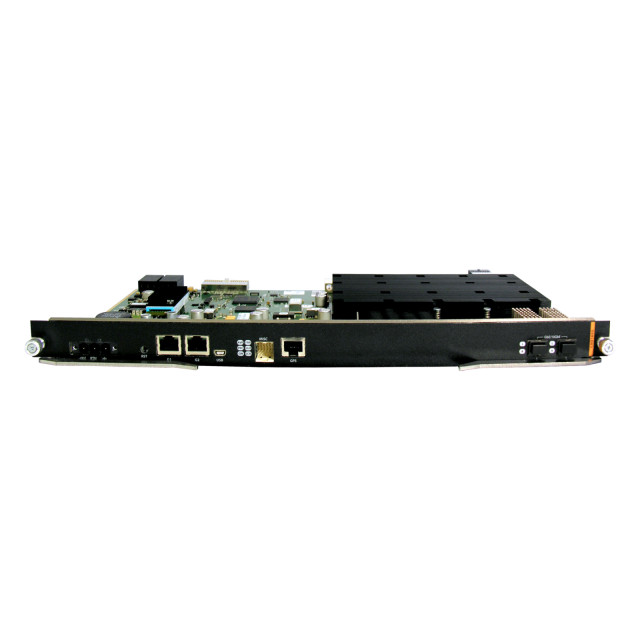

2x 10GB Switch Plate (for OLT3072, Ref. 769420)

Description

OLT3072 Modular System. Up to 3072 Subscribers - Back Plane Switch 2x10Gbps. The Optical Line Terminal (OLT) is a head that distributes services through optical fiber using the GPON protocol. It is in charge of managing and adapting the services to the profile of each subscriber and its devices, allowing the distribution and marketing of Quad Play signals (internet, TV, telephony, etc.). Especially designed for residential, the OLT3072 has the capacity to serve 3072 subscribers with a total rates of 2.5gbps/1.24gbps downstream/upstream on each GPON port. The OLT consists of a modular system formed by: The chassis with power supply (Ref. 769420) with 3 grooves to install the 16 -pone plates (Ref. 769422), and 2 grooves to install Back Plane Switch 2x10GBPs (Ref. 769421) .. intuitive configuration through web interface. Possibility of configuration through simple click interface (commands). Remote management and monitoring. Action radius up to 60km. Compatibility with SFPs with references: 769410, 769411, 769412 or 769413.
