Description

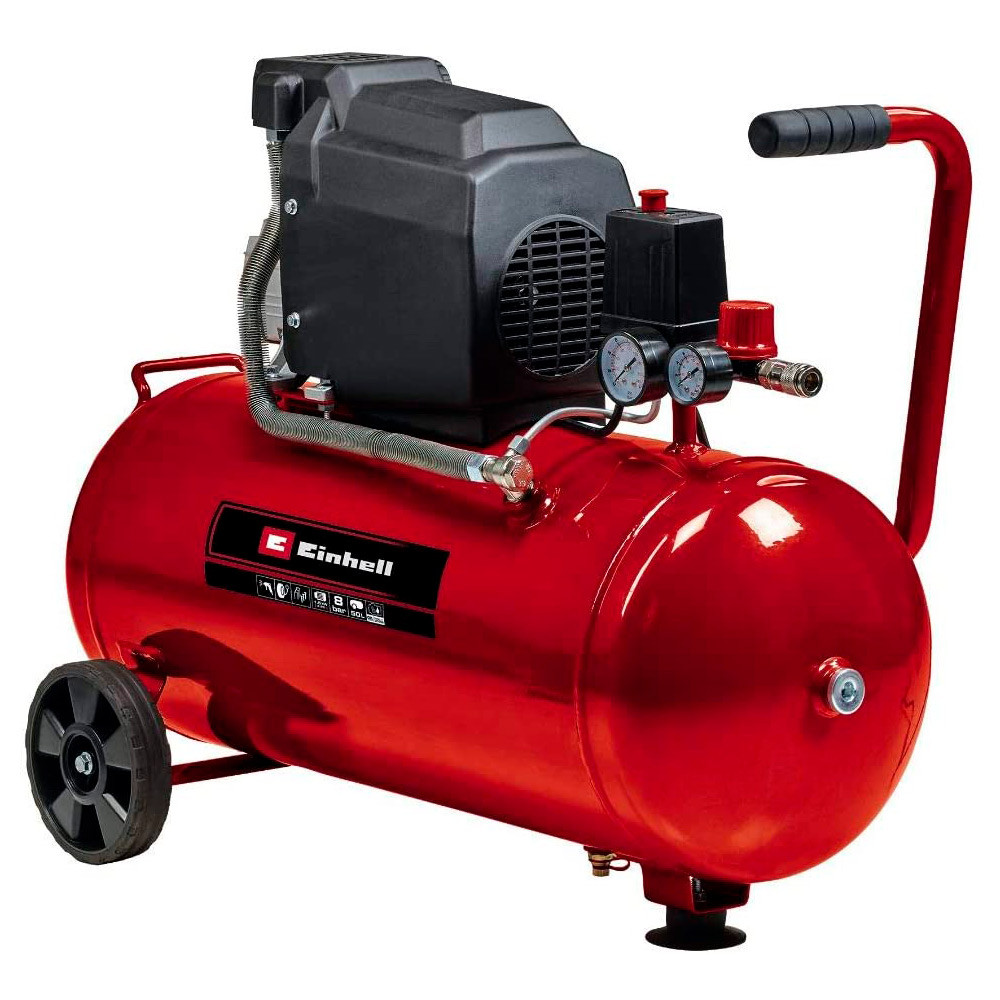

The TC-AC 190/50/8 compressor of EINHELL is a multifunctional basic device that should not miss in any garage or workshop. With a compressor you can explore a completely new class of tools. The compressor has a power of 1,500 watts, which allows you to make numerous applications up to a maximum of 8 bar, adjustable through the pressure reducer. The 50 L tank offers enough air reserve for flexible use. Oil lubrication ensures the long use of the compressor and, in addition, EINHELL offers a 10 -year warranty against reservoir rust. The Antir -port valve and safety valve ensure greater use safety and drainage screw allows convenient compressor maintenance. A gauge and fast coupling in order to ensure regulated working pressure, as well as a large pressure gauge for unregulated reservoir pressure. The rubber wheels and the transport handle allow the compressor mobility. Supported foot with rubber shock absorber reduces noise during operation. Specifications: Network connection: 220-240 V | 50 Hz MAX POWER. Engine (S2 | S2TIME): 1500 W 15 min Empty: 2850 min^-1 Pump Speed: 2850 min^-1 Theoretical Aspiration: 165 L/min Air debit with 0 bar: 110 L/min air debit with 4 bar: 75 L/min Service: 8 Bar Reservoir Volume: 50 L Number of cylinders: 1 Pieces Sound Pressure Level; LPA: 73.4 DB (a)
Character
Performance
- Pump engine speed2850 RPM
- Sound pressure level (SPL)73.4 dB
- Admission capacity165 L/min
- Air tank capacity50 L
- Maximum pressure8 bar
Energy management
- PortableB.C
- AC Input Frequency50 Hz
- AC entrance voltage220-240 V
- Engine power1500 W
Character
- Does not need lubrication
- ColorBlack, red
- Number of cylinders1
- Suitable forUniversal
- Number of wheels2 wheel (s)
Weights and dimensions
- Packaging Depth328 mm
- Packaging height642 mm
- Packaging length785 mm
- Package weight29.6 kg
- Weight26.3 kg
