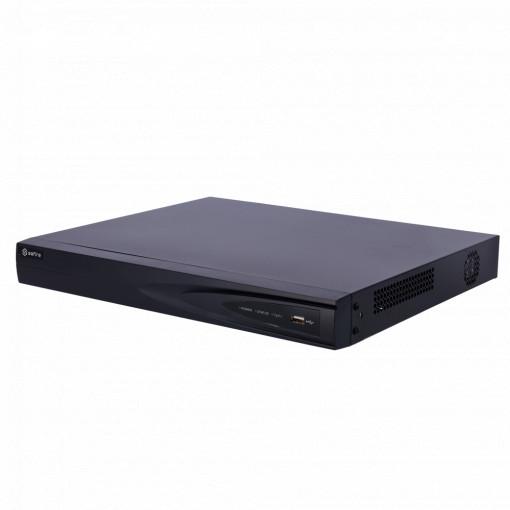

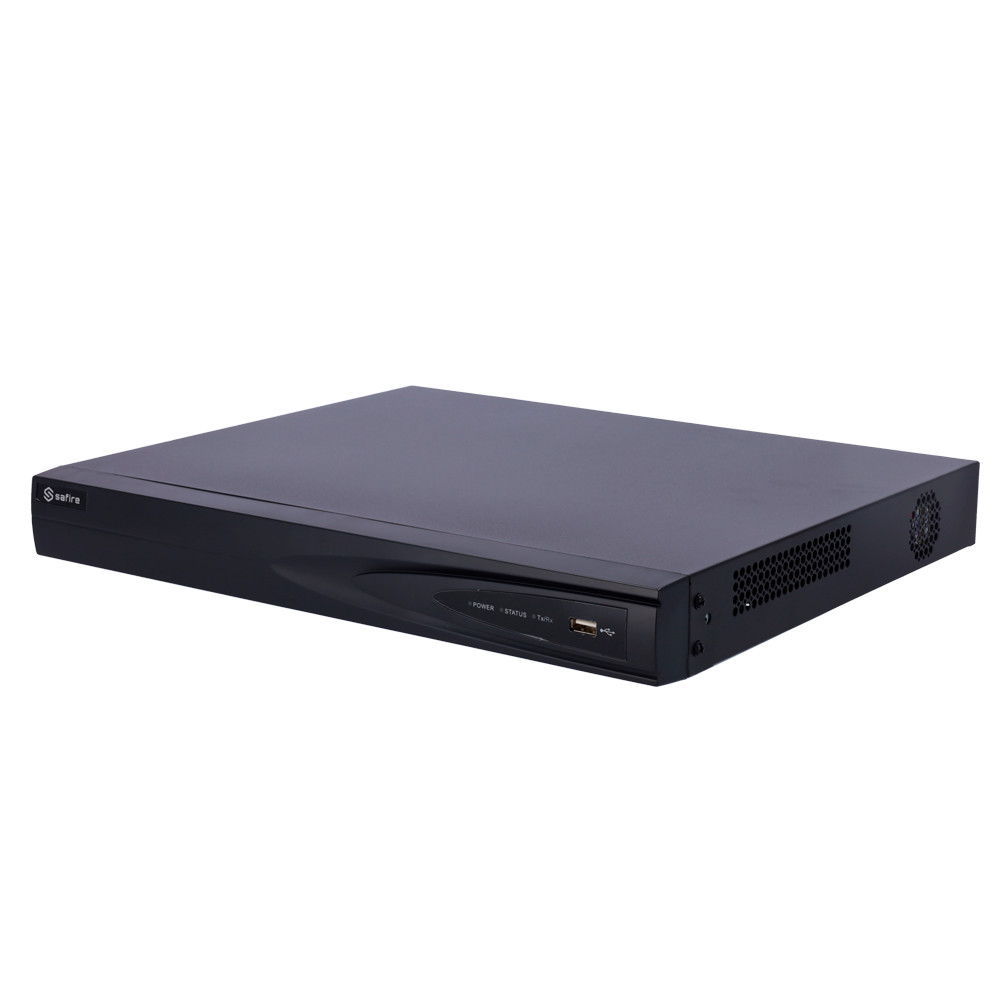

5N1 Safire Video - Audio on Coaxial Cable - 16CH HDTVI/HDCVI/AHD/CVBS/16+8 IP - 8 MPX (8fps)/5 MPX (12fps) - HDMI 4K and VGA - TRUE SENSE
€547.00
(IVA included)
€444.72
(Without IVA)
Description
| Mark | Saffire |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 16 BNC channels, (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | By default: 16 BNC channels and 16 (replacement) + 4 (extra) IP channels (up to 8MPX) IP Mode improved: 16 BNC channels and 16 (replacement) + 16 (extra) IP channels (up to 8MPX) IP mode improved limits bandwidth to 4MBPS per channel IP |
| Input band width | 10MBPS |
| Video exits | 1 HDMI 4K, 1 VGA, 1 BNC (CVBs) * HDMI and VGA are simultaneous |
| Audio | 8CH in the coaxial cable (HDTVI), 1 input / 1 output RCA |
| In / Oct alarms | 8/4 |
| Bidirectional audio | Use of audio inputs and RCA outputs |
| Video/Audio compression | H.265Pro+ / h.265Pro / h.264+ / h.264 / g.711u |
| Display resolution | HDMI: 4K (3840x2160), 2K (2560x1440), 1920x1080, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 |
| BNC input resolution | 8MPX / 5MPX / 4MPX / 3MPX / 1080P / 720P |
| Main Stream coding | 8 MPX (8 fps), 3k / 5mpx (12 fps), 1080p / 720p / vga / wd1 / 4cif / cif (25 fps) |
| Extra Stream coding | WD1 / 4CIF (12fps) / CIF (25 fps) |
| Simultaneous multifunction | Pentaplex: direct, recording, reproduction, backup and remote access |
| Advanced resources | MOVEMENT DETECTION 2.0: Advanced detection of human and vehicle movement in the scene. Quick search capacity for objectives. True Sense: up to 4 channels (fake alarm filter capable of classifying objectives between humans and vehicles) |
| Recording method | Manual, programmed, motion detection, alarm |
| Backup | USB / Network / Cloud (Microsoft One Drive, Dropbox) |
| Internal storage | HDD SATA 3.5 "up to 10TB (not included) |
| Communication | RS485 (PTZ) / 2 x USB 2.0 (mouse and backup) / RJ45 (Ethernet) 10 /100 / 1000m |
| Remote access | Browser, Smartphone App and CMS Safire Control Center software |
| Food | DC 12 V / 5 A (HDD NO CONSUMPTION <19 W) |
| Dimensions / Weight | 48 (AL) X 380 (LG) X 320 (FD) mm / 2.1 kg |
