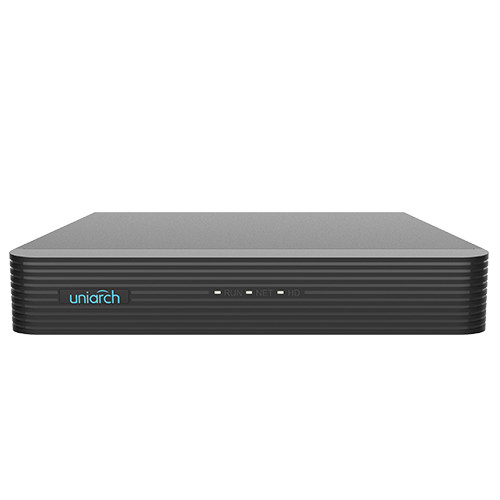

5N1 VIDEER - UNIARCH - 4 CH HDTVI / HDCVI / AHD / CVBS + 2 Extra IP - Audio - Admits 1 hard disk
€44.66
(IVA included)
Delivery cost is not included
Description
| Mark | Uniarch |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 4CH BNC |
| Hybrid configuration | Up to 6 IP channels (4MPX) replacing all BNC channels |
| Video exits | 1 HDMI Full HD, 1 VGA |
| Audio inputs | 1 RCA Channel |
| Audio exits | 1 RCA Channel |
| Bidirectional audio | Reusing the input/audio output |
| Display resolution | 1920x1080@60Hz, 1920x1080@50Hz, 1600x1200@60Hz, 1280x1024@60Hz, 1280x720@60Hz, 1024x768@60hz |
| Maximum IP recording resolution | 4 MPX |
| Supported analog chambers | TVI / AHD: 5MP@20fps, 4MP@30fps, 1080p@30fps, 720p@60fps CVI: 5mp@20fps, 4MP@30fps, 1080p@30fps, 720p@30fps |
| Main Stream recordings coding | 5Plite@12fps; 4mplite@15fps; 1080p@15fps; 720p@25fps |
| Extra Stream recording coding | D1@12fps; D1@15fps; D1@25fps |
| Recording method | Manual, programmed, motion detection |
| Internal storage | 1 HDD SATA 3.5 "up to 8TB (not included) |
| External interface | 2 x USB (rat and backup)/RJ45 10m/100m/1000m (Ethernet) |
| Remote access | Web browser, CMS software (Ezstation), smartphone (EZVIEW/EZLIVE) |
| Food | DC 12 V / 8 W |
| Dimensions / Weight | 260mm × 218mm × 47mm / 1.1 kg |
