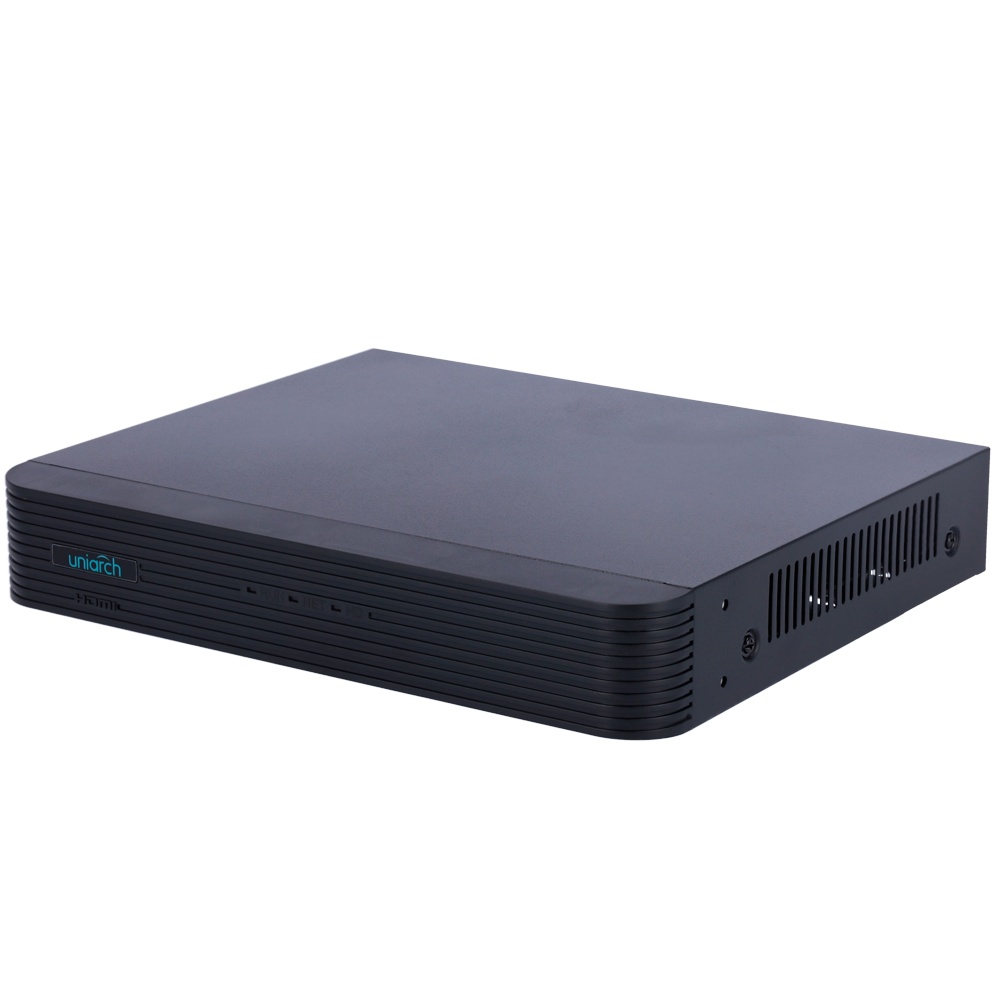

5N1 VideoGrador - UNIARCH - 8 CH HDTVI / HDCVI / AHD / CVBS + 4 Extra IP - Audio - Admits 1 hard disk
€56.13
(IVA included)
€45.64
(Without IVA)
Delivery cost is not included
Description
| Mark | Uniarch |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 8CH BNC |
| Hybrid configuration | Up to 8 IP channels (4mpx) replacing all BNC channels |
| Video exits | 1 HDMI Full HD, 1 VGA |
| Audio inputs | 1 RCA Channel |
| Audio exits | 1 RCA Channel |
| Bidirectional audio | Reusing the input/audio output |
| Display resolution | 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 |
| Maximum IP recording resolution | 4 MPX |
| Supported analog chambers | TVI / AHD: 5MP@12fps; 4MP@15fps; 1080p@30fps; 720p@30fps CVI: 4MP@15fps; 1080p@30fps; 720p@30fps |
| Main Stream recordings coding | TVI/CVI/AHD: 5Plite@6fps; 4mplite@8fps; 2mplite@15fps; 2MP@8fps; 720p@15fps |
| Extra Stream recording coding | D1@6fps; D1@8fps; D1@15fps; |
| Recording method | Manual, programmed, motion detection |
| Internal storage | 1 HDD SATA 3.5 "up to 6TB (not included) |
| External interface | 2 x USB (mouse and backup) / RJ45 10m / 100m / 1000m (Ethernet) / RS485 |
| Remote access | Web browser, CMS software (Ezstation), smartphone (EZVIEW/EZLIVE) |
| Food | DC 12 V / 8 W |
| Dimensions / Weight | 46 (AL) X 260 (AN) X 243 (FO) MM / 1 Kg |
