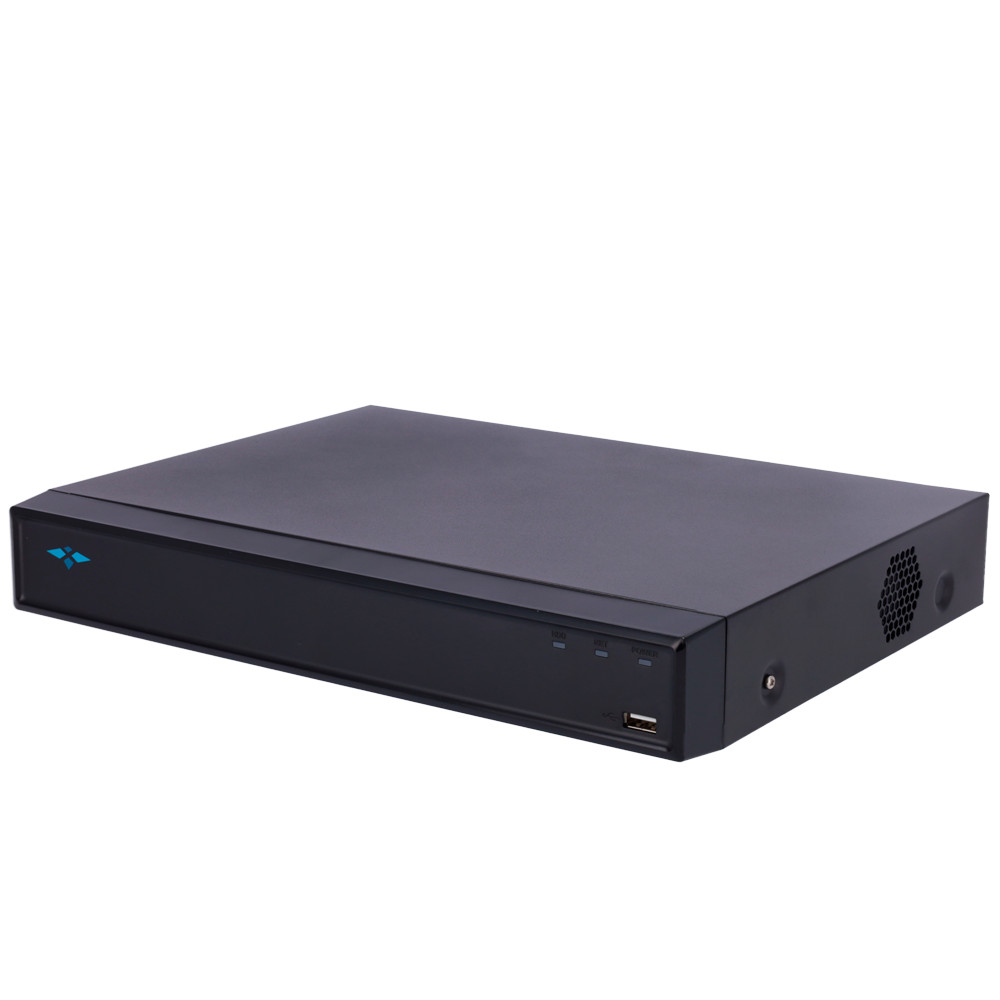

5N1 X -Security - 4 CH Analog (8MPX) + 4 IP (8MPX) - Audio | Alarms - 4K recording resolution (7fps) - 1 CH FACIAL RECOGNITION - 1 CH RECOGNIZATION HUMAN AND VEHICLES
€159.47
(IVA included)
€129.65
(Without IVA)
Delivery cost is not included
Description
| Mark | X-security |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 4 BNC channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | Up to 8 IP channels (8MPX), replacing all BNC channels |
| Video exits | 1 HDMI 4K, 1 VGA |
| Video/Audio compression | H.265+ / h.265 / h.264+ / h.264 |
| Display resolution | HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Total Band Width | 64 Mbps |
| Recording resolution | 8m (7fps) / 6m (10fps) / 5m (12fps) / 4K-N, 4MP, 3MP (15fps) / 4M-N or 1080p or 720p or 960H or D1 or CIF (25 / 30fps) |
| Main Stream coding | 8m (7fps) / 6MP (10fps) / 5MP (12fps) / 4K-N, 4MP, 3MP (15fps) / 4M-N, 1080p, 720p, 960h, D1, CIF (25 / 30fps) |
| Extra Stream coding | 960h (15fps) / D1, CIF (25 / 30fps) |
| Simultaneous multifunction | Pentaplex: direct, recording, reproduction, backup and remote access |
| Audio inputs | 4 RCA Channel |
| Audio exits | 1 RCA Channel |
| Bidirectional audio | Reusing the input/audio output |
| In/Oct alarms | 8/3 |
| Video Analysis | IVS: Facial Detection / Human and Vehicle Recognition / Line / Intrusion Crossing |
| Facial recognition | 1 Analog Channel of live face comparison |
| Intelligent Movement Detection | Up to 4 channels capable of classifying objectives between humans and vehicles |
| Recording method | Manual, programmed, motion detection, alarm |
| Backup | USB/network |
| Internal storage | 1 HDD SATA 3.5 "up to 10 tb (not included) |
| Communication | RS485 (PTZ) /2 x USB (rat and backup) /RJ45 10/100 (Ethernet) |
| Remote access | Browser (ActiveX), mobile application or PSS software |
| Food | DC 12V / 2A |
| Dimensions / Weight | 55 (AL) X 325 (LG) x 256.6 (FD) mm / 1.1 kg |
