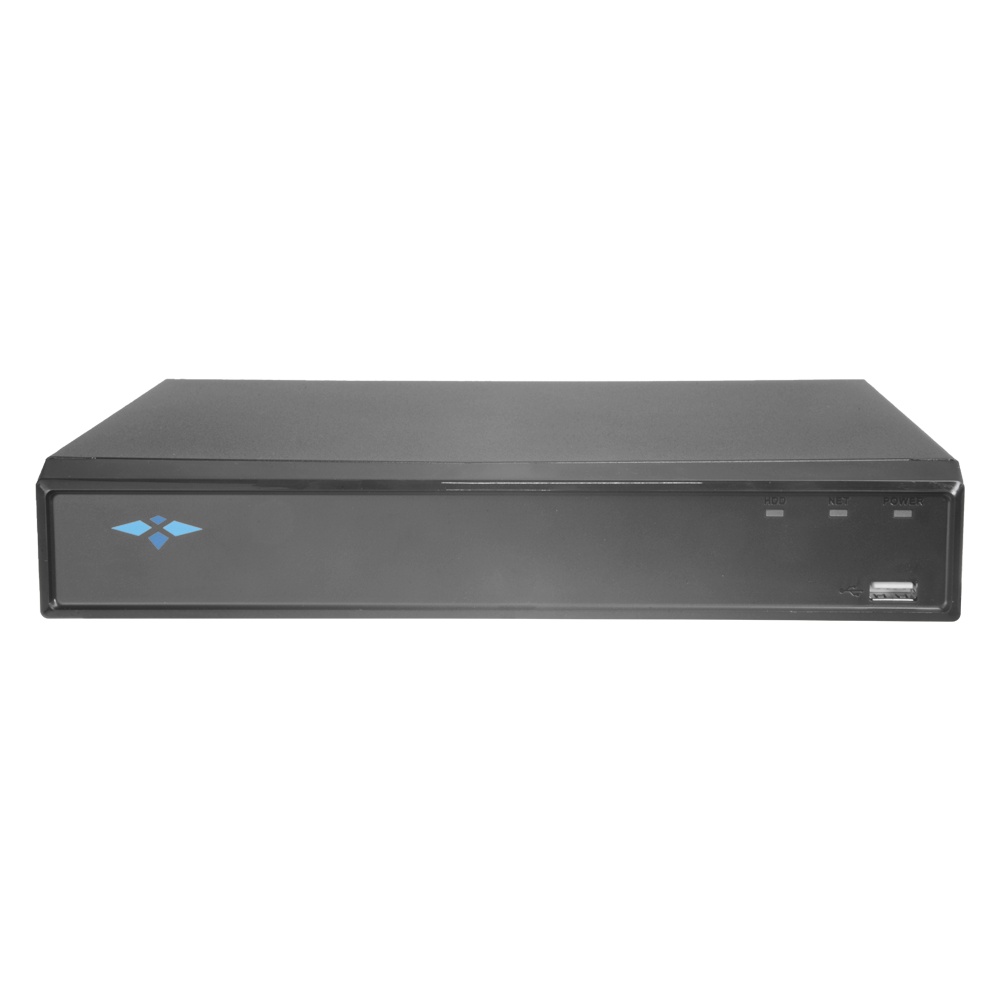

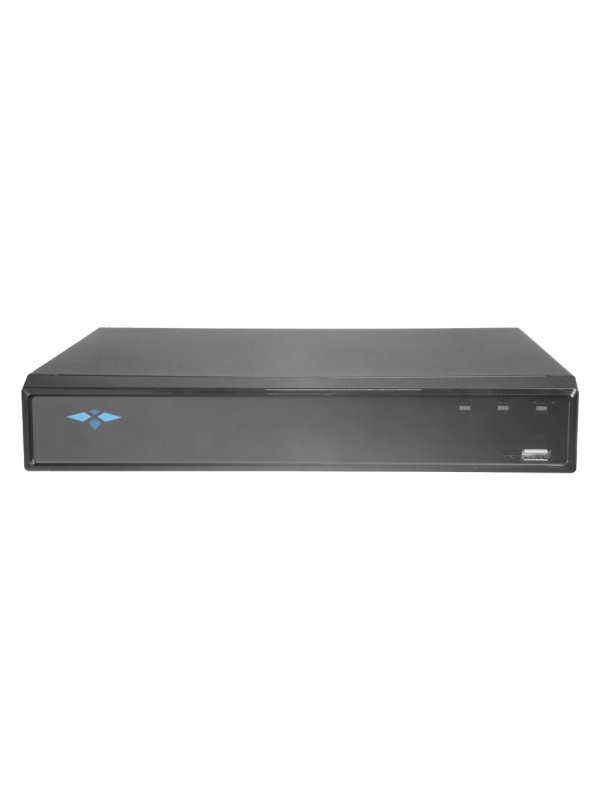

5N1 X -SECURITY VIDEER - 8 CH HDTVI/HDCVI/AHD/CVBS (4K) + 8 IP (8MPX) - Coaxial Audio - 4K Resolution (7fps) - 2 CH FACIAL RECOGNITION - 8 CH RECOGNIZATION AND VEHICLES
€193.91
(IVA included)
€157.65
(Without IVA)
Delivery cost is not included
Description
| Mark | X-security |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 8 BNC channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | Up to 16 IP channels (8MPX), replacing all BNC channels |
| Video exits | 1 HDMI Full HD, 1 VGA |
| Video/Audio compression | H.265+/h.265/h.264+/h.264 |
| Display resolution | HDMI: 4K, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Total Band Width | 128 Mbps |
| Codification | All channels: 4K (1 fps - 7 fps); 6MP (1 FPS - 10 FPS); 5MP (1 FPS–12 FPS); 4K-N, 4MP/3MP (1 SPF-15 FPS); 4m-n/1080p/720p/960h/d1/cif (1 fps-25/30 fps) |
| Double stream coding | 960h (1 fps - 15 fps); D1/CIF (1 fps - 25/30 fps) |
| Simultaneous multifunction | Pentaplex: direct, recording, reproduction, backup and remote access |
| Audio inputs | 8 BNC, 1 RCA Channel |
| Audio exits | 1 RCA Channel |
| Bidirectional audio | Reusing the input/audio output |
| Alarms | No |
| Video Analysis | IVs: Line Cross | Intrusion in Area | Abandoned Object | Faces detection IP mode, facial recognition and IVs cannot be activated at the same time |
| Facial recognition | Up to 2 analog channels of live face comparison |
| Intelligent Movement Detection | Up to 16 channels capable of classifying objectives between humans and vehicles |
| Recording method | Manual, programmed, motion detection, alarm |
| Backup | USB/network |
| Internal storage | 1 HDD SATA 3.5 "up to 16 tb (not included) |
| Communication | RS485 (PTZ) /2 x USB (rat and backup) /RJ45 10/100 (Ethernet) |
| Remote access | Browser (ActiveX), mobile application or PSS software |
| Food | DC 12V / 2A |
| Dimensions / Weight | 49 (AL) X 333 (LG) X 315 (FD) MM / 0.9 kg |
