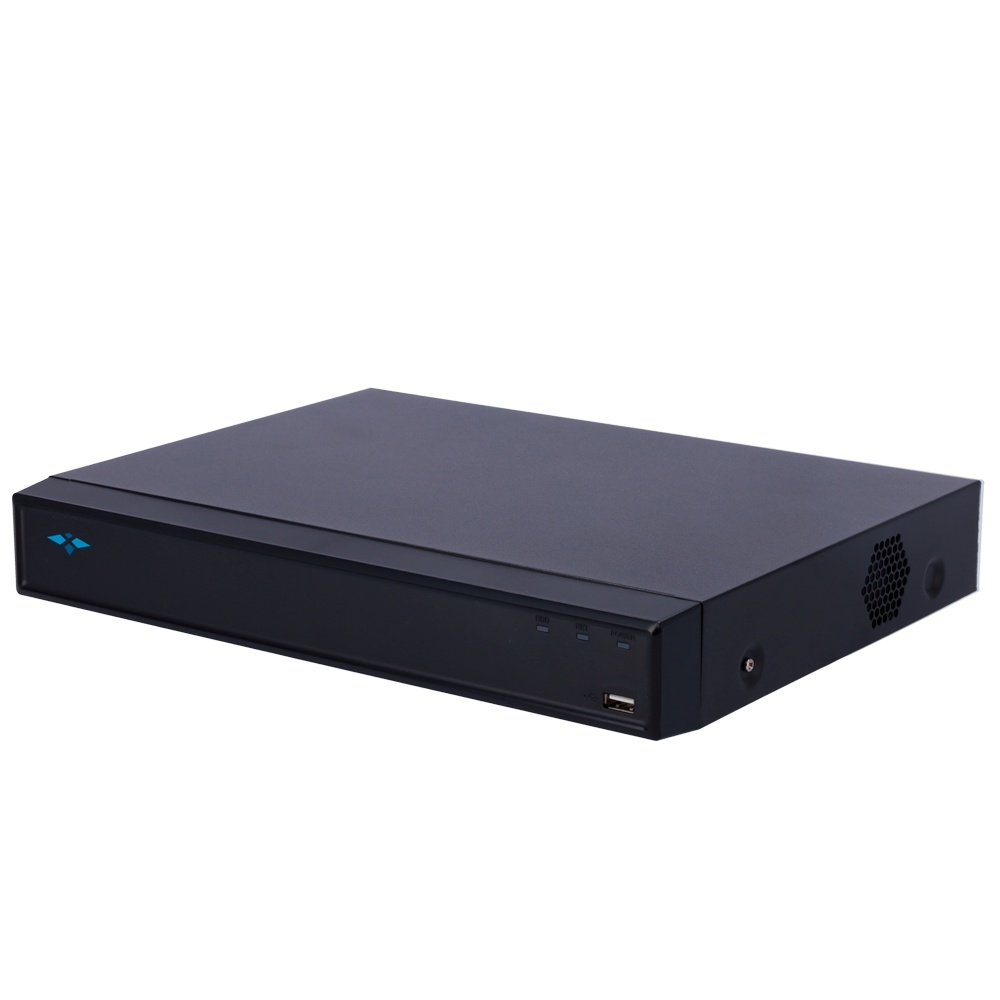

5N1 X -Security video - 8 CH HDTVI/HDCVI/AHD/CVBS (5MPX) + 4 IP (6MPX) - Coaxial Audio | Alarm - 5m -N recording resolution (10fps) - 1 CH FACIAL RECOGNITION - 8 CH RECOGNITION HUMAN AND VEHICLES
€172.23
(IVA included)
Delivery cost is not included
Description
| Mark | X-security |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 8 BNC channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | Up to 12 IP channels (6MPX), replacing all BNC channels |
| Video exits | 1 HDMI 1080p, 1 VGA |
| Video/Audio compression | H.265+/h.265/h.264+/h.264 |
| Display resolution | 1920x1080, 1280x1024, 1280x720 |
| Total Band Width | 64 Mbps |
| Recording resolution | 5 m-n, 4 m-n, 1080p, 1080n, 720p, 960h, d1, cif |
| Main Stream coding | 5m-n (10 fps); 4M-N/1080p (15 fps); 1080N / 720p / 960H / D1 / CIF (25/30 FPS) |
| Extra Stream coding | D1 / CIF (1 ~ 15 fps) |
| Simultaneous multifunction | Pentaplex: direct, recording, reproduction, backup and remote access |
| Audio inputs | 8 RCA / 8 Channel BNC Channel (coaxial audio) |
| Audio exits | 1 RCA Channel |
| Bidirectional audio | Reusing the input/audio output |
| In/Oct alarms | 8 In/ 3 Relay |
| Video Analysis | IVs: Line Cross | Intrusion in Area | Abandoned Object | Faces detection IP mode, facial recognition and IVs cannot be activated at the same time |
| Facial recognition | Up to 1 analog channels of live face comparison |
| Intelligent Movement Detection | Up to 8 channels capable of classifying objectives between humans and vehicles |
| Recording method | Manual, programmed, motion detection, alarm |
| Backup | USB/network |
| Internal storage | 1 HDD SATA 3.5 "up to 16 tb (not included) |
| Communication | RS485 (PTZ) /2 x USB (rat and backup) /RJ45 10/100 (Ethernet) |
| Remote access | Browser (ActiveX), mobile application or PSS software |
| Food | DC 12V / 2A |
| Dimensions / Weight | 55 (AL) X 325 (LG) X 257 (FD) mm / 1.2 kg |
