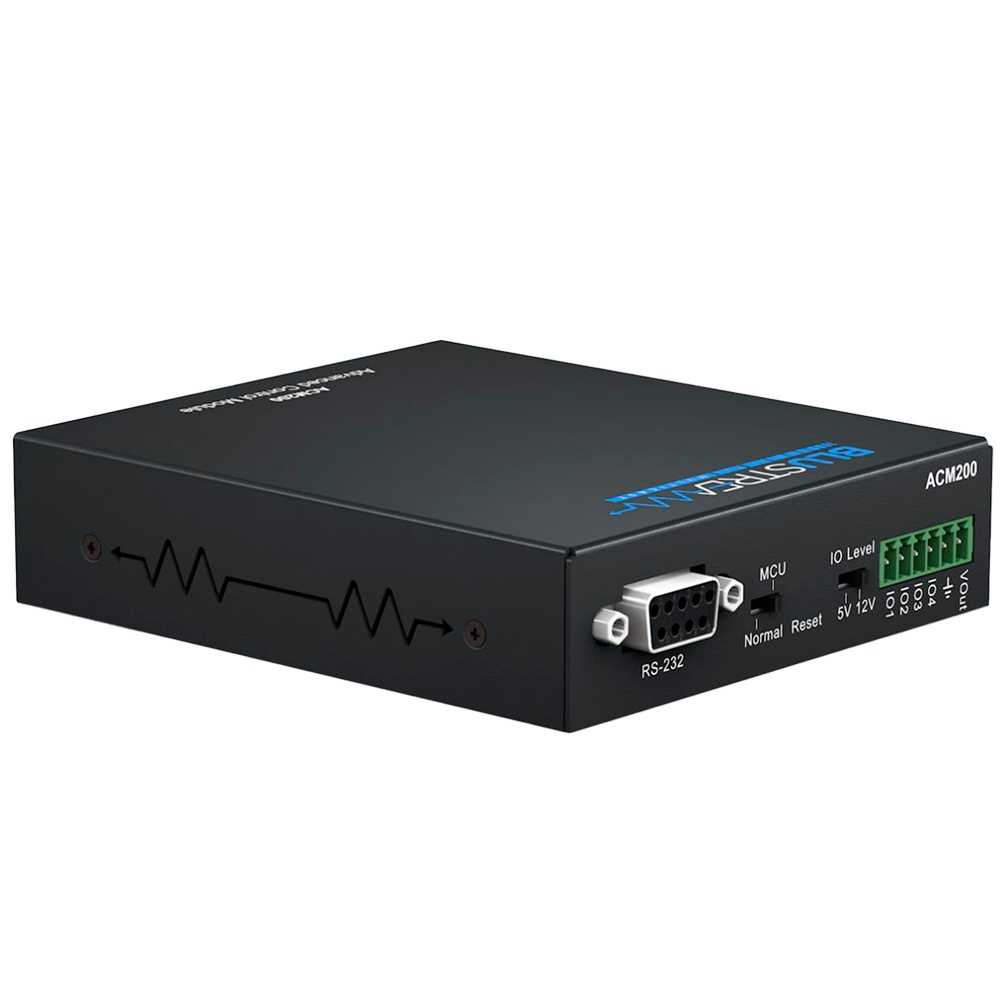

Advanced Control Module - Compatible with IP50 and IP200 series - Signal Management IV, RS232 and KVM - Video and Audio Sign Management
€372.52
(IVA included)
€302.86
(Without IVA)
Description
| Functionality | - Selection of lyrics through "Drag and Drop" - Video preview for active monitoring of the state of the system - Advanced Sign Management for independent IV, RS232, USB/KVM, audio and video - Automatic system configuration " - Video Wall for a 9x9 matrix (maximum) |
| Doors | - 2x LAN (RJ45) - 1x DB-9 Female (RS232) - 1x 6 -pin phoenix connector (rs232) - 1x 3.5mm (Jack Stereo) |
| Lan entrances | Connection of the existing network to the multicast video distribution network: - Best performance - No advanced network configuration - IP address separated by LAN connection - SIMPLIFIED TCP/IP control of the multicast system |
| RS232 Integration | Multicast System Control |
| Integration IV | Multicast System Control |
| Pope | - 4.0W (typical) - 4.5W (maximum load) |
| Food | 12V/2A |
| Control Applications | - iOS - Android |
| Dimensions | 96mm (AN) x 101mm (AL) x 26mm (FO) |
| Weight | 0.6kg |
| Working temperature | 0ºC ~ 40ºC |
