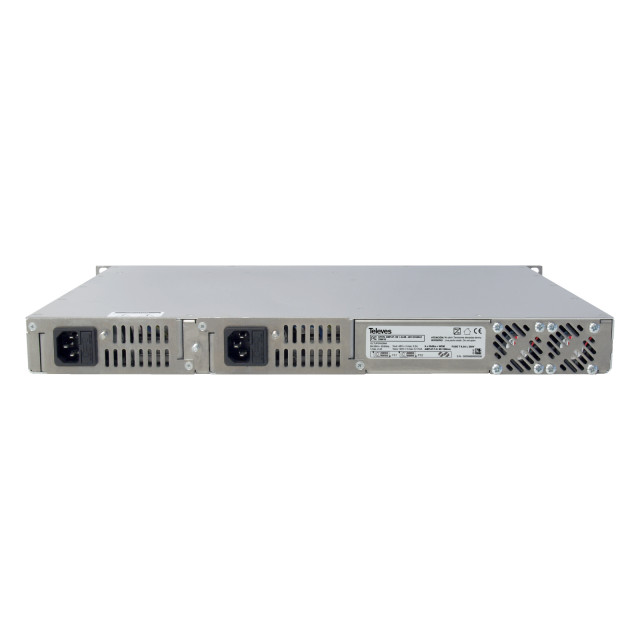

Amplifier/Optical Multiplexor "SC/APC" 20dbm (YEEDFA Technology) 9E: 8x1310/1490NM - 1x1550nm, 8s: 8x1310/1490/1550nm + doble -48vdc power supply. Installation: Rack 19 ", 1u (for OLT)

Description

Yedfa 8 optical amplifier 8 exits with WDM, 1u Rack 19 '. 1550nm, po 20dbm. This device consists of an amplifier, a WDM and a double power supply. Amplifies an optical sign of 1550nm with an output power of 20dbm. Based on Yedfa technology (erbio and iterbio fiber and fiber), it offers a high gain, greater optical power and a low noise factor. Endowed with WDM, it has 8 inputs of 1310/1490nm that are multiplexed with the 1550nm amplified signal, providing 8 outputs 1310/1490/1550nm, becoming dedicated to distributing RF video signals in large GPon optical networks. The hot replaceable double power supply allows the OLT512 unit to feed in a GPON system. Large optical output amplifier. Includes WDM for RF Overlay multiplexing with GPON signals. Input margin from -10 to +10dbm. State indicator LEDs. High efficiency power supply. Hot replaceable double source: Without interfering the service to the subscriber. -48VDC by module.
