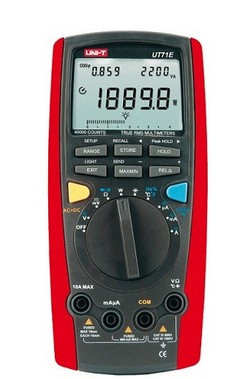

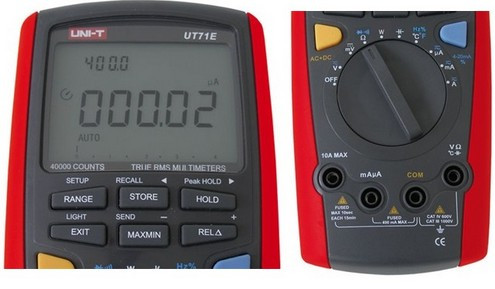

Automatic digital multimeter with USB interface - UNI -T

Description

Voltage DC: 400MV / 4V / 40V / 400V / 1000V
- Best precision: +/- (0.025% +5)
AC Voltage: 4V / 40V / 400V / 1000V
- Best accuracy: +/- (0.4% +30)
DC Current: 400µA / 4000µA / 40MA / 400MA / 10A
- Best accuracy: +/- (0.1% +15)
AC current: 400µA / 4000µA / 40MA / 400MA / 10A
- Best precision: +/- (0.7% +15)
Resistance: 400 ohm / 4 kohm / 40 kohm / 400 kohm / 4 Mohm / 40 Mohm
- Best accuracy: +/- (0.3% +8)
Capacitance: 40NF / 400NF / 4µF / 40µF / 400µF / 4MF / 40MF
- Best accuracy: +/- (1% +20)
Temperature: From -40 to +1000 ° C, from -40 to +1832 ° F
- Best accuracy: +/- 1% +30 (° C), +/- 1.5% +50 (° F)
Frequency: 40Hz / 400Hz / 4kHz / 40kHz / 400kHz / 4MHz / 40MHz / 400MHz
- Best precision: +/- (0.01% +8)
Work Cycle: 10 ~ 90%
- Best precision: +/- (1% +30)
Cycle 4-20ma: 0-100%
- Best accuracy: +/- (1% +50)
Energy measurement: +/- (2% +5)

Special Functions:
10th fuses reach
Current measurement alarm
SET UP Function
Self-alcance
Voltage/Current measurement AC+DC
Data Logging: 100
Diode
Beetle of Continuity
True RMS
Peak
Max/min mode
Relative
Data Hold
USB
Full Icon Display
Sleep mode
Low load notice
Input impedance: 10 Mohm, for voltages DC 400mv: 2.5 GOHM
Double display light
Max. Display 40000 (73 x 50mm)
Analog bar chart

General Characteristics:
Food: 9V Battery (6F22)
Size: 200 x 93 x 40mm
Weight: 384g
