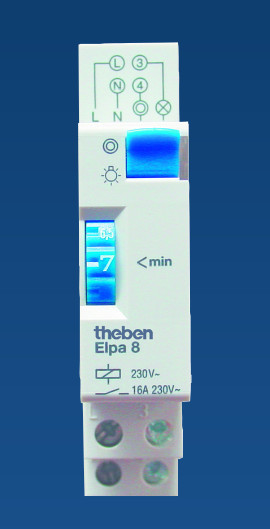

Automatic ELPA 8 ®

Description

- Automatic ladder, electromechanical

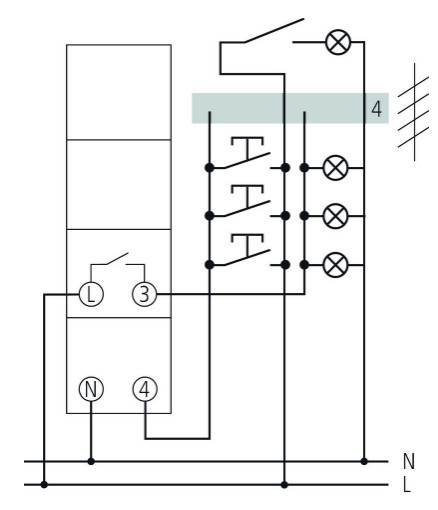

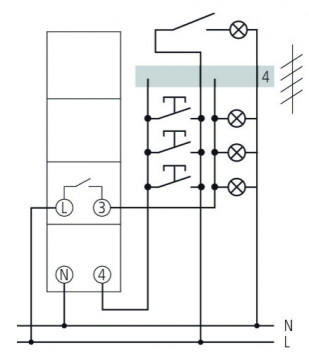

- 4 conductors with connection for floor lighting
- Connection of 3 conductors without floor lighting (no longer allowed
for new facilities)
- Possibility of receiving data
- No rest current consumption
- Switching switch for continuous light
- Maximum reliability through the synchronous engine drive
- simpler temporal regulation and direct reading of the time of
retardation on an absolute scale
- Precision mechanics and, through this, exact duration of switching
- Very high insensitivity to interference
- Simple summer/winter time correction
- Possibility of correction of the time towards the clock pointers and
in the opposite direction
- Duofix fittings with springs
- For 2 drivers respectively
- Wire or cord (with or without terminal insulator)
- Wire diameter: 0.5 - 2.5 mm²
- Drive button to release the fitting connection
- Pre-selection of switching
- Manual Switch with 3 Positions: Perm/Auto/Perm Off
- Indication of the commutation state
