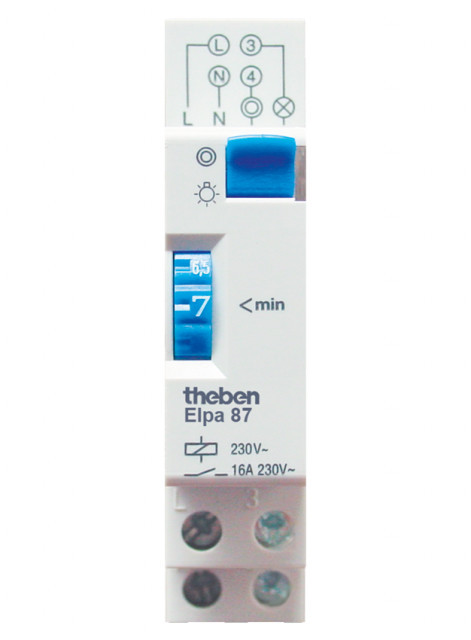

Automatic ELPA 87 ® Stairs
€23.21
(IVA included)
€18.87
(Without IVA)
Delivery cost is not included
Description
Function Description:
- Automatic staircase, electromechanical
- 4 Conductors with connection for floor lighting
- Connection of 3 conductors without floor lighting (is no longer allowed for new facilities)
- Possibility of receiving data
- Without consumption of rest current
- Switching switch for continuous light
- Maximum reliability through synchronous engine drive
- Simpler temporal regulation and direct reading of retardation time on an absolute scale
- Precision mechanics and, through this, exact duration of switching
- Very high insensitivity to interference
Technical data:
| Operation mode tension | 230 V AC |
| Frequency | 50 Hz |
| Width | 1 te |
| Mounting type | Din rail |
| Stand-by | ~ 0 W |
| Max power dissipation. | 0.7 W |
| Luminescent lamp load | 50 mA |
| Hour Adjustment Interval | 1 - 7 min |
| Binding type | 3/4 conductors |
| 3/4 conductors | Yes |
| Possibility of receiving data | After 30 s |
| Contact type | Closure |
| Amplitude of opening | > 3 mm |
| Switching | With potential (230 V) |
| Load of incandescent/halogen lamps | 2300 W |
| Load of fluorescent lamps (reduced loss bullets) | 2300 VA |
| Load of fluorescent lamps (reduced loss ballast) | 1300 VA 70 µF |
| Compact fluorescent lamps | 150 W |
| LED LAMP <2 W | 30 W |
| LED LAMP 2-8 W | 300 W |
| LED LAMP> 8 W | 300 W |
| Fluorescent lamp load (electronic ballast) | 600 W |
| Load of fluorescent lamps (reduced loss ballast) | 2300 VA |
| Switching power | 6 ax at 230 v ac, cos φ = 0.3, 16 a to 230 v ac, cos φ = 1 |
| Permanent light switch | Tilting switch |
| Box and insulation material | High resistant thermoplastics self-contextful temperatures |
| Ambient temperature | -10 ° C ... 50 ° C |
| Protection class | II |
| Type of protection | IP 20 |
