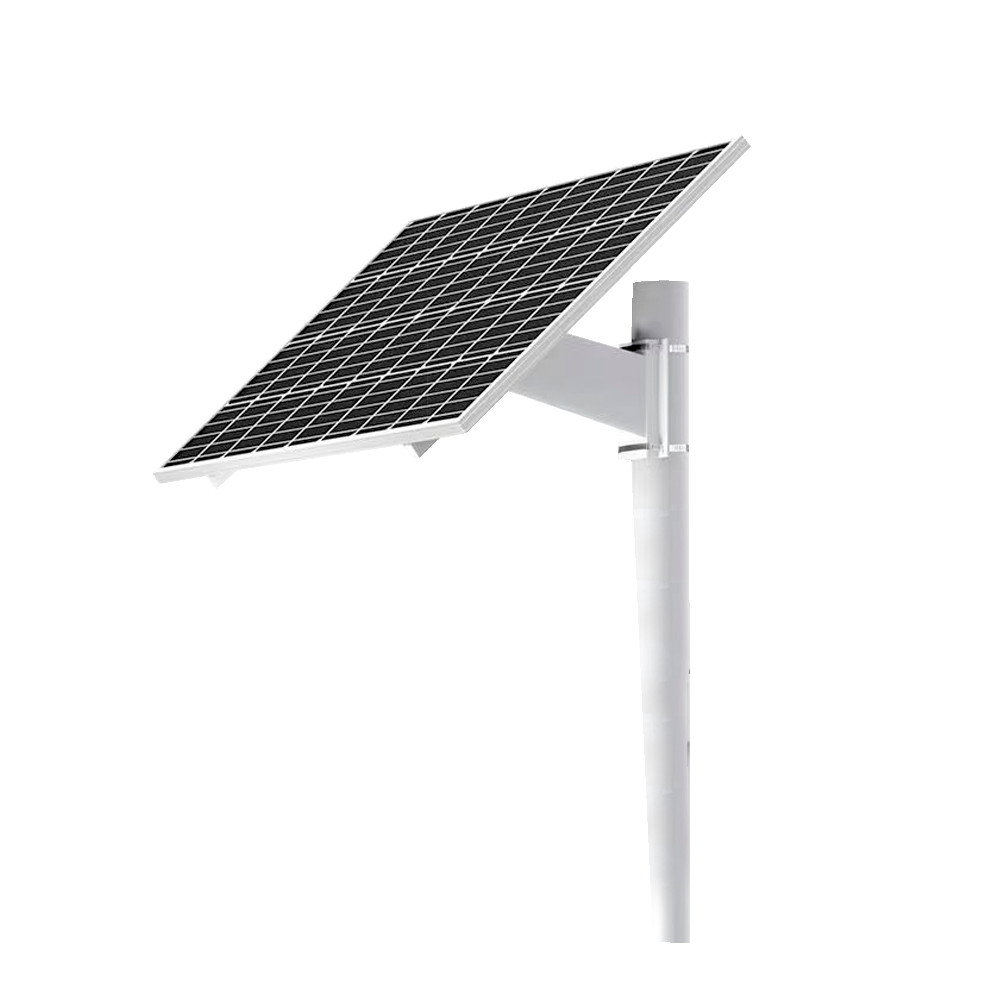

Autonomous power supply system for CCTV - 100W solar panel - Lifepo 512Wh lithium battery (40Ah) - Integrated MPPT regulator - Mast Anchor Support - RS -485 for communication
€574.09
(IVA included)
€466.74
(Without IVA)
Description
Technical information about the system | |
| Solar panel module | 100W |
| Battery | Lithium Lifepo 512Wh |
| Solar input voltage | 18V |
| Load voltage | 9 ~ 12.6V |
| Maximum input power | Up to 150W in total |
| Maximum current load | 10th |
| Maximum output power | 40W |
| Regulator | Integrated MPPT |
| Communication | RS485 (for integration with third parties). Provides all system information, such as load level, system state or power consumption |
| Output voltage | 12V Integrated DC regulator (with default connector compatible with CCTV chambers) |
| Support | Support for anchoring a mast or a vertical infrastructure |
Solar panel | |
| Power | 100 W |
| Cells | 156 Mono-Crystalline |
| Optimal tension | 18V |
| Optimal operating current | 5.55a |
| Short circuit tension | 6.11V |
| Open circuit voltage | 21.24V |
| Glass thickness | 3.2mm |
| Power Tolerance (W) | ± 3% |
| Maximum load capacity | 60 m/s (5kg/sg.m) |
| Permitted hail load | 23m/s, 7.53g |
| Efficiency | 21.6% |
| Temperature range | -20ºC ~ 85ºC |
| Module dimensions | 870 (LG) x 30 (AL) x 670 (PF) mm |
| Weight | 25.65 kg (with battery) |
| Degree of protection | IP67 |
Battery | |
| Material | Lifelo |
| Capacid | 40AH (512Wh) |
| Nominal tension | 12.8V |
| Operating temperature | Load: 0 ° C to 65 ° C (32 ° F to 140 ° F) Discharge: -30 ° C to 65 ° C (-22 ° F to 140 ° F) |
| Cycles | > 2000 |
| Battery size | 205 (LG) X 68 (AL) X 112 (PF) MM |
| Degree of protection | IP67 |
| Maximum output power | 40W |
| Maximum output power | 100W |
