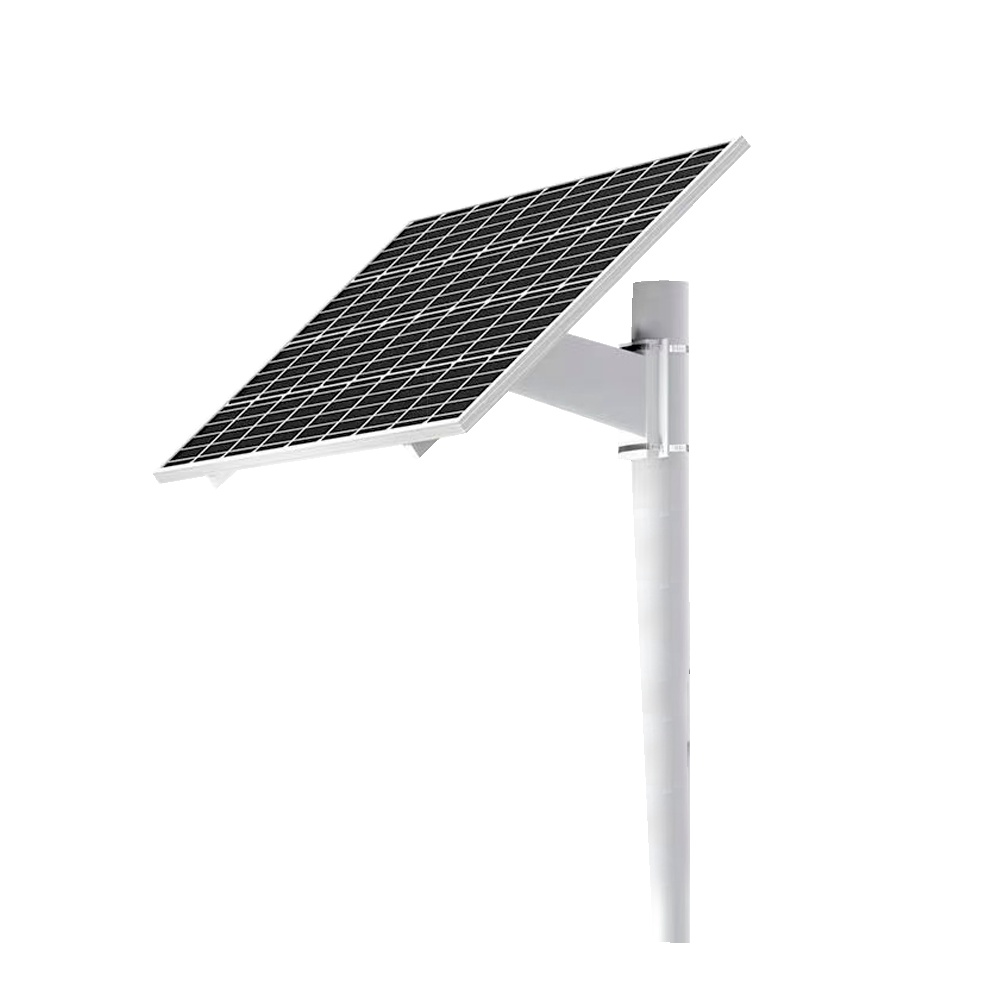

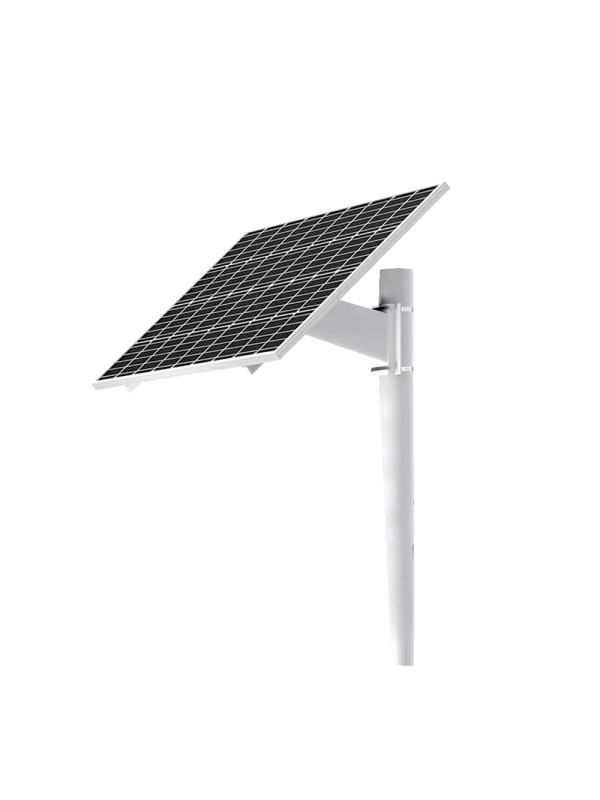

Autonomous power supply system for CCTV - 60W solar panel - Lifepo 256Wh Lithium Battery (20AH) - Integrated MPPT Regulator - Mast Anchor Support - RS -485 for Communication
€338.08
(IVA included)
€274.86
(Without IVA)
Delivery cost is not included
Description
Technical information about the system | |
| Solar panel module | 60W |
| Battery | Lithium Lifepo 256Wh |
| Solar input voltage | 18V |
| Load voltage | 9 ~ 12.6V |
| Maximum input power | Up to 120W in total |
| Maximum current load | 10th |
| Maximum output power | 40W |
| Regulator | Integrated MPPT |
| Communication | RS485 (for integration with third parties). Provides all system information, such as load level, system state or power consumption |
| Output voltage | 12V Integrated DC regulator (with default connector compatible with CCTV chambers) |
| Support | Support for anchoring a mast or a vertical infrastructure |
Solar panel | |
| Power | 60 W |
| Cells | 156 Mono-Crystalline |
| Optimal tension | 18V |
| Optimal operating current | 3.33a |
| Short circuit tension | 3.66V |
| Open circuit voltage | 21.24V |
| Glass thickness | 3.2mm |
| Power Tolerance (W) | ± 3% |
| Maximum load capacity | 60 m/s (5kg/sg.m) |
| Permitted hail load | 23m/s, 7.53g |
| Efficiency | 21.6% |
| Temperature range | -20ºC ~ 85ºC |
| Module dimensions | 680 (LG) x 30 (AL) x 510 (PF) mm |
| Weight | 13.65 kg (with battery) |
| Degree of protection | IP67 |
Battery | |
| Material | Lifelo |
| Capacid | 20ah (256Wh) |
| Nominal tension | 12.8V |
| Operating temperature | Load: 0 ° C to 65 ° C (32 ° F to 140 ° F) Discharge: -30 ° C to 65 ° C (-22 ° F to 140 ° F) |
| Cycles | > 2000 |
| Battery size | 205 (LG) x 40 (AL) x 100 (pf) mm |
| Degree of protection | IP67 |
| Maximum output power | 40W |
| Maximum input power | 100W |
