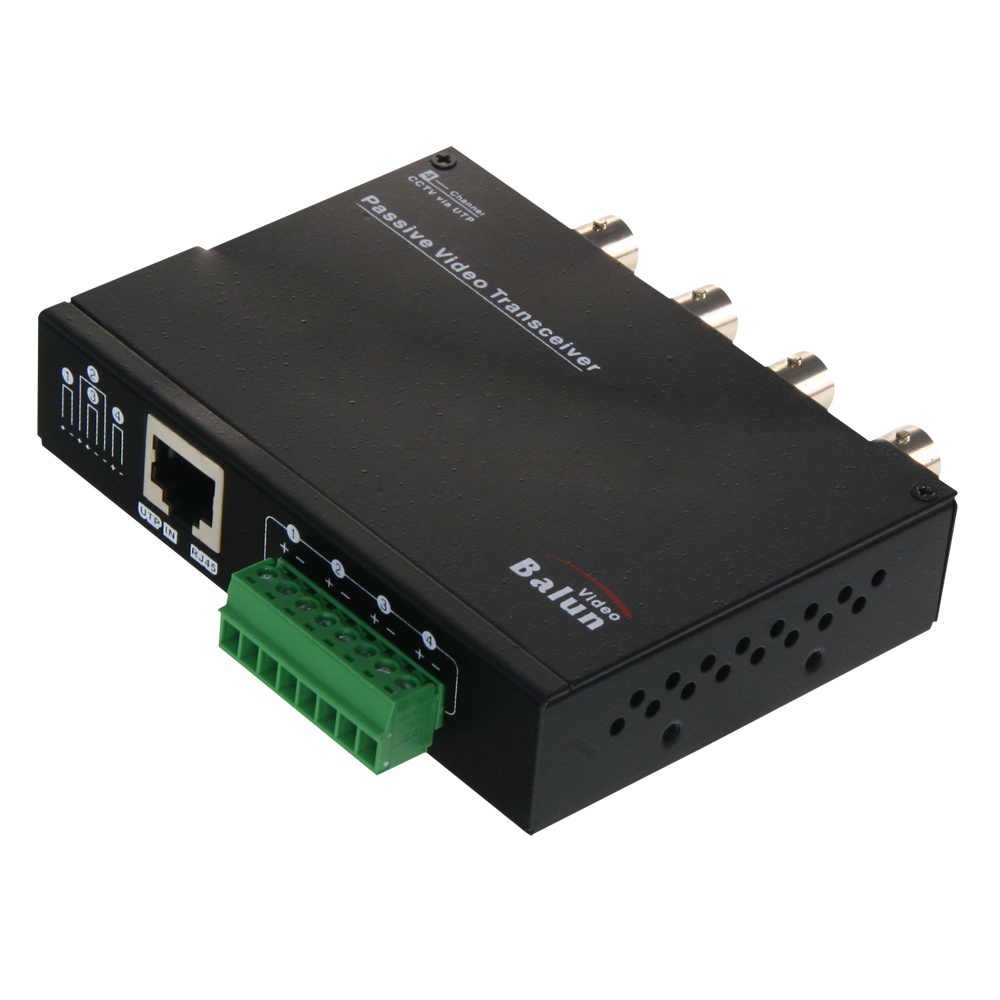

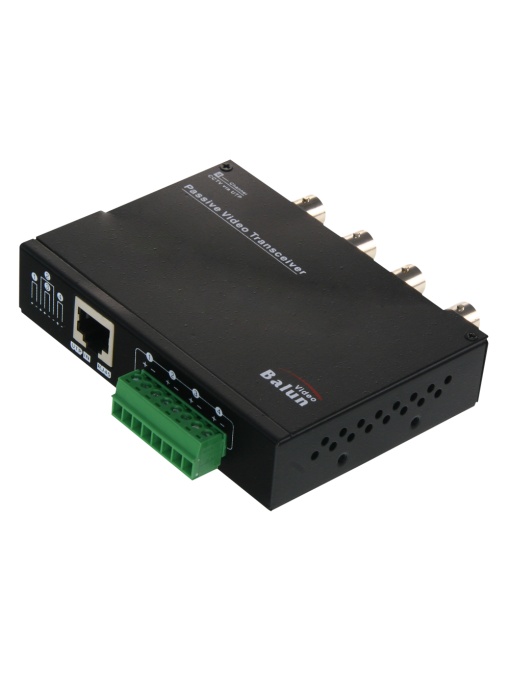

Balun Video for HDTVI / HDCVI / AHD / CVBS - 4 Passive Channels - Includes 4 BA612P -HAC - BNC and RJ45 connection - range: 180 ~ 440 m
€20.41
(IVA included)
€16.60
(Without IVA)
Delivery cost is not included
Description
| TX / RX output input | 4 video BNC connectors for video |
| TX Output / RX Input | 1 RJ45 connector or 4 Borne connectors for UTP Cat5 cable |
| Bandwidth | DC up to 42 MHz |
| Video format | NTSC, PAL, Dry |
| Impedance | BNC 75 Ω, UTP 100 Ω |
| Transmission distance | HDTVI 200/200/200/200 m (720p/1080p/4 MPX/4K), HDCVI 400/200/200/200 m (720p/1080p/4 MPX/4K) AHD 300/200/200 m (720p/1080p/4 MPX), CVBs 300 m |
| Food | Passive (not need) |
| Dimensions | 25 (AL) X 102 (LG) X 90 (FD) MM |
| Weight | 200 g |
