BFT KIT PHOBOS AC B50 230V 500kg 5 meters
€699.00
/ uni
(IVA included)
€568.29
/ uni
(Without IVA)
Description

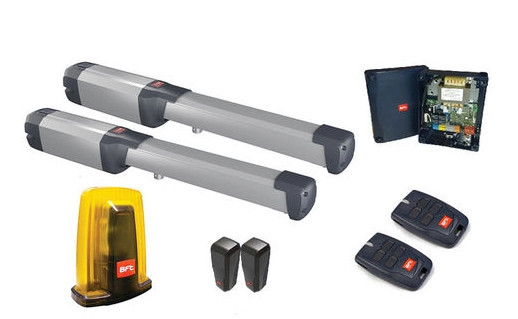

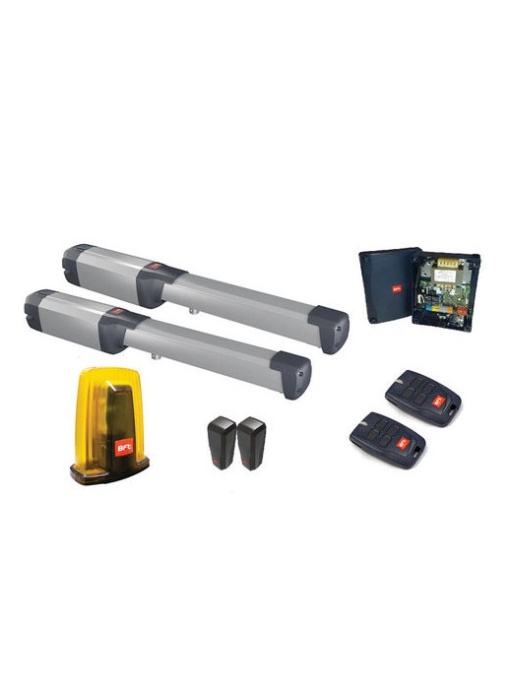

Full 230 V kit for sliding gates up to 500 kg weight and 5 m long.
| Environmental conditions | -20 ÷ 55 ° C |
| Type of End of Course | working time |
| Engine voltage | 230 V |
| Command center | Rigel 6. Alena SW2 |
| Degree of protection | IP44 |
| Softening | Yes |
| Absorbed power | 210 W |
| Operator Weight | 7.7 kg |
| ACTUATOR WEIGHT | 7.7 kg |
| Shock reaction | Electronic friction |
| Thrust and Traction Force | 2000 N |
| Operator Typology | Electromechanical Batty |
| Interconnectivity | no |
| Blockade | Mechanic |
| Useful System Course | 470 mm |
| MAX WEIGHT. Door Sheet/Gate | 500 kg |
| Unlock | Custom key |
| Maximum angle | 130 ° |
| Max width. Door Sheet/Gate | 5 m |
| Max. Opening Cycles per hour | 30 |
| Movement Time (90 °, excluding slowdown, with maximum gate size and weight) | Approx. 22 s |
| Maximum gate panel length without electric lock | 3 m |
| Feed sheet | 230 V |
P93513300002- 2uni
D11381100004 - 1UNI
D11409300002 - 1UNI
P111782 - 1UNI
BFTMITTO4 - 2UNI
