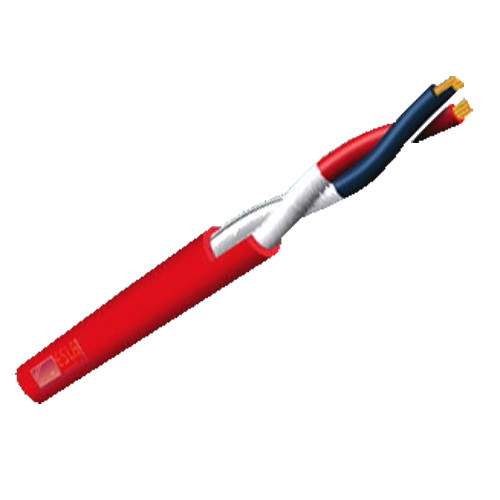

Cable coil Armored Armored - Fire Resistant RF 120 minutes - 500 meter coil - Copper Conductor 2x2.5mm2 - CPR CCA -1SB Certificate, A1, D1 - Certificate EN 50575 - Resistance 8.3 Ω/km
€956.81
(IVA included)
€777.90
(Without IVA)
Description
| Length | 500 m |
| Inner conductor | Flexible polished copper class 5 2.5mm2 |
| Isolation | CR1 ceramizant silicone fire resistant 3.4mm |
| Active time to fire | Constructive Resistance to Fire Exposure RF 120 minutes Resistance of service to fire exposure pH 90 minutes |
| Colors | Red and Black - More than 25 laps/meters |
| Screen | Mylar aluminum tape to the 96 % RFI / CUSN 7x0.20 RFI / Drainage Wire |
| Exterior coverage | 8.3mm Halogen Free Eva Polyolefine |
| Resistance | 8.3 Ω/km |
| Working tension | 500V |
| Capacity | 98 pf/m |
| Working tension | -40º ~ +70º |
| Certification | CPR (CCA -1SB, A1, D1), UNE EN 50575, UNE EN 60332-1-2, UNE EN 50399, UNE EN 61034-2, UNE EN 60754-2 |
