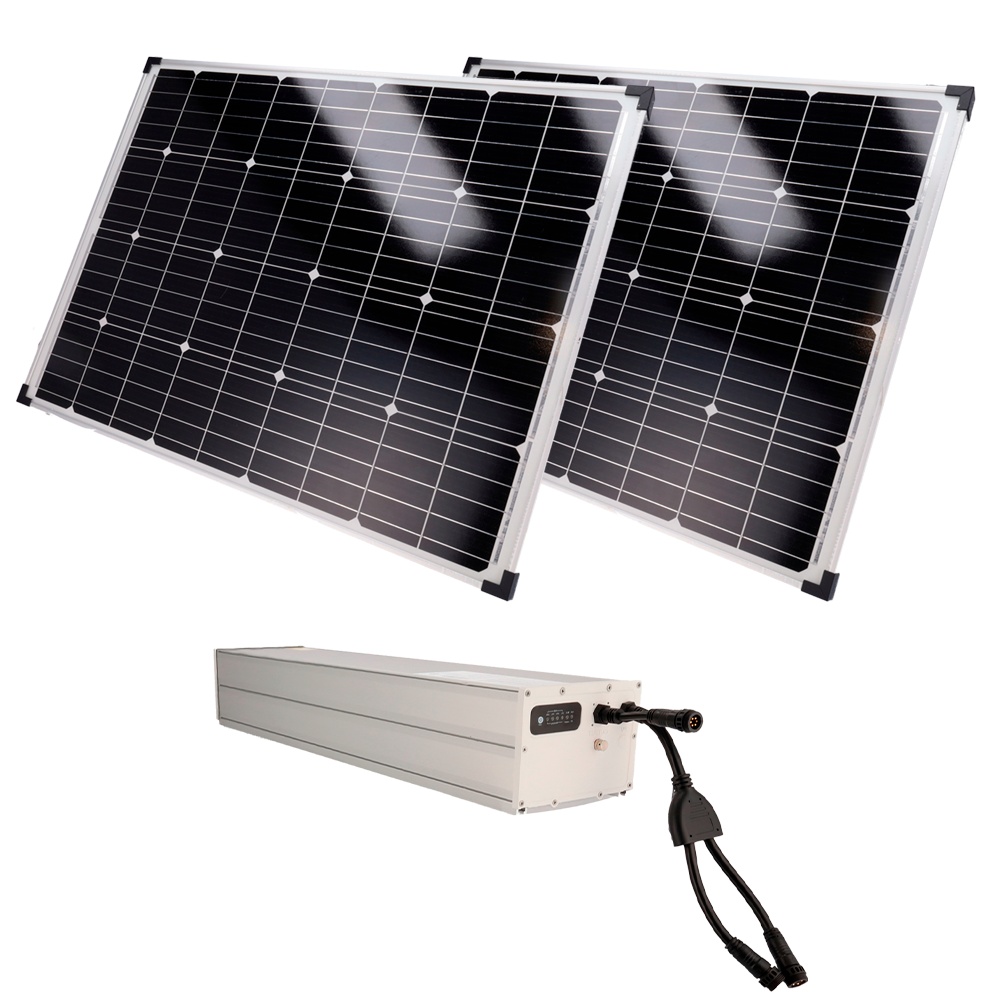

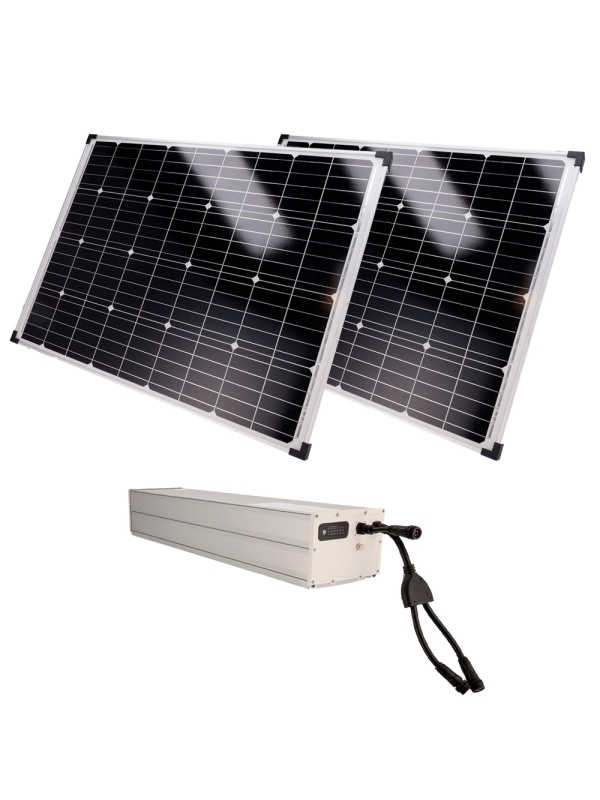

CCTV Power Supply Autonomous System - 2x 200W Solar Panel - LIFEPO4 Battery 2560Wh (200Ah) Exit 12/24VDC [%VAR%] - Integrated MPPT Regulator - Mast Anchor Support - RS -485 for Communication
€1,428.84
(IVA included)
€1,161.66
(Without IVA)
Description
Technical information about the system | |
| Solar panel module | 2 x 200W |
| Battery | Lithium Lifepo4 2560Wh |
| Solar input voltage | 18V |
| Load voltage | 14.6V |
| Maximum input power | 500W |
| Maximum load current | 8th |
| Maximum output power | 80W (12V), 48W (24V) Total 80W |
| Regulator | MPPT Integrated with Exit 12/24 VDC |
| Communication | RS485 (for integration with third parties). Provides all system information, such as load level, system state or power consumption |
| Output voltage | 12/24VDC Integrated Controller (with Jack Standard connector compatible with CCTV chambers) |
| Support | Support for anchoring a mast or a vertical infrastructure |
| Mast diameter | 100 - 200 mm |
| Dimensions | 2000 x 1036 x 724 mm |
| Weight | 67.3 kg (with battery) |
Solar panel | |
| Power | 2 x 200W |
| Cells | 166 Mono-Crystalline |
| Optimal tension | 18V |
| ISC (short circuit current) | 22.2a |
| You (open circuit voltage) | 22.2V |
| Glass thickness | 3.2mm |
| Power Tolerance (W) | ± 3% |
| Maximum load capacity | 60 m/s (5kg/sg.m) |
| Permitted hail load | 23m/s, 7.53g |
| Efficiency | 21.8% |
| Temperature range | -40ºC ~ 85ºC |
| Module dimensions | 1223 (L) x 38 (a) x 878 (p) mm / panel |
| Degree of protection | IP67 |
Battery | |
| Material | LIFEPO4 |
| Capacid | 200Ah (2560Wh) |
| Nominal tension | 12.8V |
| Operating temperature | Load: 0 ° C to 60 ° C (32 ° F to 140 ° F) Discharge: -30 ° C to 60 ° C (-22 ° F to 140 ° F) |
| Cycles | > 2000 |
| Degree of protection | IP67 |
| Load voltage | 14.6V |
| Output voltage | 12/24 VDC |
| Load current | 20a |
| Maximum output power | 80W (12V), 48W (24V) Total 80W |
| Maximum input power | 500W |
