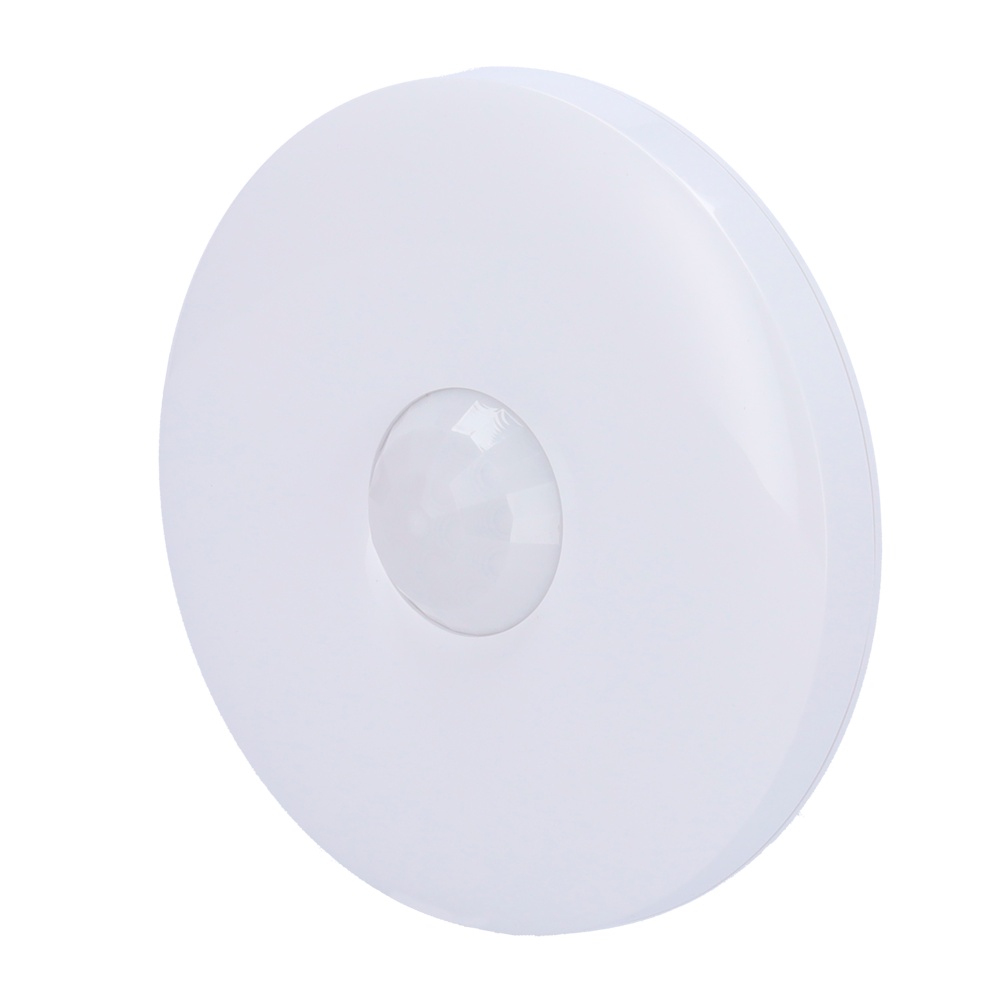

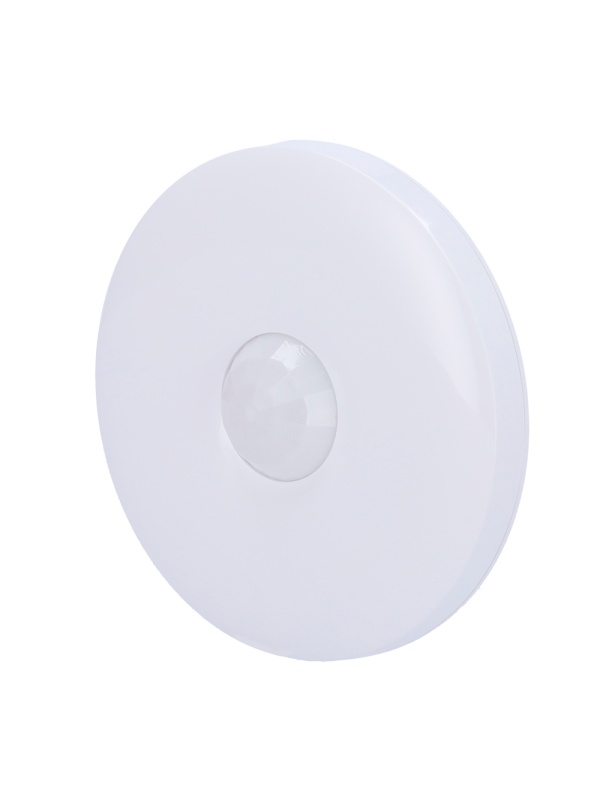

Ceiling Detector with Double Technology Wire - Detection Range 12 m - End Line Resistances (EOL) selectable - Food 9 ~ 16 VDC - Interior Use - Certificate Grade 2
€34.86
(IVA included)
€28.34
(Without IVA)
Delivery cost is not included
Description
| Mark | Hikvision |
| Model | DS-PDCL12DT-EG2 |
| Degree of security | Grade 2 |
| Technology | Passive and microwave infrareds |
| Microwave Frequency | 24 GHz |
| Detection range | 12 meters |
| Detection angle | 360º |
| Detection zones | 172 |
| Installation height | From 2.4 to 4 meters |
| Installation | Ceiling |
| Sensitivity | Automatic, low |
| Immunity to animals of allegation | Unavailable |
| Temperature digital compensation | Available |
| Anti-opening | Available (front) |
| Alarm outlet | Usually closed |
| LED indication | Alarm: Blue Activated Pir: Green Microwave: Red |
| Line end resistances (EOL) | Available, selectable with jumpers |
| Alarm resistances | 1k, 2k2, 4k7, 5k6, 8k2 |
| Tamper resistances | 1k, 2k2, 4k7, 5k6 |
| Cabbada exits | Alarm and Tamper |
| Food | 9 ~ 16 VDC (maximum consumption). 100 ma) |
| Temp. operation | -10 ° C ~ +55 ° C |
| Moisture | 10 % to 90 % |
| Application scenarios | Interior |
| Dimensions | 120 (Ø) × 33.2 (FO) mm |
