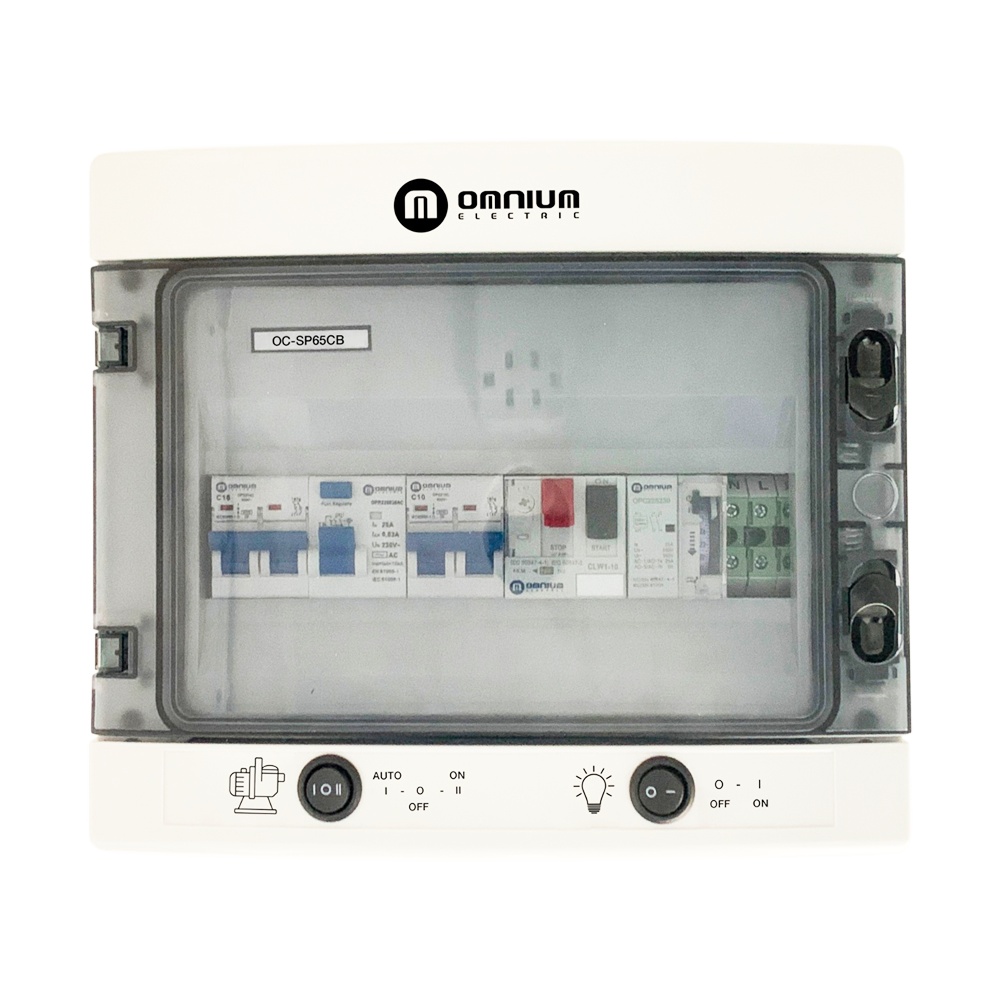

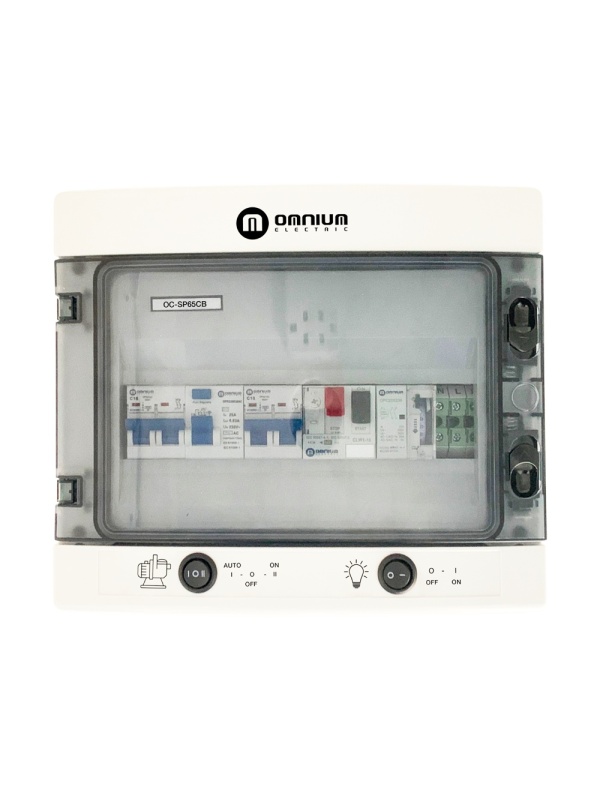

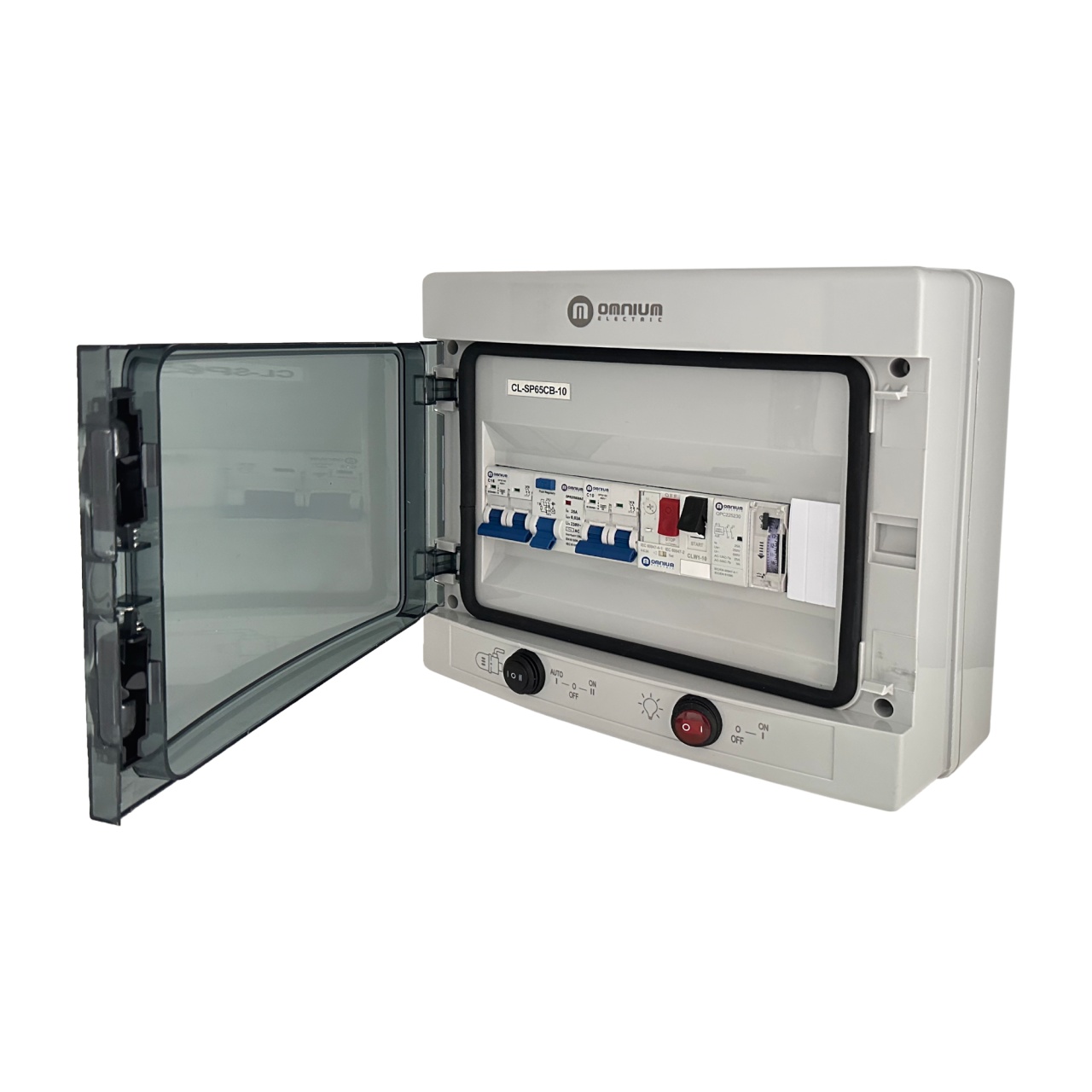

CL -SP65CB -10 - SPA Control Box (with Toroidal Transformer, 50VA to 50W, IP65, ABS, 4 - 6.3A, 2.2kW Max. (0.5 - 1 hp/hp)

The pool panel is a complete solution for the electric control of your pool. With a 12V and 50W transformer, this panel offers efficient and safe lighting.

The panel has an integrated clock that allows you to program your pool's operating schedules. With this function, you can enjoy your pool at the times you prefer, without worrying about manually turning on or off the systems.

In addition, the contact in the box ensures a reliable and stable connection for accurate and safe control of your pool. You can be rested knowing that your pool is protected and working properly.

Clock, engine protection and contactor included.

Character

Toroidal 12V Toroidal Transformer

Protection: IP65

Lighting: 50W, LED or halogen.

Independent lighting and engine control.

Installation Mode:

1.Motor

Turn on the neutral, phase and mass wires from the engine to the corresponding terminal.

2.Ilimination

Turn the neutral wire from the transformer to the terminal indicated on the OPS210C switch.

Connect the transformer phase cable to the free space of the reusable connection block.

Turn the earth wire to terminal “E” indicated.

3. Food

Feed the panel, connecting neutral and phase to the OPS216C switch.

Call the Earth to the terminal "and" as indicated.
