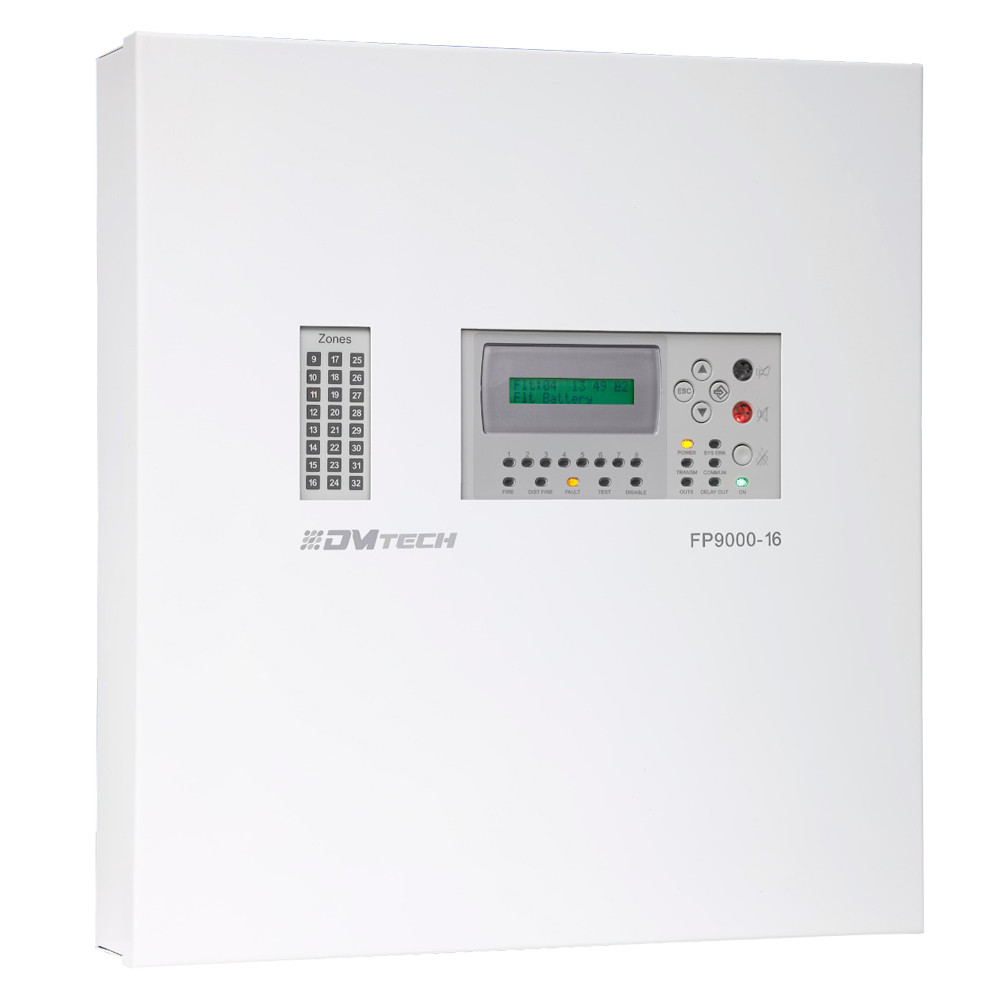

Conventional 16 zones with LCD screen - 2 siren output - 2 alarm and failure outputs and 6 configurable relay outputs - repeat output - up to 30 detectors per zone - automatic line resistance detection line
€350.84
(IVA included)
€285.23
(Without IVA)
Description
| Primary feed | Source of switching 187-252V AC 50-60 Hz 65W Max. |
| Secondary feed | 2 12VDC batteries (up to 18 ah). Guarantees minimum 72 hours of duration. |
| Available languages | Spanish, English, Portuguese, Italian, French and German. |
| Number of zones | 16 zones, up to 30 detectors per zone. |
| Siren exits | 2 24vdc siren exits. Independent and monitored open collector outputs |
| Relay exits | 8 Relay outputs: 1 alarm output, 1 failure output and 6 configurable relay outputs. All admit 30vdc 3rd max. |
| Line end resistance | Fully monitored zones by line end resistance (4.7K) |
| Auxiliary output voltage | 24VDC. Protected with rearmable electronic fuse 1.85a |
| Protection index | IP30 |
| Temperature | -5ºC ~+45ºC |
| Material and color | ABS, Color: White |
| Dimensions | 370 x 410 x 80 mm |
| Weight | 2.5kg |
| Recommendable cable | Fire cable with a minimum section of 1.0mm (18AWG). |
