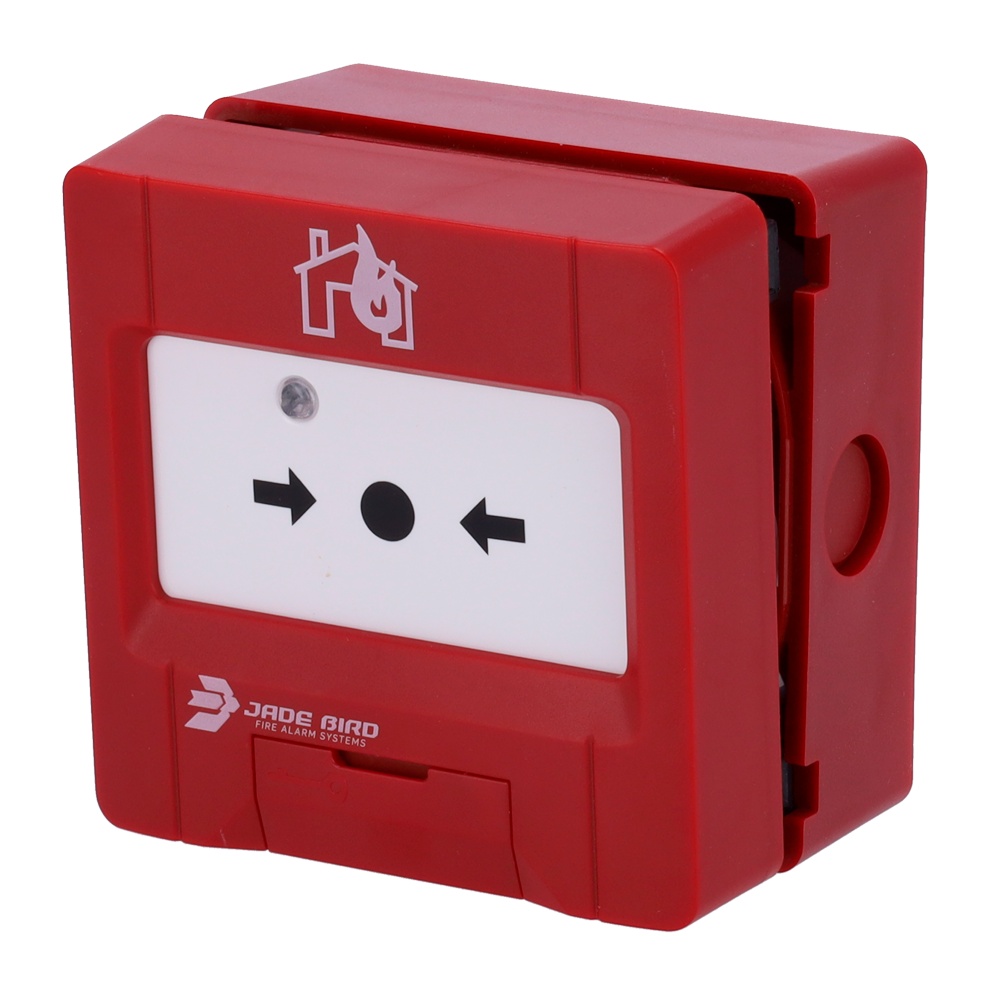

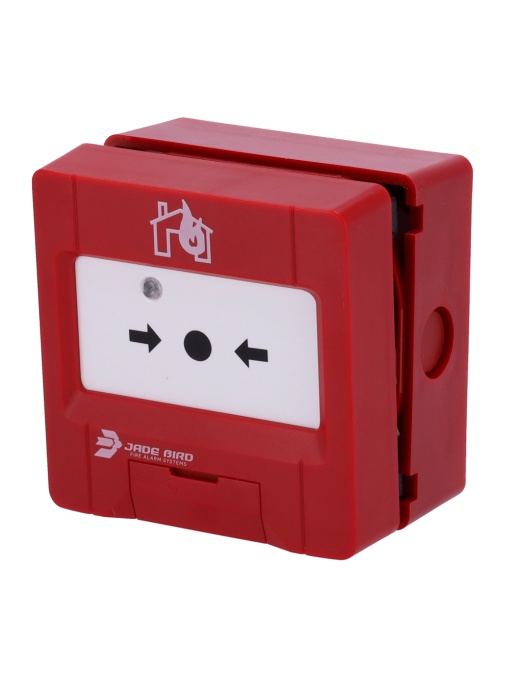

Conventional Pulse button Jade Bird - Remarrable - Luminous and Visual Activation Indicator - Auxiliary Dry Contact - Selectable Alarm Resistance 680/470 Ω - Certificate En 54-11
€7.09
(IVA included)
€5.76
(Without IVA)
Delivery cost is not included
Description
| Mark | Jade Bird |
| Type | Reinicitable manual pulsator |
| Working tension | 19-28 VDC (JBE Protocol Pulse Width) |
| Connection | 2 wires |
| Cable size | Braided pair without mesh 0.5 - 2.5 mm² |
| Standby Consumption | ≤0.3 ma @24 V |
| Alarm consumption | ≤1.0 ma @24 V |
| Dry contact | 0.1 A / 30 VDC |
| Temp. work | -10ºC to 55ºC |
| Temp. storage | -20ºC to 60ºC |
| Humidity | ≤ 95% Rh (without condensation) |
| LED indicator | Rest: Intermittent with lace grouping Alarm: Fixed ignition |
| Dimensions (HXWXDN) | 90 mm × 90 mm × 52 mm |
| Degree of protection | IP40 |
| Weight | 0.16 kg |
| Standard | EN 54-11 |
