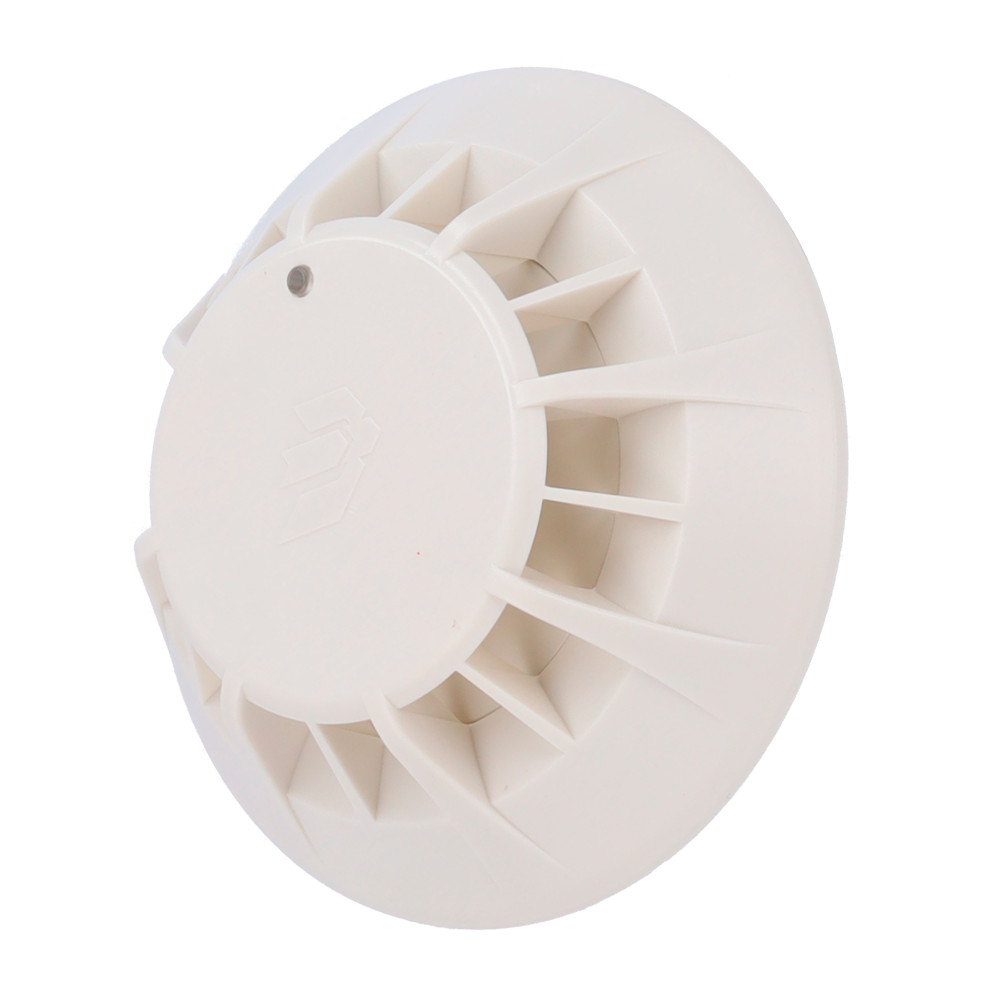

Conventional Thermal Detector Jade Bird - Sensitivity and Adjustable Classes (A2R, A2, A2S) - LED with 360 ° Vision - Remote Indicator Output - Does not include base - Certified EN 54-5
€5.87
(IVA included)
€4.77
(Without IVA)
Delivery cost is not included
Description
| Mark | Jade Bird |
| Type | Thermal detector |
| Category | Selectable A2, A2R and A2S |
| Working tension | 16-30 VDC |
| Connection | 2 wires |
| Wiring | Braided pair without mesh 0.5 - 2.5 mm² |
| Standby Consumption | ≤0.3ma @24 V |
| Alarm consumption | ≤1 ma @24 V (up to 8 mA of remote indicator) |
| Temp. work | -10 to +60ºC |
| Temp. storage | -20 to +60ºC |
| Humidity | ≤ 95% hr (40 ± 2ºC) (without condensation) |
| Coverage | 20 to 30 m2 |
| LED indicator | Rest: Intermittent with lace probing Alarm: Fixed ignition |
| Dimensions (Øxh) | 100 mm × 41 mm |
| Weight | 0.1 kg |
| Degree of protection | IP40 |
| Compatible bases | JBE-2160 for installation without remote indicator JBE-2165 for installation with remote indicator |
| Remote indicator | LED with or without resistance in series (R <4kΩ) |
| Certified | EN 54-5: 2017+A1: 2018 |
