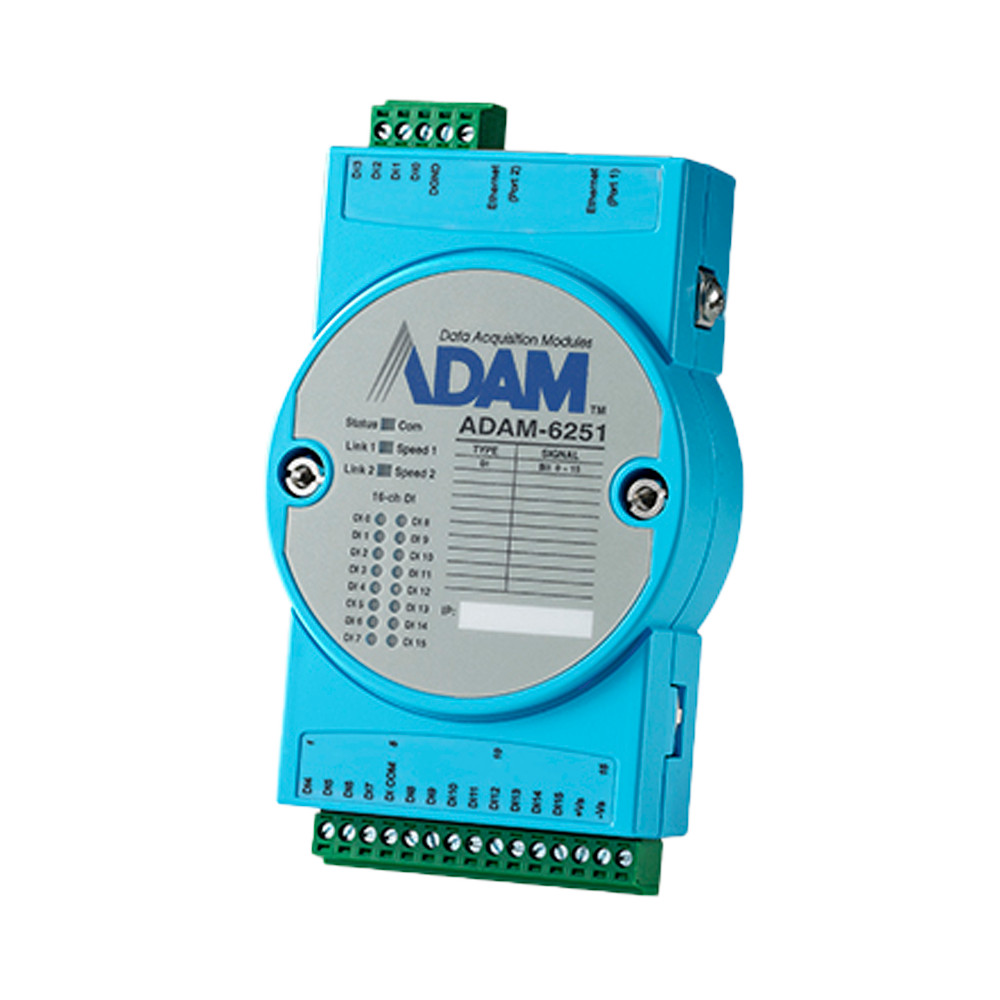

Data Acquisition and Control Module - 16 Digital Inputs - Protocols: Modbus/TCP, TCP/IP, UDP, HTTP, ... - Ability to create Analog Control Rules - Integrated Web Server - 2 Ethernet 10/100 Base -TX ports
€255.15
(IVA included)
€207.44
(Without IVA)
Delivery cost is not included
Description
| Input | 16 Digital |
| Protocols | Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP |
| Web Languages Admitted | Xml, html 5, java script |
| Communication | 2 ports 10/100 base-tx |
| Watchdog | System: 1.6 seconds Communication: Programmable |
| Connectors | Plug-in / bolt tightening connectors |
| Dimensions | 70x122x27mm |
| Temperature | Operation: -40 ~ 70ºC Storage: -40 ~ 80ºC |
| Humidity | Operation: 20 ~ 95% (without condensation) Storage: 0 ~ 95% (without condensation) |
| Food | 10 ~ 30VDC (24vdc default) |
| Consumption | 2.7w@24vdc |
| Protection | TVS / ESD Energy Reversal Protection Overvoltage Protection: +/- 35VDC Isolation Protection: 2500 VDC |
