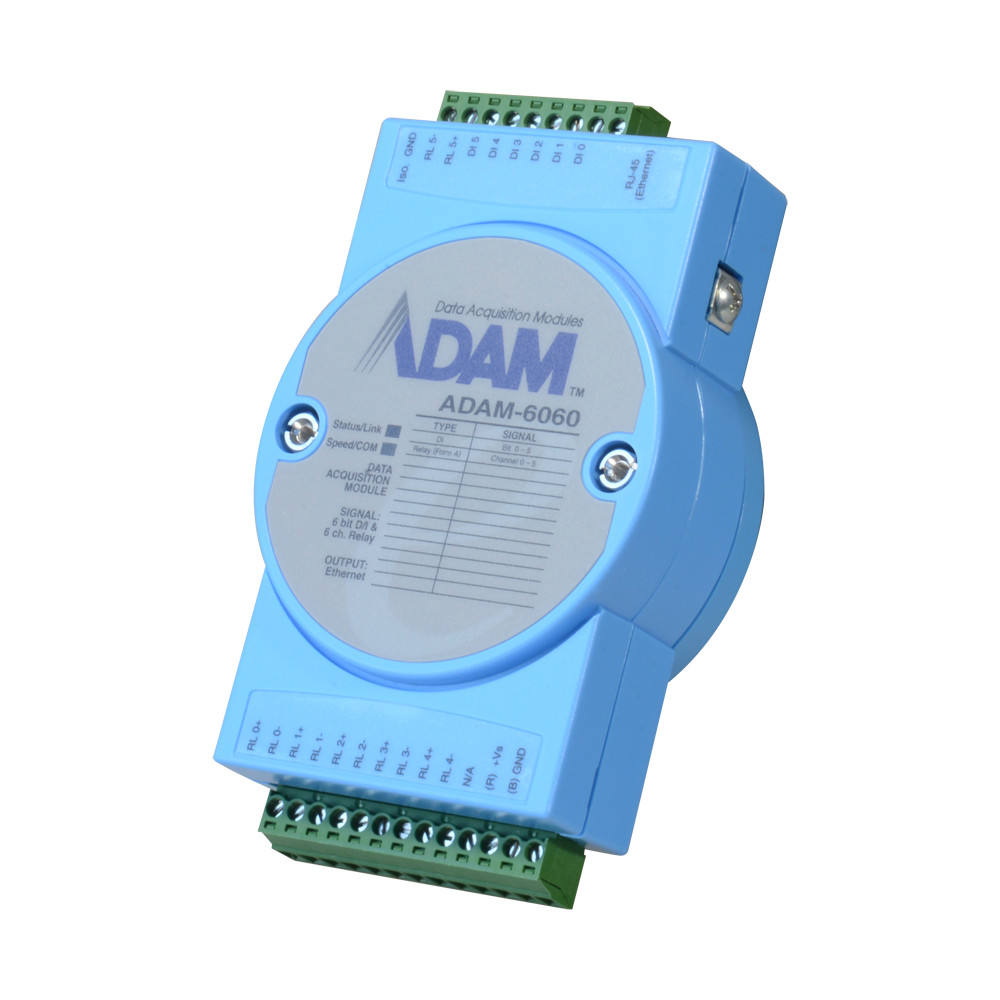

Data Acquisition and Control Module - 6 Digital Inputs/6 Relay Outputs - Protocols: Modbus/TCP, TCP/IP, UDP, HTTP, ... - Creating Analog Control Rules - Integrated Web Server - 1 Ethernet 10/100 Base -TX port
€280.66
(IVA included)
€228.18
(Without IVA)
Delivery cost is not included
Description
| Input | 6 Digital |
| Exits | 6 Relay |
| Protocols | Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP |
| Web Languages Admitted | Xml, html 5, java script |
| Communication | 1 port 10/100 base-tx |
| Watchdog | System: 1.6 seconds Communication: Programmable |
| Connectors | Plug-in / bolt tightening connectors |
| Dimensions | 70x122x27mm |
| Temperature | Operation: -40 ~ 70ºC Storage: -40 ~ 80ºC |
| Humidity | Operation: 20 ~ 95% (without condensation) Storage: 0 ~ 95% (without condensation) |
| Food | 10 ~ 30VDC (24vdc default) |
| Consumption | 2w@24vdc |
| Protection | TVS / ESD Energy Reversal Protection Overvoltage Protection: +/- 35VDC Isolation Protection: 2500 VDC |
