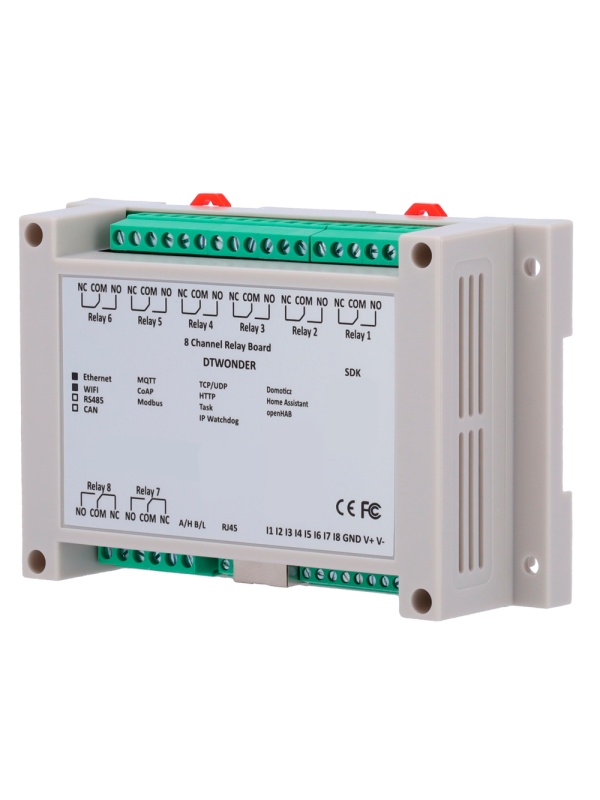

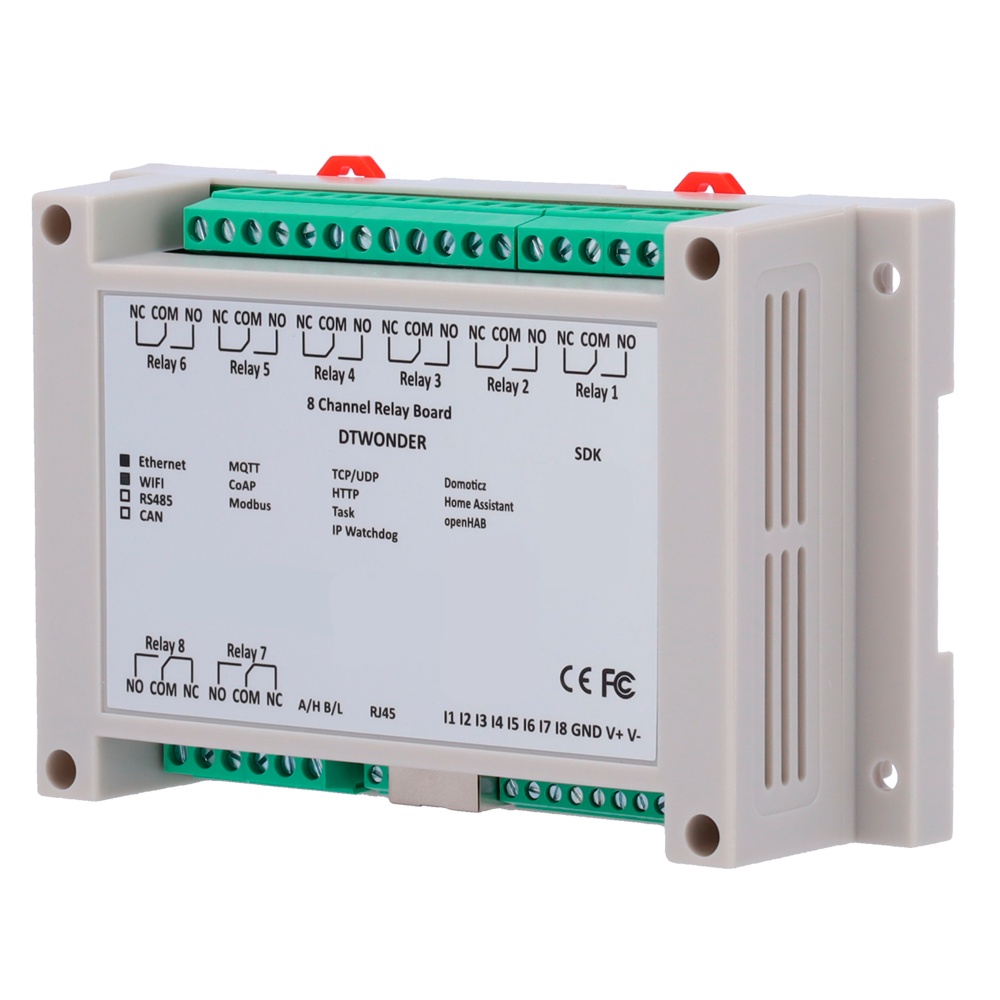

Data Acquisition and Control Module - 8 Digital Inputs/8 Relay Outputs (NA/NF) - Protocols: Modbus/TCP, TCP/IP, UDP, http, ... - Integrated Web server - 1 Ethernet port 10/100 base -TX, 1 wifi port - feeder not included (12vdc/1a)
€47.21
(IVA included)
€38.38
(Without IVA)
Delivery cost is not included
Description
| Entradas | 8 Digitais |
| Saídas | 8 relés |
| Protocolos | Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP |
| Comunicação | 1 Porta 10/100 Base-TX 1 Porta WiFi |
| Watchdog | Sistema: Programável Comunicação: Programável |
| Conectores | Plug-in / conectores com aperto por parafusos |
| Dimensões | 87x122x27mm |
| Temperatura | Funcionamento: -10~85ºC |
| Alimentação | 12VDC-24VDC 12VAC-24VAC |
| Corrente | 1.5A@12VDC |
| Consumo | 5W |
