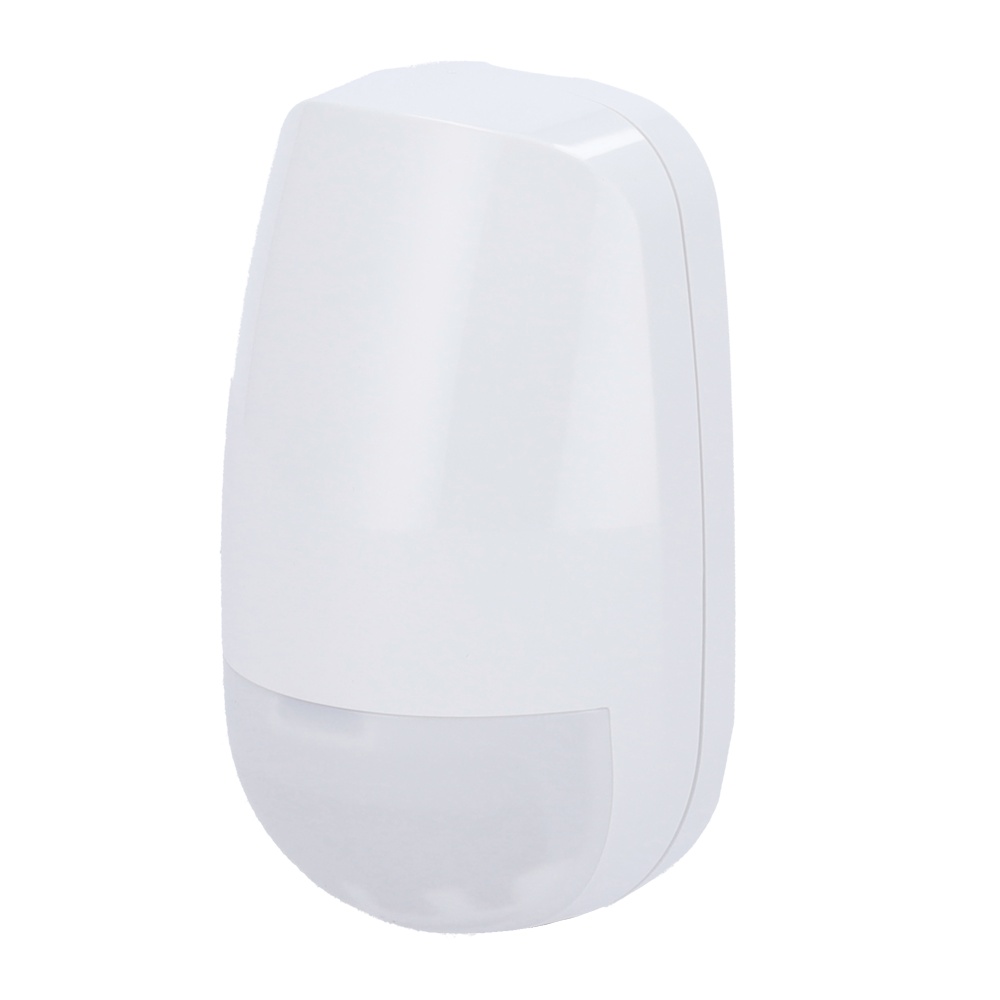

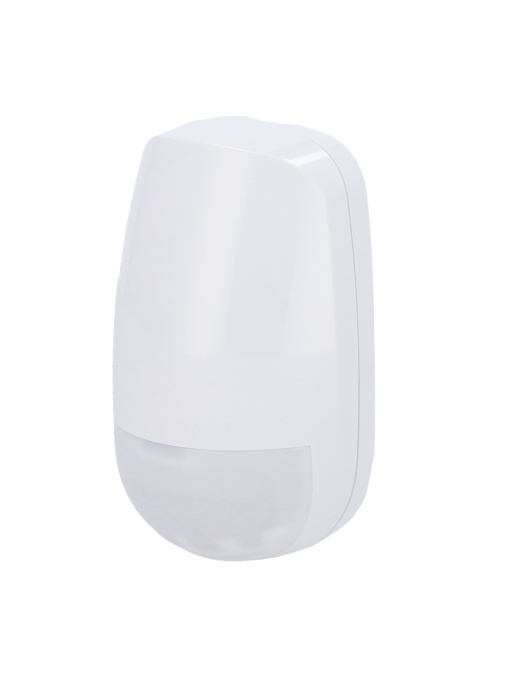

Detector with Double Technology Wires - Anti Masking and Anti -Occultation - Detection Range 15 m - Selectable Line End Resistances (EOL) - Food 9 ~ 16 VDC - Grade 2 Certificate 2
€15.18
(IVA included)
€12.34
(Without IVA)
Delivery cost is not included
Description
| Mark | Hikvision |
| Model | Ds-pdd15am-eg2 |
| Degree of security | Grade 2 |
| Technology | Passive and microwave infrareds |
| Detection range | 15 meters |
| Detection angle | 85.9º |
| Detection zones | 52 |
| Microwave Frequency | 24 GHz (24.15 GHz at 24.25 GHz) |
| Microwave | Potentiometer adjustment |
| Installation height | From 1.8 to 2.4 meters (recommended at 2.2 m) |
| Installation | Wall |
| Sensitivity | Automatic and low |
| Immunity to animals of allegation | Unavailable |
| Temperature digital compensation | Available |
| Anti-opening | Available (front) |
| Anti-mass | Available |
| Anti -oculture | Available |
| Anti-block | Available |
| Alarm outlet | Usually closed |
| LED indication | Alarm: Blue Activated Pir: Green Microwave: Orange Anti-Master: Orange + Green |
| Line end resistances (EOL) | Available, selectable with jumpers |
| Alarm resistances | 1k, 2k2, 4k7, 5k6, 8k2 |
| Tamper resistances | 1k, 2k2, 4k7, 5k6 |
| Anti-Masking resistances | 1k, 2k2, 6k8 |
| Cabbada exits | Alarm, manipulation and anti-mass |
| Food | 9 ~ 16 VDC (maximum consumption). 25 ma) |
| Temp. operation | -10 ° C ~ +55 ° C |
| Moisture | 10 % to 90 % |
| Application scenarios | Interior |
| Dimensions | 103.8 (AL) X 65.7 (LG) X 45.5 (FD) MM |
