Ditec entematic dit ts35 stop engine

Description ts35ac ditec

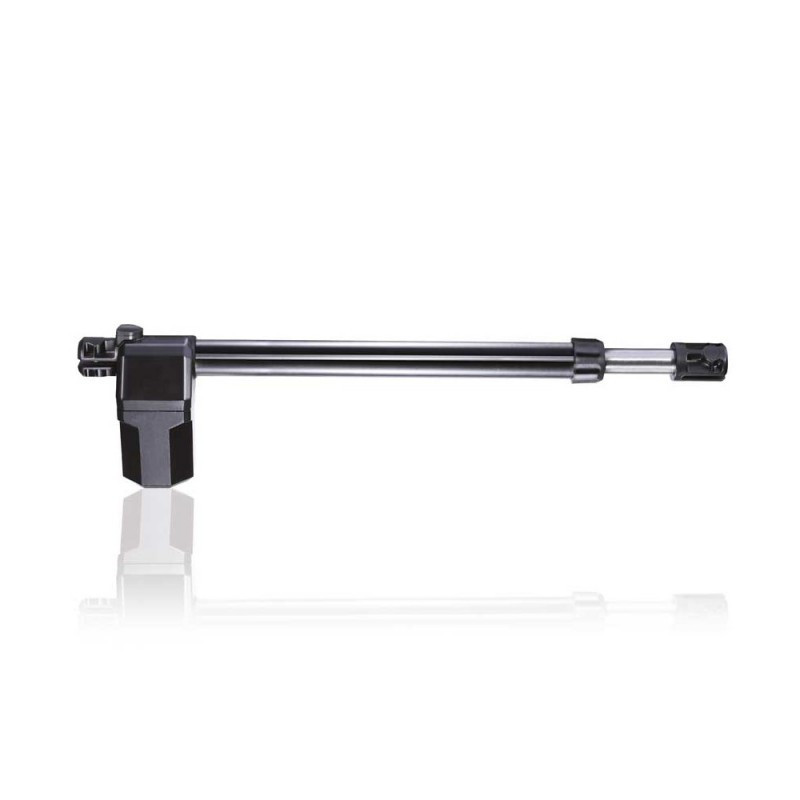

Irreversible electromechanical actuator
Maximum range
400 kg x 1.5 m
300 kg x 3.5 m
230 VCA engine power- 50 Hz
Maximum absorption 1.5 to
Absorbed power 330 w
Maximum impulse 3500 n
Opening Speed ​​18 S ÷ 22 s / 90 °
Maximum course 400 mm
Description TS35AC
Intermittent S2 = 10 min / s3 = 30%
Frequent service class up to 100,000 cycles
Unlocking for opening
Key Manual
Operating temperature
-20 ° C ÷ +55 ° C
(-35 ° C ÷ +55 ° C with active Nio system)
IP33 protection level
Weight (kg) 4

Easy to install

Ditec PWR TS 35 is the newirreversible telescopic operator for stop gatesFor residential applications for frequent use.Rapid installationIn three simple steps: With the gate closed, assemble the engine in the column using the perforated plate, lengthen the telescopic arm and fix it on the sheet.

Extremely robust reliable, to resist for a long time

• the use ofstainless steelengine axis, gears and screw guarantee a long duration over time
• The spheres bearings guarantee afluid movementengine, and apowerful impulse
• decelerationsconfigurable during opening and closing
• the perforated plates havea greater thicknessin relation to the competition, to best support the torsion and cut forces
