Simple and fast installation, adaptable to any structure

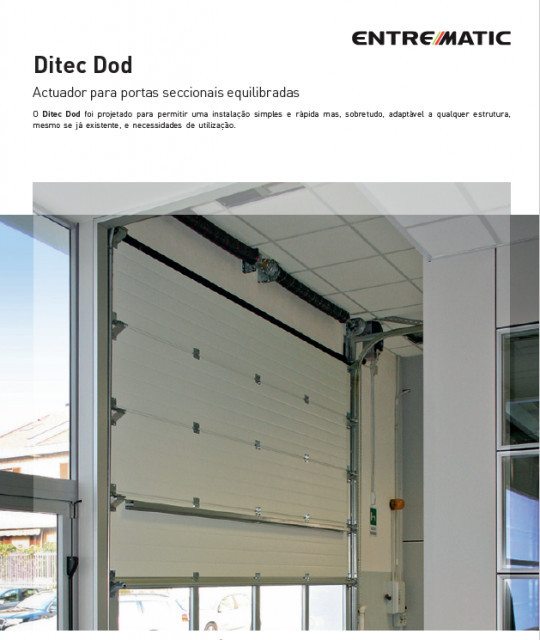

Ditec Dod is the lateral automatism for large sectioned gates designed to adapt to any installation. Includes the possibility of manual unlock, by current or bar.

Available the single -phase version with 230 V engine.

Ease of installation

Mounted on a transmission axis or with pine nuts and current, it makes the other parts of motion superfluous, with a consequent saving of time in assembly and cost of materials.

GROUP END OF REGULABLE ROTATING COURSE. The opening cycles managed by the mottorship contribute to keep all the mechanics of the sectioned door over time. The reduced and compact dimensions of the motorers are suitable for applications even in the case of lack of space.

Ditec Dod automatisms are complemented by safety, command and control accessories, respecting the rules of law in force.

Main characteristics

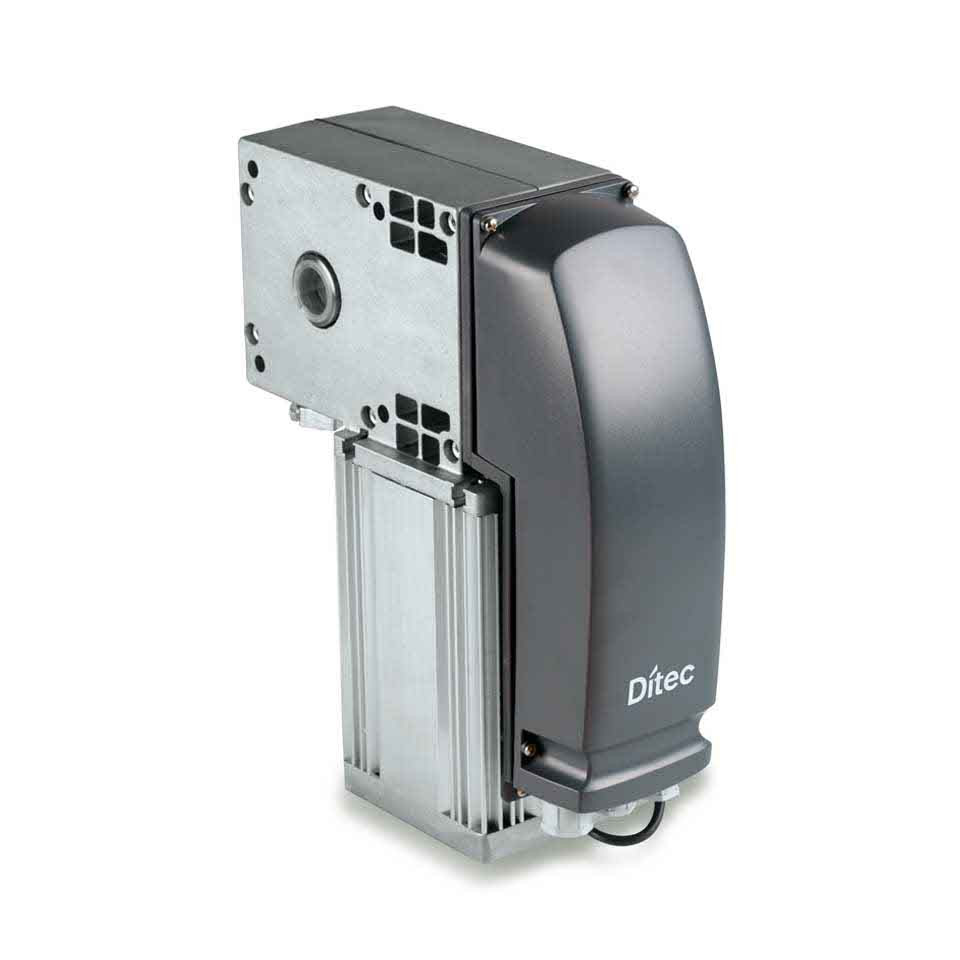

• MotororPeductor 230 V ~ 3 A for intensive use
• Motor with thermal sensor self -protection and endowed with incorporated electric brake and end of course
• Axial assembly

Also available in kit:

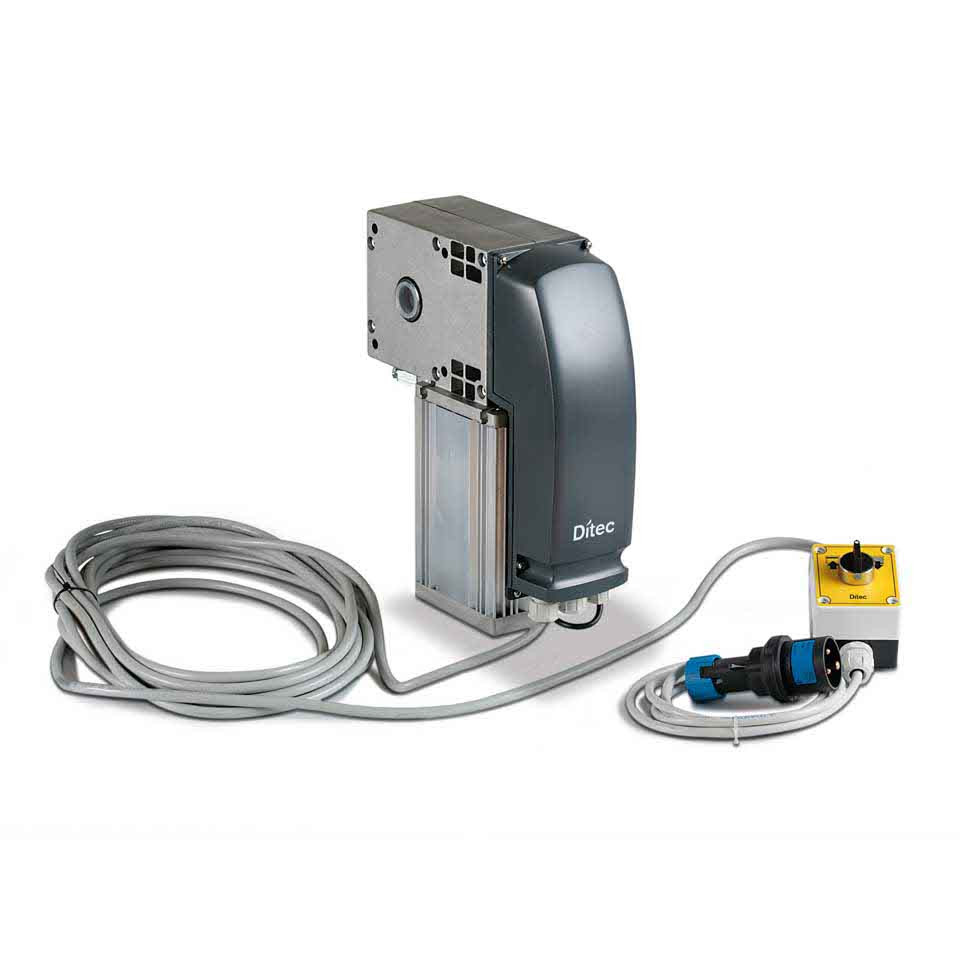

• Hold-to-Run kit: Full Dod Actuator with 3-position control doller and industrial connection CE 16A 250V 2p+e.
• PRE-CABLADO KIT WITH CONTROL PANEL: Pre-Cablado Dod Actuator with Control Panel and Industrial Connection CE 16A 250V 2p+e. LCA85B Electronic Control Panel (large box, dimensions 238x357x120 mm) Complete with pre-assembled PT3 control pussy.
