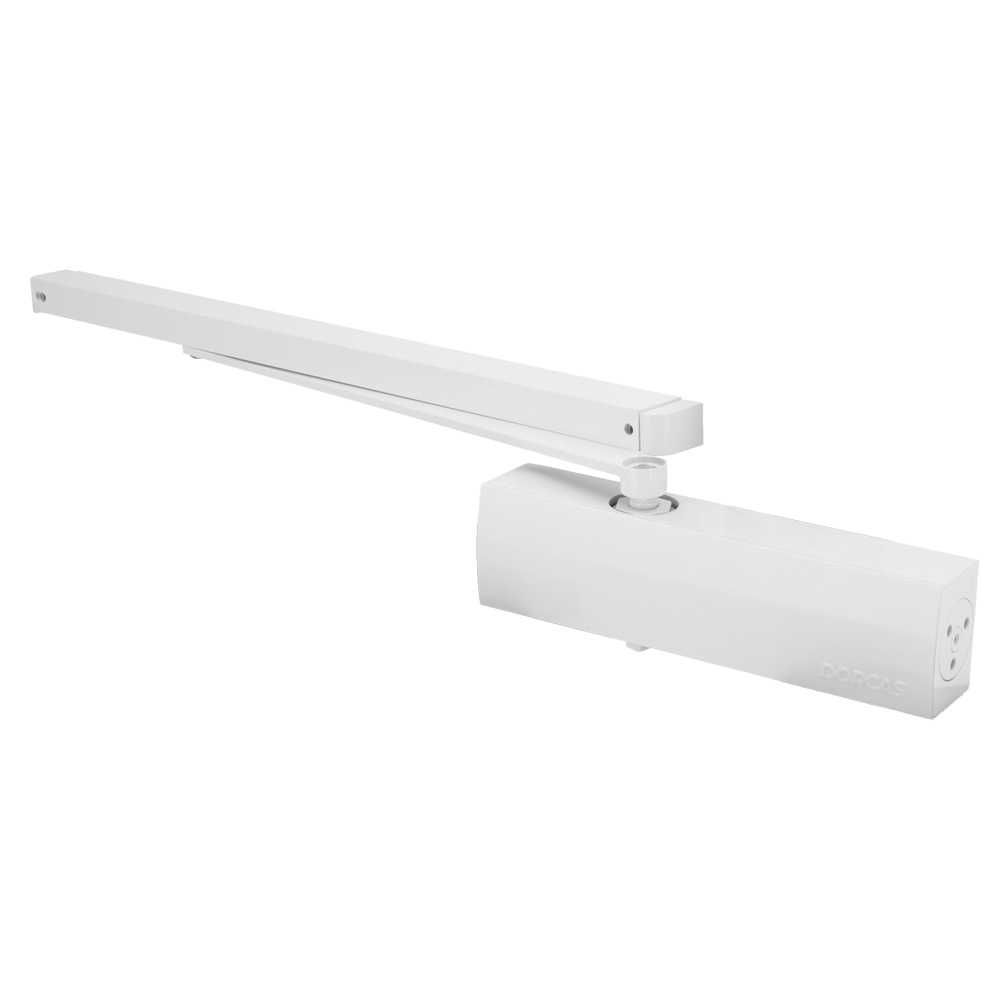

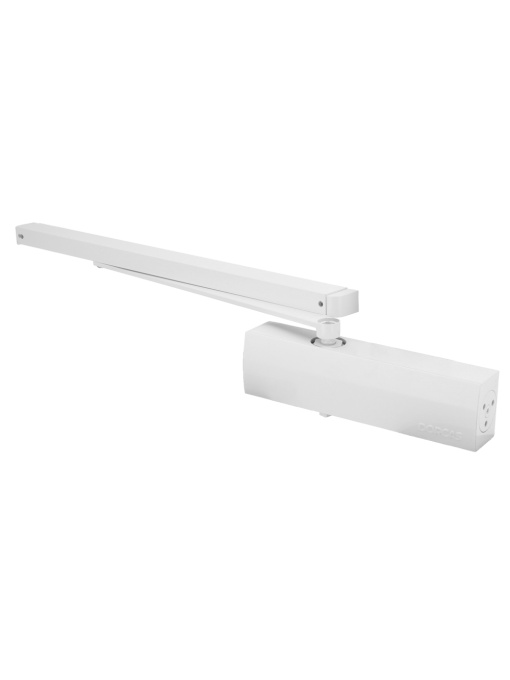

Doors Sliding Arm Spring - Surface Assembly and Reversible Installation - Reduced Opening - Doors between 25 ~ 100 kg and 850 ~ 1250 mm - Adjustable Speed | Precise strength adjustment - fit for all types of ports
€86.75
(IVA included)
€70.53
(Without IVA)
Delivery cost is not included
Description
| Mark | Dorcas |
| Model | DR-D-22233/W |
| Installation | Surface assembly and reversible (for right or left closure) |
| Door -type | All types of ports, including RF ports |
| Door width | Between 850 and 1250 mm |
| Door weight | Between 25 and 100 kg |
| Maximum opening | 160 ° |
| Closing velocity | Adjustable between two levels: Speed 1: 160 ° ~ 15 ° Speed 2: 15 ° ~ 0 ° |
| Special functions | Arm with retention (facilitates opening by reducing the necessary force) Precise adjustment of the force by side screw |
| Dimensions | 235 (LG) X 50 (AL) X 44 (PF) MM |
| Material | Metal |
| Weight | 2,42 kg |
