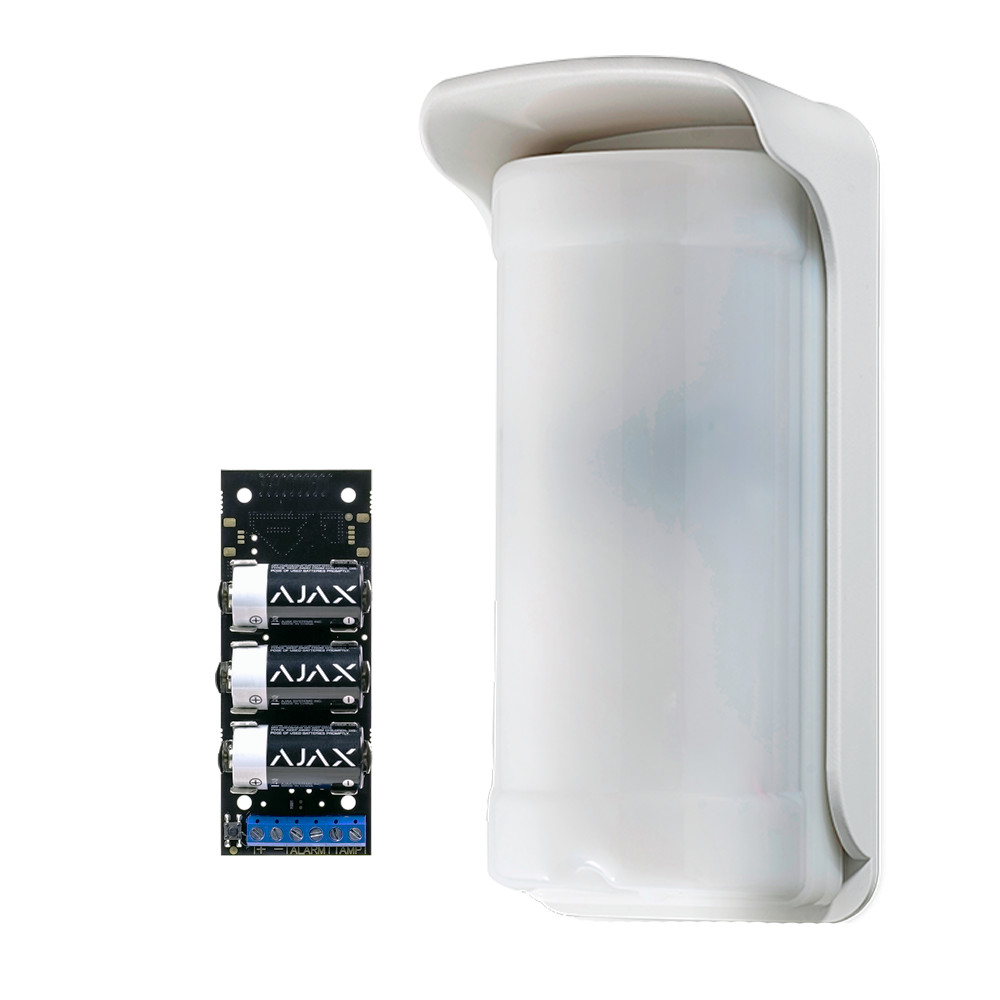

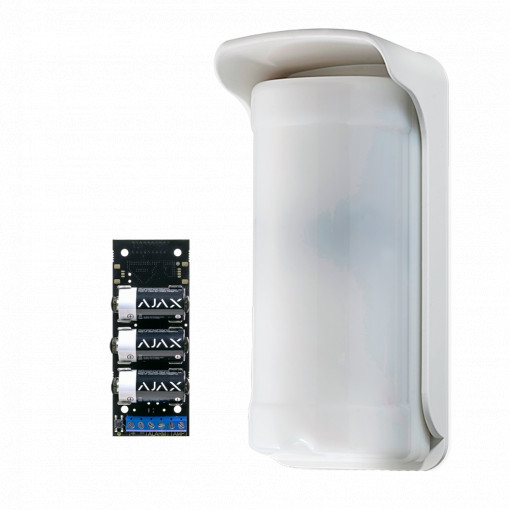

Duevi Exterior Energy Savings Detector - Integrated with Ajax Transmitter (incorporated) - Double PIR on each side and double front PIR - Total Coverage 180º / AntiMasking - Energy provided by the transmitter - outer use IP54 / antivandalism
€214.33
(IVA included)
€174.25
(Without IVA)
Delivery cost is not included
Description
| Mark | Duevi |
| Model | Moskito K |
| Technology | PIR DOUBLE SIDE (Both sides) and Double PIR IN FRONT |
| Pir lens | Adaptive lenses in 3 positions |
| Side detection field | Configurable on each side: 3 m to 12 m (in 3 levels) / 10º |
| Frontal detection field | Configurable: 2 m to 5 m (at 3 levels) / 180º |
| Frequency | 868 MHZ Jeweller (Ajax Transmitter included) |
| Installation height | Recommended 2.2 m (1 to 1.4 meters) |
| Masking | Available: from 0ºC, always activated (by app) or deactivated |
| Sensitivity | Adjustable on each side and on the front (potentiometer and jumper) |
| Anti-opening | Available |
| Anti-sabotage | Available (Movement Accelerometer) |
| LED indication | Alarm (blue) and walking test (6 red LEDs: one for each pir / blue: alarm confirmation) |
| Sound indication | Integrated buzzer for an easy installation: alarm, sabotage, anti-masking |
| DIP SWITCH CONFIGURATION | 1 - Antimasking (on/off) 2- Front Pre-Alarm (ON/OFF) 3- Ahead March Test (ON/OFF) 4- Right March Test (ON/OFF) 5- Left March Test (ON/OFF) 6- Alarm LED (ON/OFF) 7- APP Programming (ON/OFF) 8 and 9 - Side configuration (all active/left, right or front sides) 10- Unification of alarms on an output (ON/OFF) |
| APP ADDITIONAL CONFIGURATION | AntiMasking (0ºC, always turned on or deactivated) / Independent Sensitivity Adjustment by Side / Time of Rest (ON / OFF / UP at 60 S) |
| APP Configuration | The DV-Btlink module is required and unload the View Sensor App (Android) |
| Cabbada exits | Alarm and failure (Tamper and Antimasking) |
| Low battery charge warning | Sign sent by the ajax transmitter |
| Food | Provided by ajax transmitter (not inserting additional batteries) |
| Consumption | Minimum consumption (rest: 26 UA / maximum: 6 mA) |
| Temp. operation | -40 ° C ~ +70 ° C |
| Degree of protection | IP54, IK10 antivandalism |
| Dimensions | 190 (h) x 85 (w) x 113 (FO) mm (transmitter spacing) |
