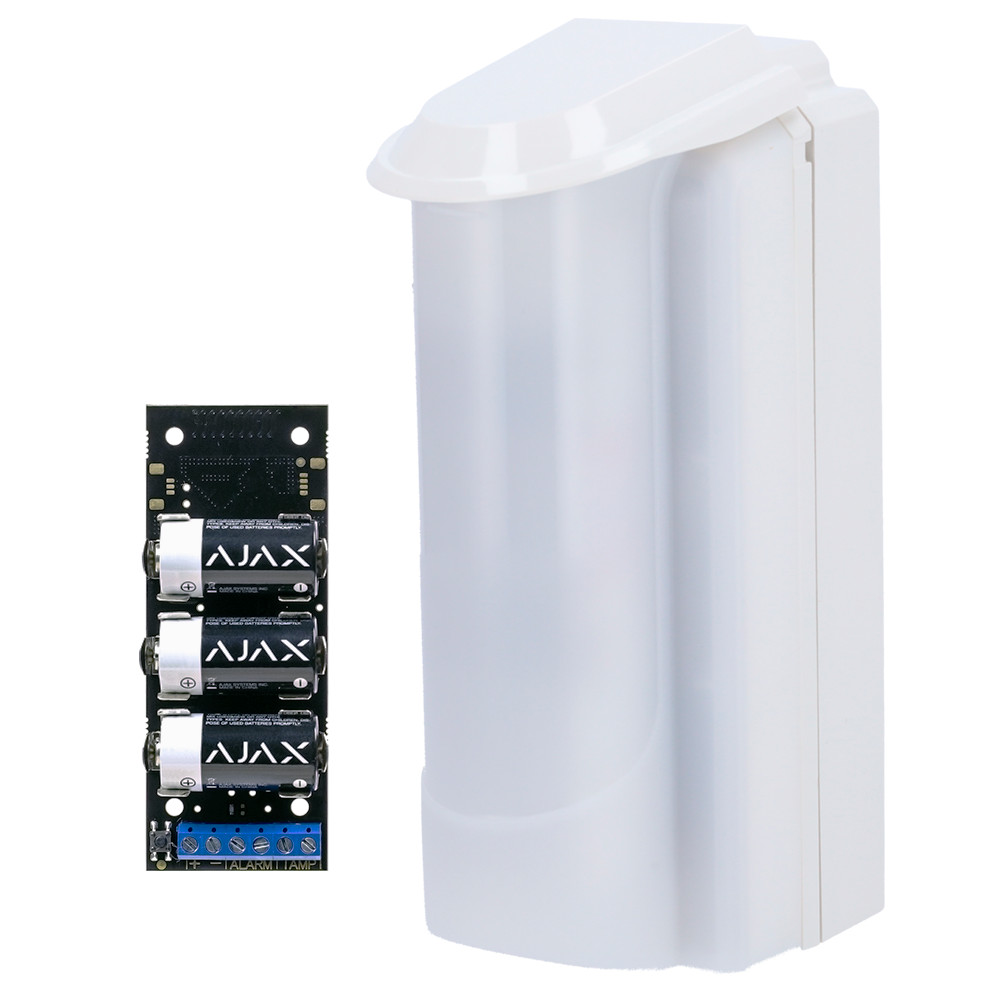

DUEVI OUTPOINT POWER SAVING DETETOR - compatible with AJAX transmitter (included) - Dual PIR and microwave (24 GHz) - Detection 15 m / AntiMasking / Pet Immune - Energy Provided by Transmitter - IP54 / Anti Use
€177.33
(IVA included)
€144.17
(Without IVA)
Delivery cost is not included
Description
| Mark | Duevi |
| Model | Monolith dt k |
| Technology | Double Technology: Microwave (24 GHz) and Volumetric Double |
| Pir lens | Both adaptable lenses horizontally up to 55º |
| Detection field | Configurable: 3 m to 15 m (in 6 levels) / 90º |
| Frequency | 868 MHZ Jeweller (Ajax Transmitter included) |
| Immunity to animals of allegation | Available (installation height 1.2 ~ 1.3 m) |
| Installation height | From 1.2 m to 2.2 m |
| Masking | Available: from 0ºC, always activated (by app) or deactivated |
| Sensitivity | Adjustable (3 levels) |
| Anti-opening | Available |
| Anti-sabotage | Available (Movement Accelerometer) |
| LED indication | Alarm (blue) and gear test (red): upper / green: lower / blue: microwave and alarm recognition) |
| DIP SWITCH CONFIGURATION | 1- March Test (ON/OFF) 2- Unification of alarms on an output (ON/OFF) |
| Configuration in Detector (LEDs and buttons) | Sensitivity / Anti-Master / Tamper Anti Sabotage / Animal Assembly / Immunity Height / Detection Interval (More information Page 9 Manual in Download Section) |
| APP ADDITIONAL CONFIGURATION | Anti-Masking (of 0ºC, always connected or deactivated) / Anti-Masking Sensitivity / Sleep Time (on / off / to 60 s) |
| APP Configuration | The DV-Btlink module is required and unload the View Sensor App (Android) |
| Cabbada exits | Alarm and failure (Tamper and Antimasking) |
| Low battery charge warning | Sign sent by the ajax transmitter |
| Food | Provided by ajax transmitter (not inserting additional batteries) |
| Consumption | Minimum consumption (rest: 11 UA / maximum: 5 mA) |
| Temp. operation | -40 ° C ~ +70 ° C |
| Degree of protection | IP54, IK10 antivandalism |
| Dimensions | 201 (h) x 79 (w) x 106 (FO) mm (transmitter spacing) |
