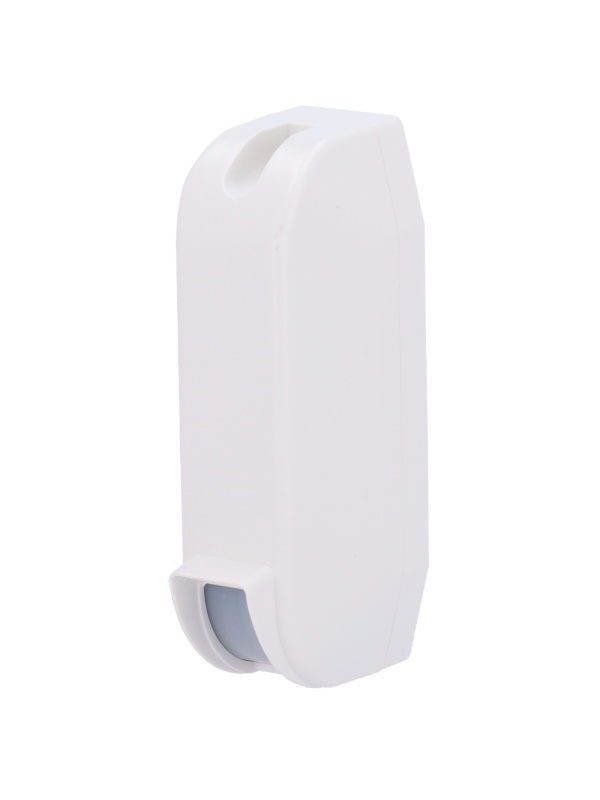

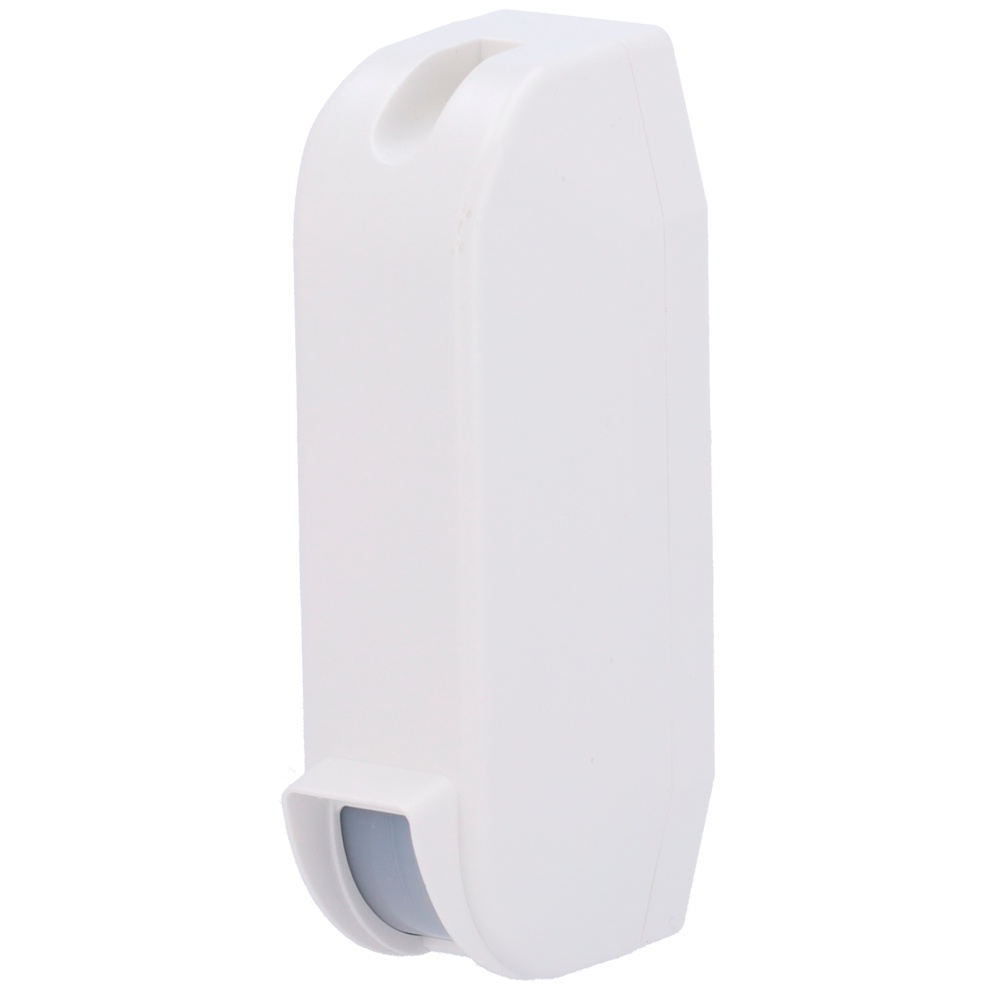

DUEVI WIRE EXTERNAL DETECTOR - Curtain and Microwave PIR (24 GHz) - Detection range 12 m / antimasking - Electric power 9.6 ~ 14.5 VDC - Compatible with wire alarm systems - IP54 outer use
€82.93
(IVA included)
€67.42
(Without IVA)
Delivery cost is not included
Description
| Mark | Duevi |
| Model | Kapture f |
| Technology | Double Technology: Microwave (24 GHz) and Curtain PIR |
| Detection field | Configurable: 3 m to 12 m (depending on installation) / PIR 7.5º / microwave 30º |
| Immunity to animals of allegation | Unavailable |
| Installation height | Recommended 2.2 m (2 to 4 meters) |
| Masking | Available |
| Sensitivity | Adjustable (30% to 100% or app potentiometer) |
| Anti-opening | Available |
| Anti-sabotage | Available (Movement Accelerometer) |
| LED indication | Alarm (blue). IV (red) detection and gear test (red): IR / blue: alarm confirmation) |
| DIP SWITCH CONFIGURATION | March Test (ON/OFF), Anti-Master (ON/OFF), APP Programming (ON/OFF), Alarm Unification on an output (ON/OFF) |
| APP ADDITIONAL CONFIGURATION | Anti-shadowed function to avoid false alarms (4 levels) / IR and microwave sensitivity adjustment |
| APP Configuration | The DV-Btlink module is required and unload the View Sensor App (Android) |
| Cabbada exits | Alarm, Tamper and Antimasking |
| Food | 9.6 to 14.5 VDC |
| Temp. operation | -40 ° C ~ +70 ° C |
| Degree of protection | IP54 |
| Support | Includes wall support and L support |
| Dimensions | 128 (AL) X 41 (LG) X 48 (FD) MM |
