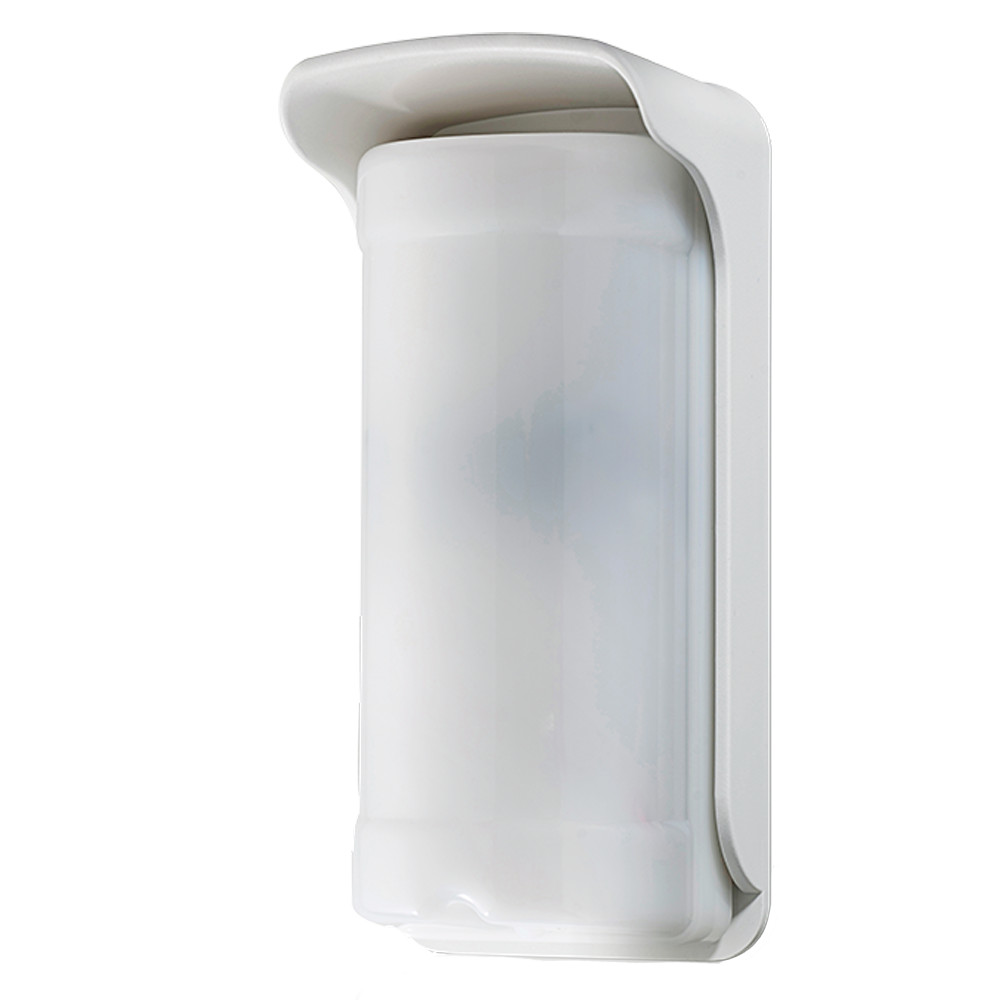

DUEVI WIRE EXTERNAL DETECTOR - DOUBLE PIR ON EVERY SIDE AND FRONT DOUBLE PIR - TOTAL COVERAGE 180º / ANTIASKING - ELECTRICAL PEACE 9.6 ~ 14.5 VDC - Compatible with wire alarm systems - IP54 / Antivandalism IK10
€162.03
(IVA included)
€131.73
(Without IVA)
Delivery cost is not included
Description
| Mark | Duevi |
| Model | Moskito F |
| Technology | PIR DOUBLE SIDE (Both sides) and Double PIR IN FRONT |
| Pir lens | Adaptive lenses in 3 positions |
| Side detection field | Configurable on each side: 3 m to 12 m (in 3 levels) / 10º |
| Frontal detection field | Configurable: 2 m to 5 m (at 3 levels) / 180º |
| Installation height | Recommended 2.2 m (1 to 1.4 meters) |
| Masking | Available: from 0ºC, always activated (by app) or deactivated |
| Sensitivity | Adjustable on each side and on the front (potentiometer and jumper) |
| Anti-opening | Available |
| Anti-sabotage | Available (Movement Accelerometer) |
| LED indication | Alarm (blue) and walking test (6 red LEDs: one for each pir / blue: alarm confirmation) |
| Sound indication | Integrated buzzer for an easy installation: alarm, sabotage, anti-masking |
| DIP SWITCH CONFIGURATION | 1 - Antimasking (on/off) 2- Front Pre-Alarm (ON/OFF) 3- Ahead March Test (ON/OFF) 4- Right March Test (ON/OFF) 5- Left March Test (ON/OFF) 6- Alarm LED (ON/OFF) 7- APP Programming (ON/OFF) 8 and 9 - Side configuration (all active/left, right or front sides) 10- Unification of alarms on an output (ON/OFF) |
| APP ADDITIONAL CONFIGURATION | Antimasking (0ºC, always on or deactivated) / independent sensitivity adjustment by side |
| APP Configuration | The DV-Btlink module is required and unload the View Sensor App (Android) |
| Cabbada exits | Left side alarm, right side alarm, front alarm, tamper and antimasking |
| Food | 9.6 to 14.5 VDC |
| Temp. operation | -40 ° C ~ +70 ° C |
| Degree of protection | IP54, IK10 antivandalism |
| Dimensions | 190 (AL) X 85 (LG) X 75 (FD) MM |
