E10.1 Mini Movement Detector 360º IP20
€12.45
(IVA included)
€10.12
(Without IVA)
Delivery cost is not included
Description
E10.1 SENSOR
006.016.010
360 ° Mini Flat Movement Detector)
Description

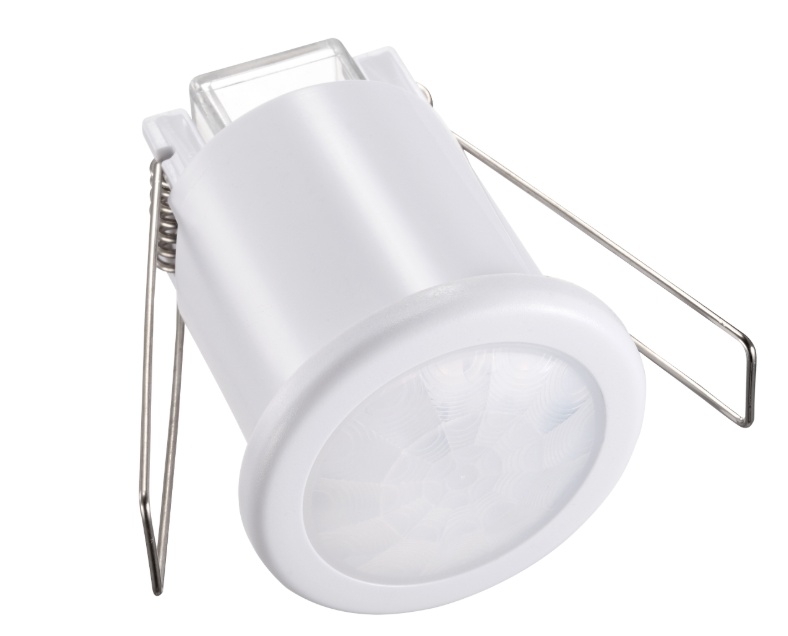

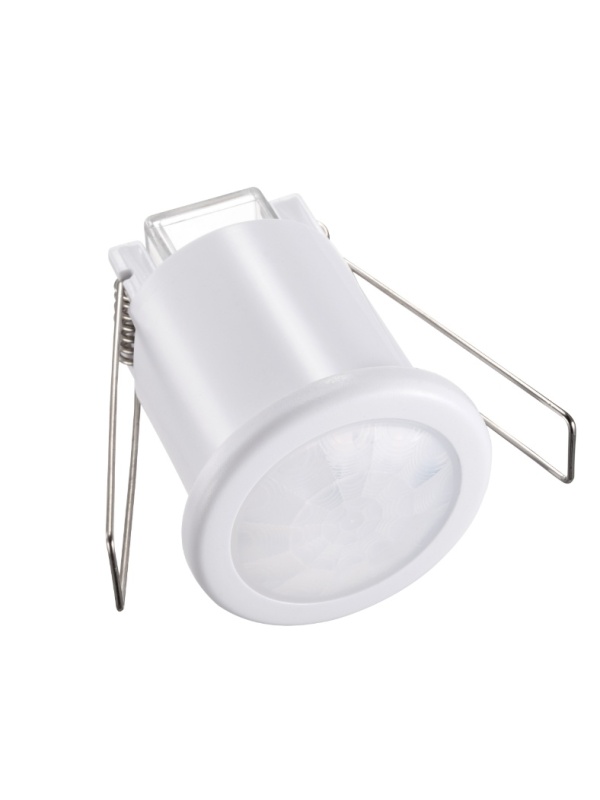

Mini presence detector to enjoin in a 360º false ceiling, with timer and twilight functions. IP20 protection index, detection up to Ø8m.
Technical information
- Voltage in operation mode | OPERATING VOLTAGE 220-240V AC
- Frequency | Frequency 50 Hz
- Stand-by consumption | Stand-by Consumption 0.5 W
- Number of Channels | Number of Channels 1
- Mounting Type | Installation Type Assembly on the ceiling/ wall installlation
- Light Adjustment Interval | Setting Range Brightness 3 ... 2000 lux
- Light switching power | Switching Capacity Light 10 A (A 230 V AC, Cos φ = 1), 6 a (A 230 V AC, cos φ = 0.6), 3 ax (a 230 V AC, cos φ = 0.3)
- Detection Angle | Detection Angle 360 °
- Detection distance Max. 8m
- Assembly height | Installation Height 2.2 ... 4 m
- Light Operation Time | Light switch-off delay 10 s ... 15 m
- Load of incandescent/halogen lamps | Incandescent Lamp Load and Halogen 800 W
- LED LAMP | LED LAMP 400 W
- Protection Class | Protection Class II
- Ambient temperature | Ambient temperature -20 ° C… +40 ° C
Duties
You can identify day and night: Consumer can adjust the work in different light environments.
It can work during the day and night when regulated in the "sun" position (max.).
It can work with ambient light less than 3 lux when adjusted in position "3" (min.).
Time delay is continuously added when it receives signs of induction within the first induction, it will restart the count from that moment.
