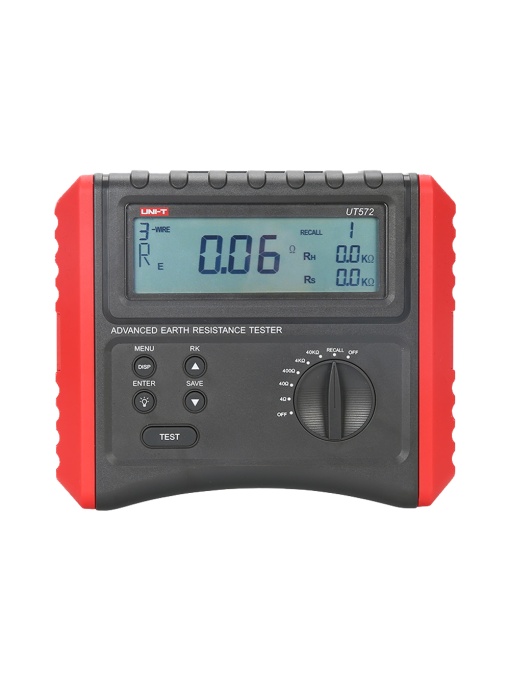

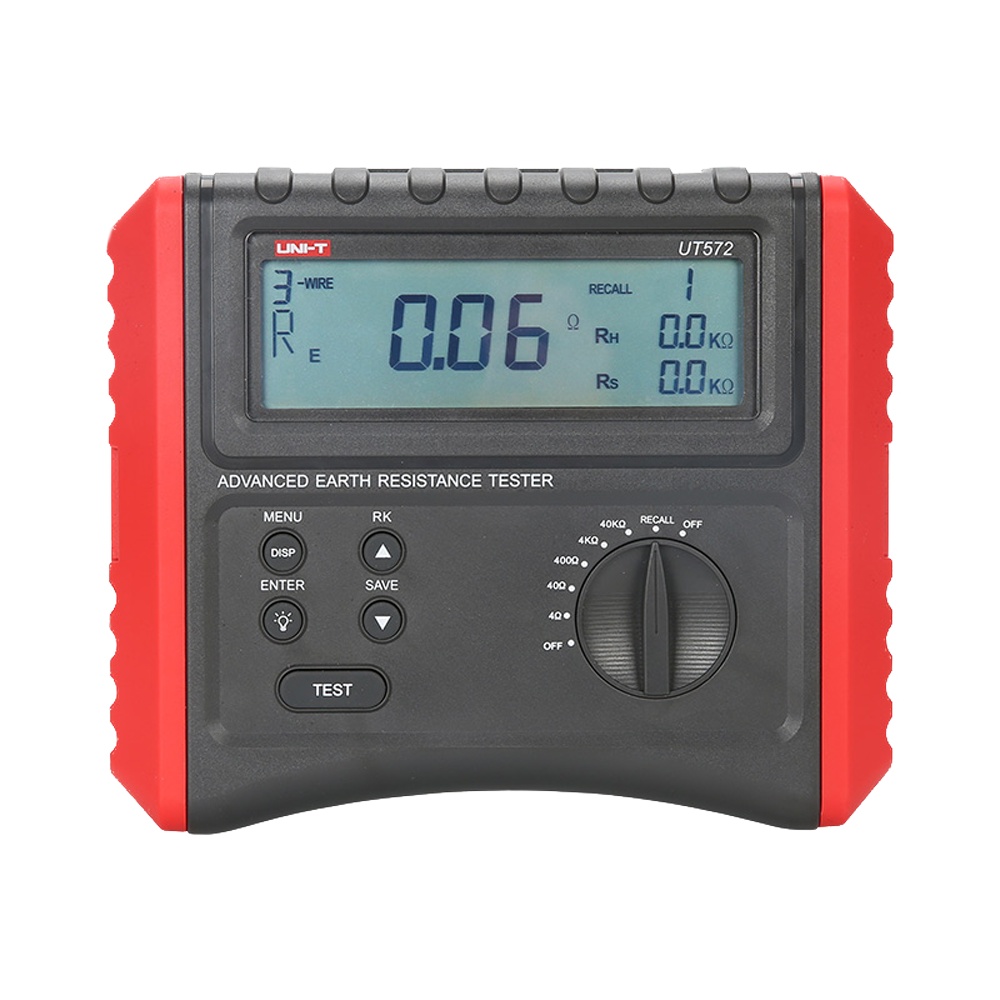

Earth Resistance Meter - LCD View - Earth Resistance Measurement up to 40KΩ - Soil Resistivity Measurement Up to 40kΩ - Data Storage - Automatic
€382.72
(IVA included)
€311.16
(Without IVA)
Description
| Mark | Uni-T |
| Earth resistance measurement range | 4Ω ± (3%+15) 40Ω ± (3%+5) 400Ω ± (3%+5) 4kΩ ± (3%+5) 40kΩ ± (3%+5) |
| Soil resistivity measurement range | 4Ω ± (3%+15) 40Ω ± (3%+5) 400Ω ± (3%+5) 4kΩ ± (3%+5) 40kΩ ± (3%+5) |
| AC tension measurement range for land | 0 ~ 200V ± (1%+4); Frequency: 50Hz/60Hz |
| Test Frequency (UST) | 40Hz ~ 500Hz ± (1%+2) |
| Earth resistance test frequency | 94/128Hz |
| Test voltage (UST) | 50V (CC Voltaje/40Hz ~ 500Hz) ± (3%+3) |
| Display Dimensions | 70.6mm x 34mm |
| Number of test cables | 2/3/4 |
| Distance from separation of soil resistivity test | 1 ~ 40m |
| HR and rs test | If you have |
| RK resistance compensation test | If you have |
| Memory | If you have. Up to 20 data |
| Data lock on screen | If you have |
| Automatic | If you have |
| Low battery indicator | If you have |
| Dimensions | 210 (AL) X 175 (LG) X 90 (FD) MM |
| Food | 1.5V (LR6) x 8 |
| Weight | 1.1 kg |
| Security | Cat III 600V |
