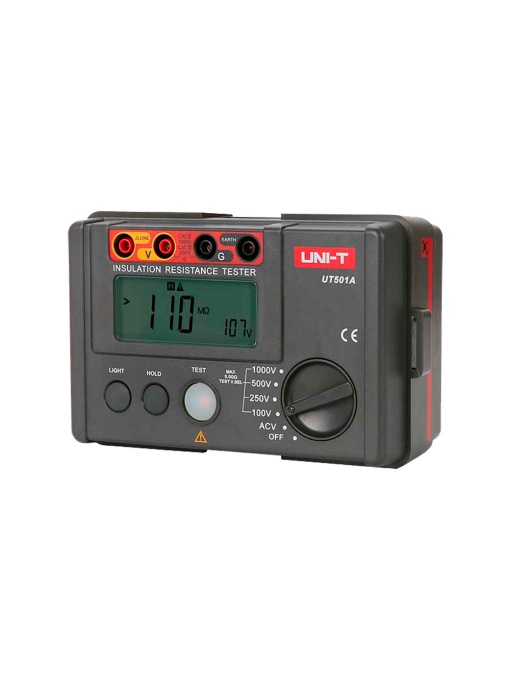

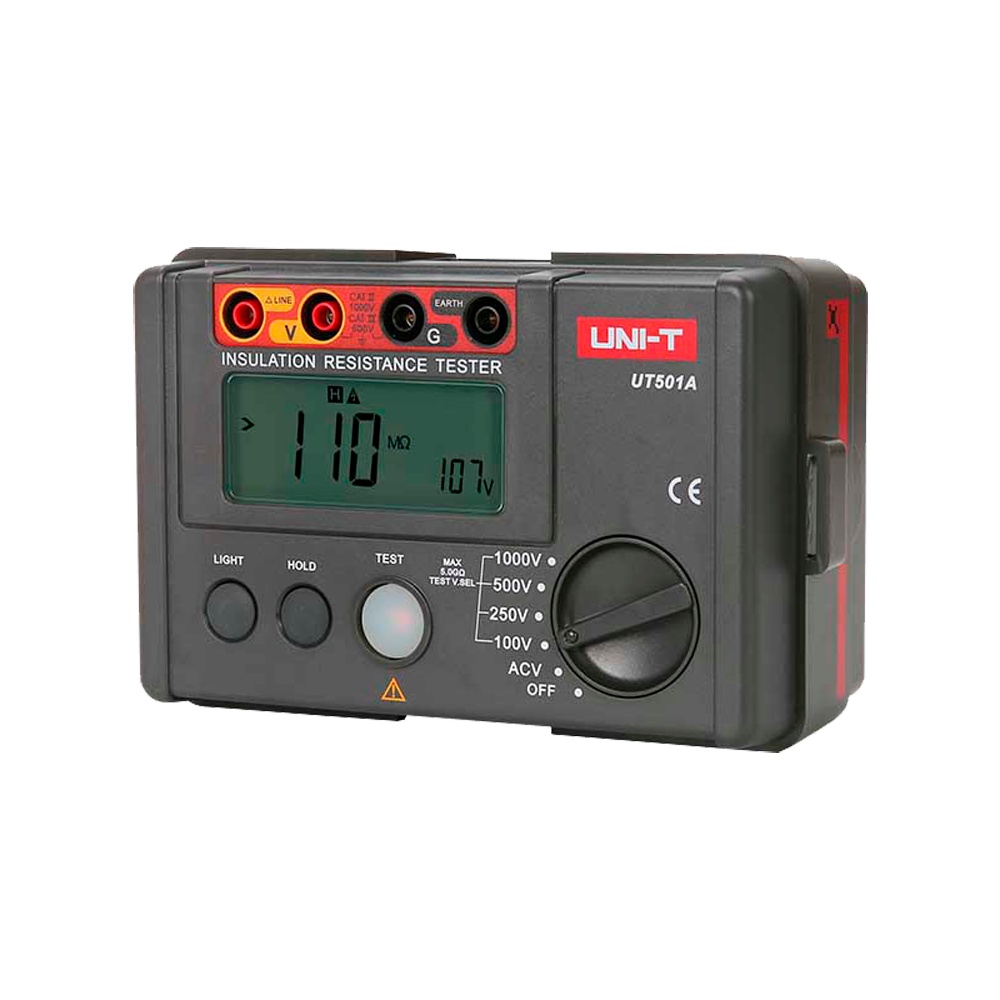

Electric insulation resistance meter - LCD display up to 2000 accounts - AC voltage measurement up to 600V - Automatic deleted - intervals 250V/500V/1000V
€72.72
(IVA included)
€59.12
(Without IVA)
Delivery cost is not included
Description
| Mark | Uni-T |
| Insulation resistance | 250V: 0mΩ ~ 99.9mΩ ± (3%+5) / 100mΩ ~ 5gΩ ± (5%+5) 500V: 0mΩ ~ 99.9mΩ ± (3%+5) / 100mΩ ~ 5gΩ ± (5%+5) 1000V: 0mΩ ~ 99.9mΩ ± (3%+5) / 100mω ~ 5gΩ ± (5%+5) |
| Load current | 50V (R = 50kΩ) 1ma; 0%~ 10% 100V (R = 100kΩ) 1ma; 0%~ 10% 250V (R = 250kΩ) 1MA; 0%~ 10% 500V (r = 500kΩ) 1ma; 0%~ 10% 1000V (R = 1mΩ) 1ma; 0%~ 10% |
| Short circuit current | <2ma |
| RANGO OF MEASURE OF RETURN AC | 30V ~ 600V ± (2%+3) |
| Dimensions display | 70.6mm x 34mm |
| Cuentas Display | HASTA 2000 |
| DIELETRIC ABSORCIOT RATIO (DAR) | SI |
| Polarización Index (PI) | SI |
| HIGH VOLTAGE BUZZER | SI |
| Overload indicator | SI |
| TEST INTERNAL RESISTANCE 10 MΩ | SI |
| Dimensions | 100 (AL) X 150 (AN) X 71 (FO) MM |
| Food | 6 x Pilas 1.5V (LR6) |
| Weight | 500 g |
| Secure | Cat II 1000V/ Cat III 600V |
