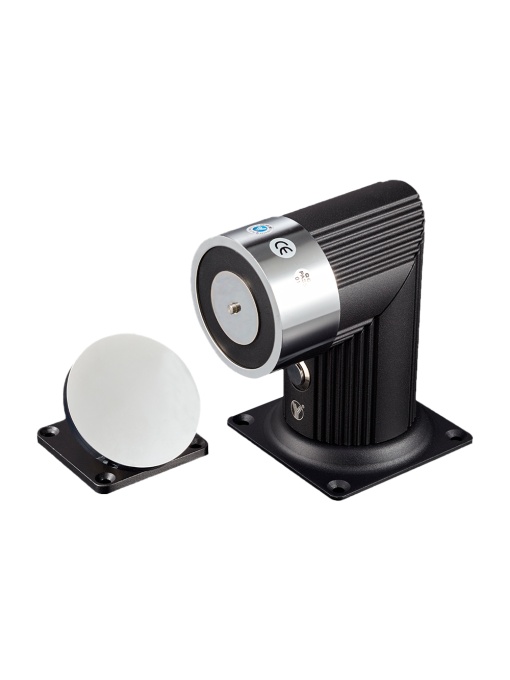

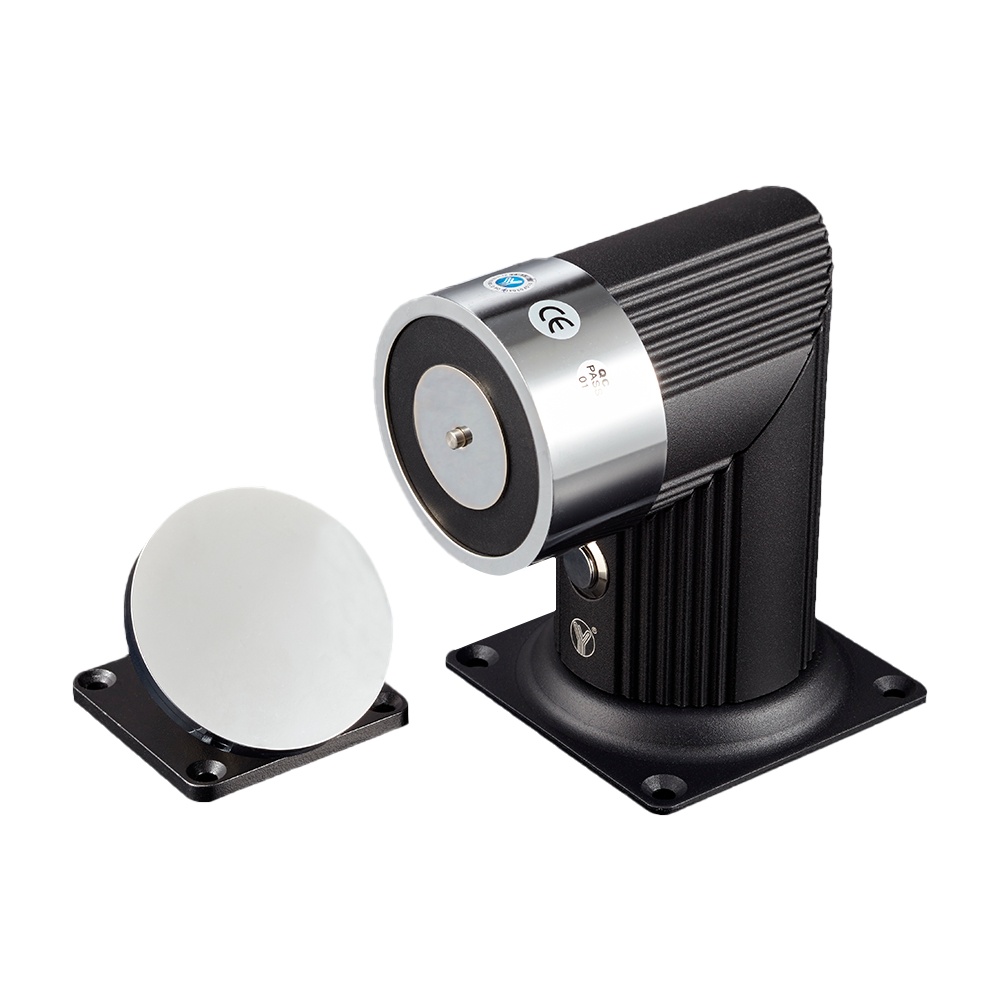

Electromagnetic retainer - for simple port - retention force 180 kg - Manual control button - Power at 12/24V DC - especially for floor assembly
€57.41
(IVA included)
€46.68
(Without IVA)
Delivery cost is not included
Description
| Door -type | Simple, 1 articulated sheet and RF doors |
| Closing mode | Relay sign or manual opening button |
| Retention force | 180 kg |
| Food | DC 12/24 V/240/120 mA (jumper selection) |
| Signal | State Sensor Door and Closing No/NC |
| Dimensions of the magnetic plate | 65 (AL) x 65 (width) x 41 (background) mm (retainer steel 68 mm) |
| Retainer dimensions | 128 (FO) X 90 (AL) X 90 (AN) MM |
| Weight | 1.6 kg |
| Temperature | 0º C ~ +55º C |
