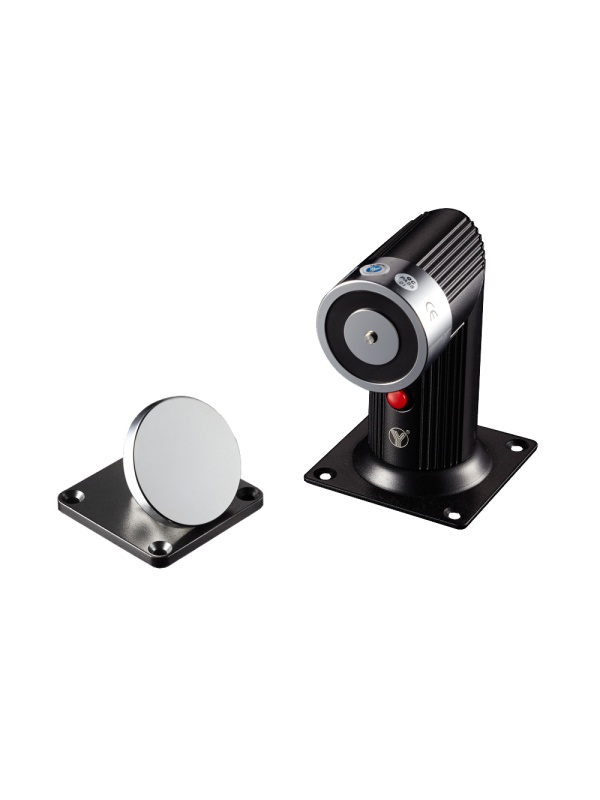

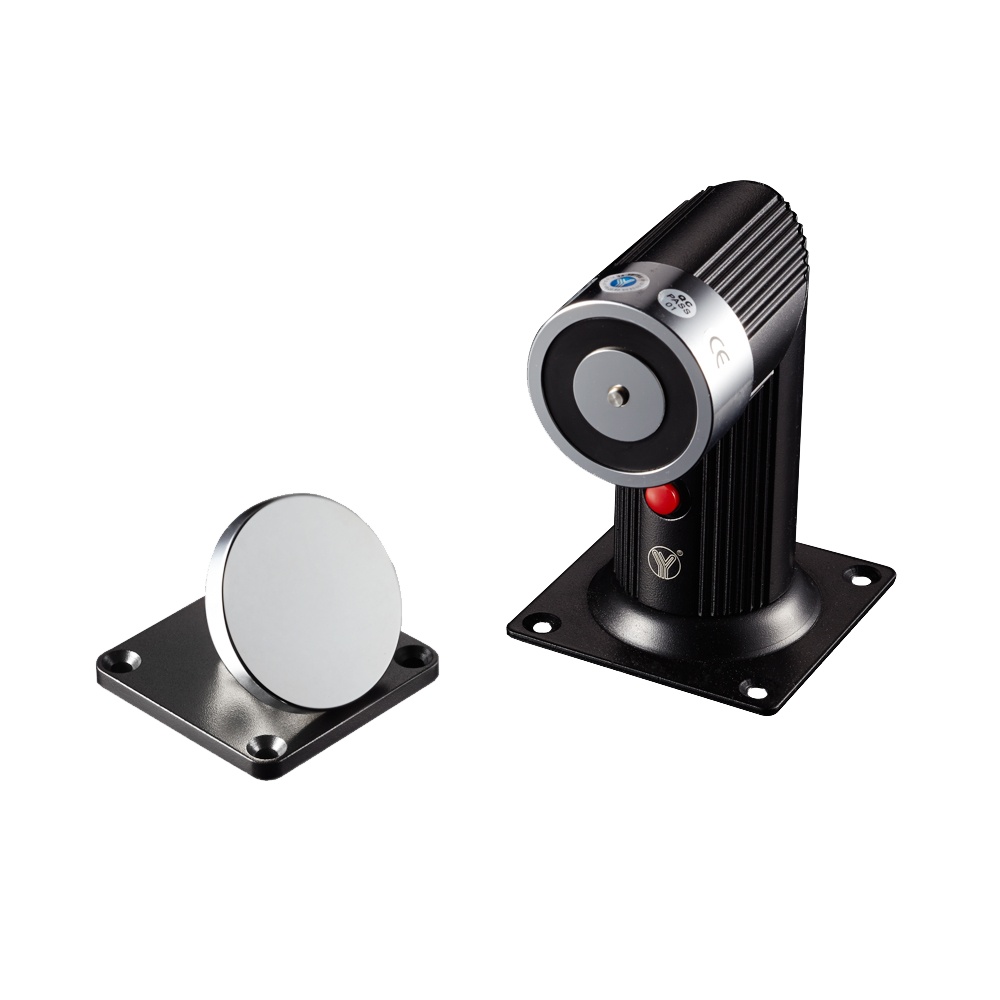

Electromagnetic retainer - for simple port - retention force 50 kg - Manual command button - 12/24V dc power - especially for assembly on the floor
€34.45
(IVA included)
€28.01
(Without IVA)
Delivery cost is not included
Description
| Door -type | Simple, 1 articulated sheet and RF doors |
| Closing mode | Relay sign or manual opening button |
| Retention force | 50 kg |
| Food | DC 12/24 V/240/120 MA (Jumper Selection) |
| Signal | State Sensor Door and Closing No/NC |
| Dimensions of the magnetic plate | 65 (AL) x 65 (width) x 41 (background) mm (retainer steel 54 mm) |
| Retainer dimensions | 120 (FO) X 80 (AL) X 80 (AN) MM |
| Weight | 1.05 kg |
| Temperature | 0º C ~ +55º C |
