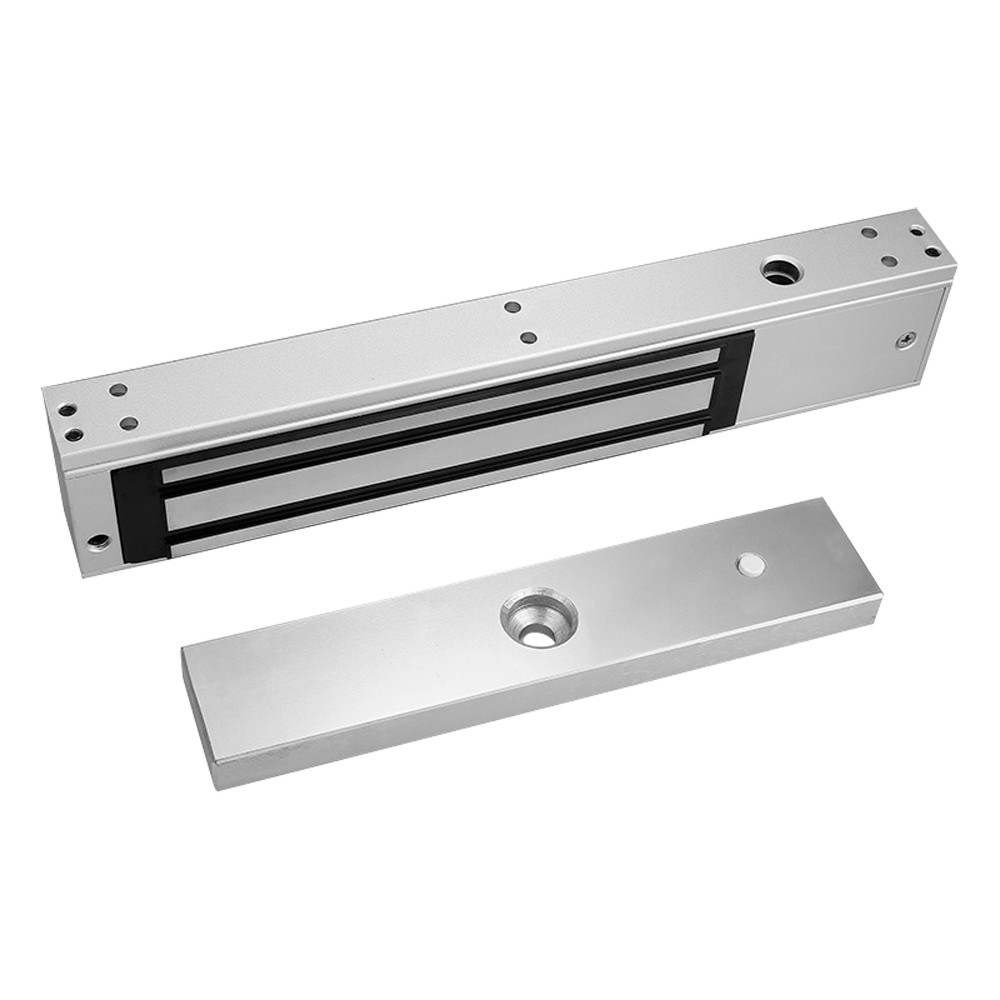

Electromagnetic Ventosa - For simple port - retention force 500 kg - Fail Opening Mode Safe (NC) - Surface assembly - LED, state sensor and adjustable time delay
€58.68
(IVA included)
€47.71
(Without IVA)
Delivery cost is not included
Description
| Model | YF-500ast-LED |
| Door -type | Simple: 1 folding curtain |
| Opening mode | FAIL SAFE / INVERTED (NC) |
| Retention force | 500 kg |
| Signaling | LED OF STATE OF THE DOOR Contact Output NO/NF/With for the state of the door lock |
| Blocking time | Adjustable delay |
| Food | DC 12 V / 660 MA Max. The DC 24 V / 330 Ma Max. |
| Assembly | Surface |
| Protection | Interior |
| Material | Aluminum |
| Temp. operating | -10 ° C ~ +55 ° C |
| Dimensions | Ventosa: 265 (LG) x 75 (AL) X 39 (PF) MM Rear plate: 180 (LG) x 38 (AL) x 13 (pf) mm |
