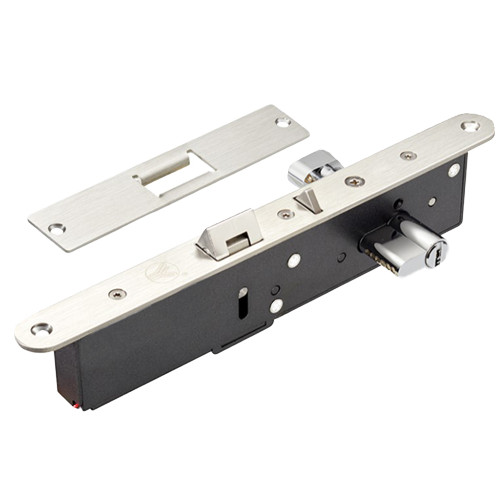

Electromechanical Safety Lock - Fail Secure and Fail Safe Opening Mode - 500 kg retention force | Door Sensor - Bidirectional Opening - SUS304 Stainless Steel - European Cylinder Included with Chaves
€90.58
(IVA included)
€73.65
(Without IVA)
Delivery cost is not included
Description
| Assembly | Cluttered |
| Opening mode | Fail Secure (NO) and Fail Safe (NC) |
| Opening type | Bidirectional |
| Retention force | 500 kg |
| Cylinder | European |
| Food | DC 12-24 V / 300 mA Max. |
| Door sensor | NC / NO / WITH |
| Input profile | 30 mm |
| Plate Dimensions | 25 (LG) x 275 (AL) x 51.9 (PF) mm |
| Dimensions of the hole | 30 (LG) x 150 (AL) x 1.5 (pf) mm |
| Temp. operating | -40º C ~ +60º C |
| Weight | 1.4 kg |
