Electronics Central 2 Engines 230V L2 W Automateasy / Matikgate (Wi-Fi and Bluethooth. Optional)

Description

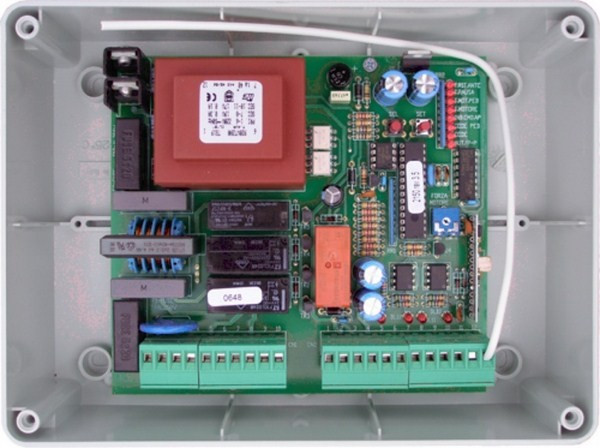

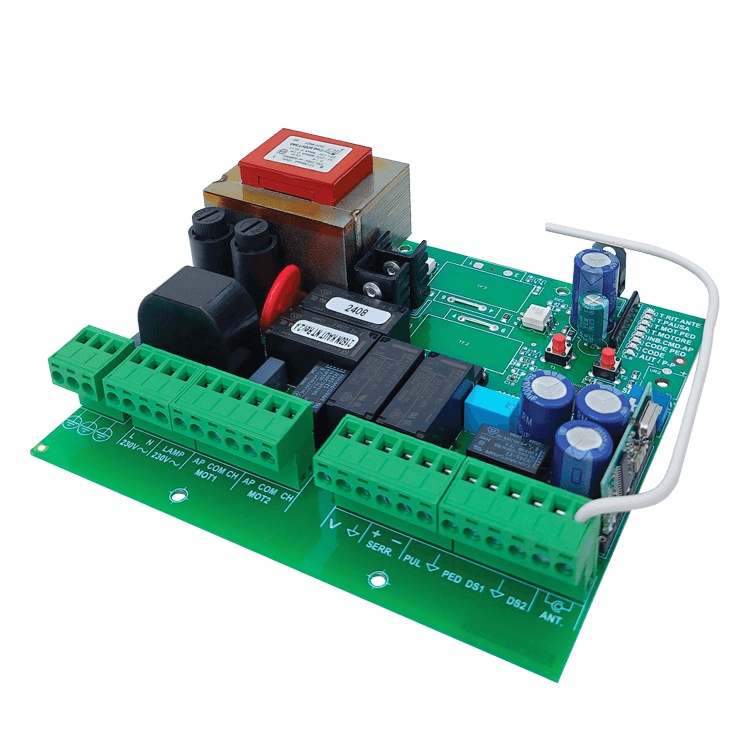

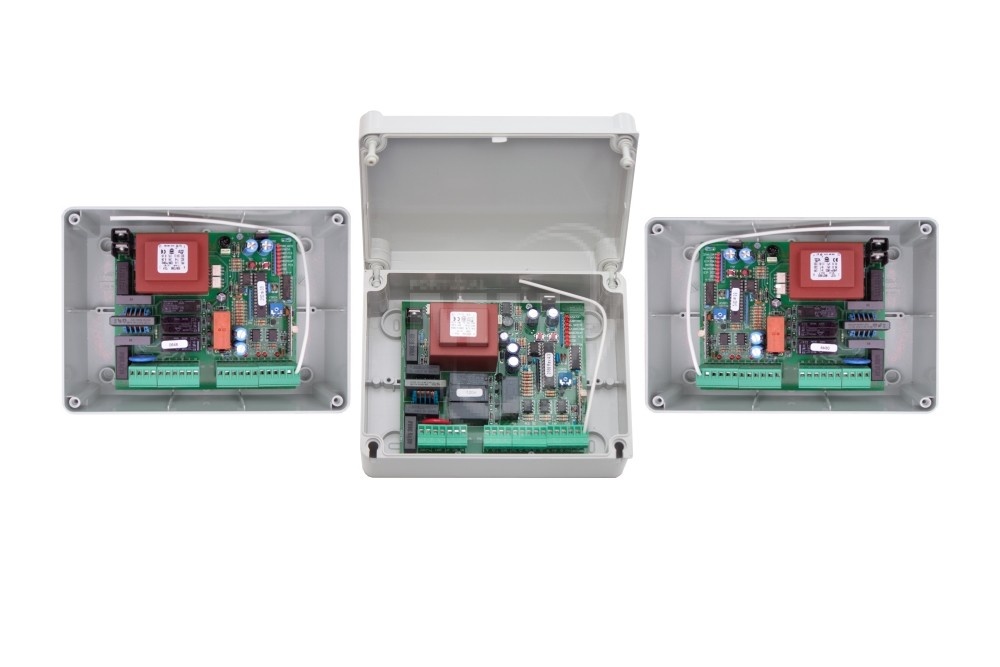

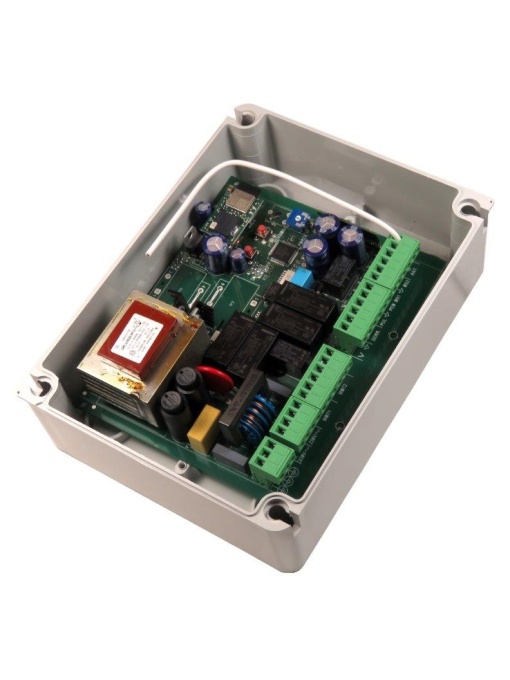

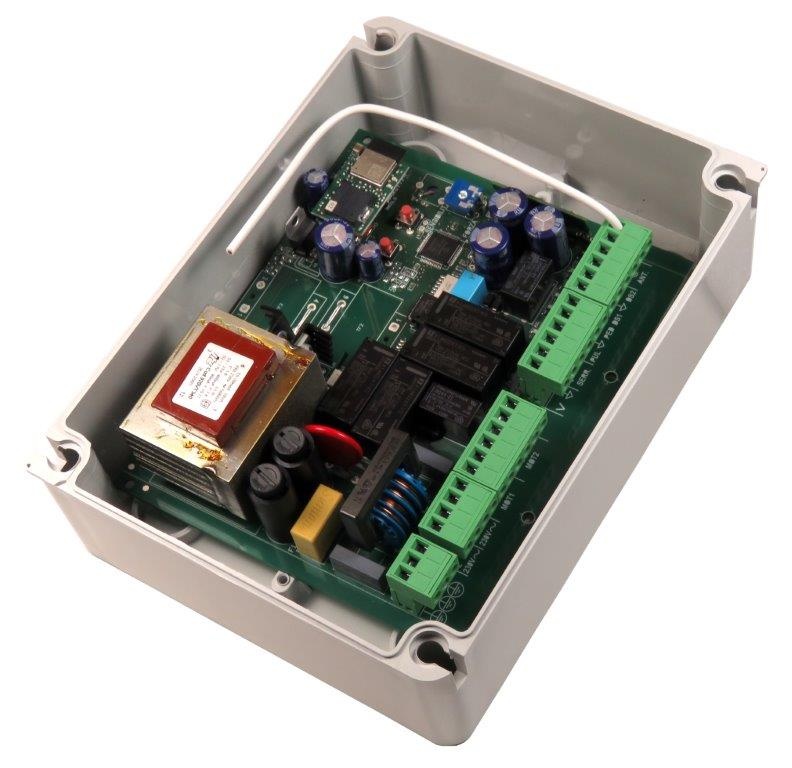

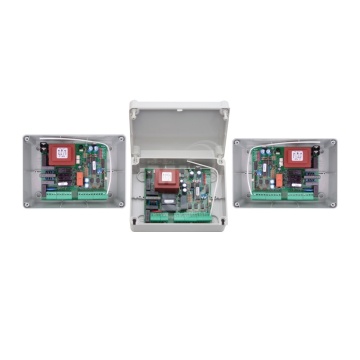

ELECTRONIC CENTER 2 ENGINES 230V L2

► 230V single -phase electronics center for 2 motors, applicable to two -sheet stop gates
► With incorporated receiver
► Memory capacity of 150 different commands of fixed code and/or rolling code

►Postally poses Wi-Fi and Bluethooth connection.

■ In addition to all the basic characteristics, it still has the following:

► Springs in the closure and opening
► Springs Control leaf leaf
► Pedonal opening with intended angle programming
► Output to Eletrophechadura
► Maximum force blow to start
► Strength scam at the end of the closure
► FRONT FORCE STOLL FOR OPENING ELECTROPHECHARADO
► Exit for 2 photochelial games
► Schedule of functions per command
► Condominium function: inhibition of opening commands
► Maintenance of pressure from hydraulic engines every 2 hours
► Self-diagnosis of possible damage through the signaling of 4 LEDs
► Possibility to be commanded by 1 clock for opening and closing
► Programming of 1 contact stop
► Distance command programming
► Memory capacity 150 codes


■ Technical specifications:

► Food: AC230V 50-60Hz 1600W Max.
► Intermittent output: AC230V 500W Max.
► Engine exits: AC230V 500W Max.
► Electric lock output: DC12V 15W max.
► Shooting feeding: AC24V 3W max.
► Low voltage security devices and commands: DC24V
► Radio receiver: 433.92 MHz
► Compatible commands: 12-18 bits or rolling code
► Memory: 150 TX Codes (Cod + Cod Ped)
► container measurements: 190x140x70 mm
► Operating temperature: -10ºC ~ 55ºC
► Degree of protection: IP56
