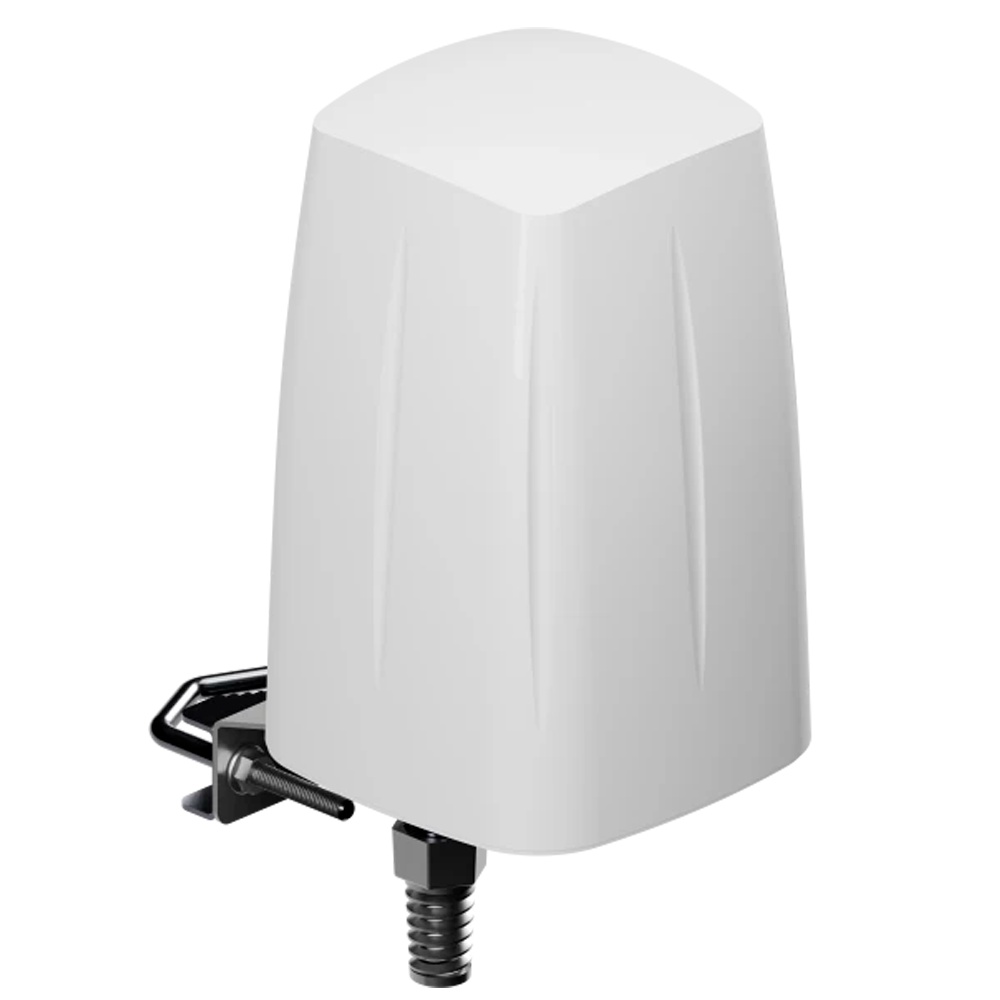

External Industrial Antenna Teltonika - 5g LTE/Wi -Fi/GNSS Combo - Mounting on Post/Mast - SMA Connectors - IP67 External Certificate - Antenna + Case for Assembly
€220.71
(IVA included)
€179.44
(Without IVA)
Delivery cost is not included
Description
| Assembly | Mast or wall assembly (apare) (Screws not included) |
| LTE Antennas | Frequency range: 617-960/1700-2700/3300-4300 MHz Polarization: Vertical Results: 4.5DBI (max) V.S.W.R <2.5 Impedance: 50 ohms 4x Male connectors |
| Wi-Fi Antennas | Frequency: 2400-2500/4700-6000 MHz Polarization: Vertical Results: 7.5DBI V.S.W.R <2.0 Impedance: 50 ohms 2x rp-sma male connectors |
| Gnss antenna | Frequency: 1560-1610 MHz Polarization: RHCP Results: 28 DBI V.S.W.R <2.0 Impedance: 50 ohms Voltage 2.5-6.5 VDC Current consumption 2.5-6.5 mA 1x male connector |
| Cables | 6x RG316 1x RG174 |
| Degree of protection | IP67 |
| Dimensions | 160 x 240 x 189 mm |
| Operating temperature | -40º C ~ +75º C |
| Weight | 1500 g |
| Food | It is necessary to feed the indoor teltonika with passive poe, through the LAN1 door with at least the PR324eub adapter (not included) |
| Compatibility | Compatible with TK-Rutm50, TK-Rutx50, TK-Rutx12 models |
