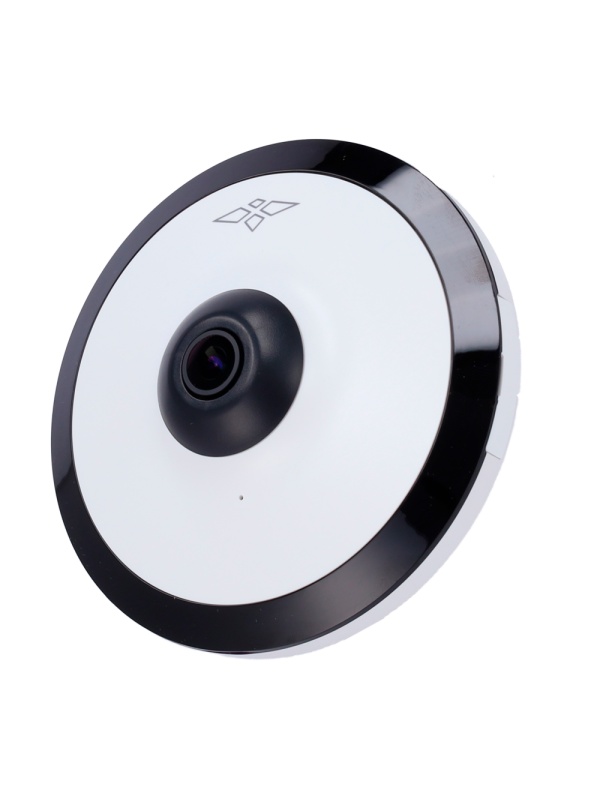

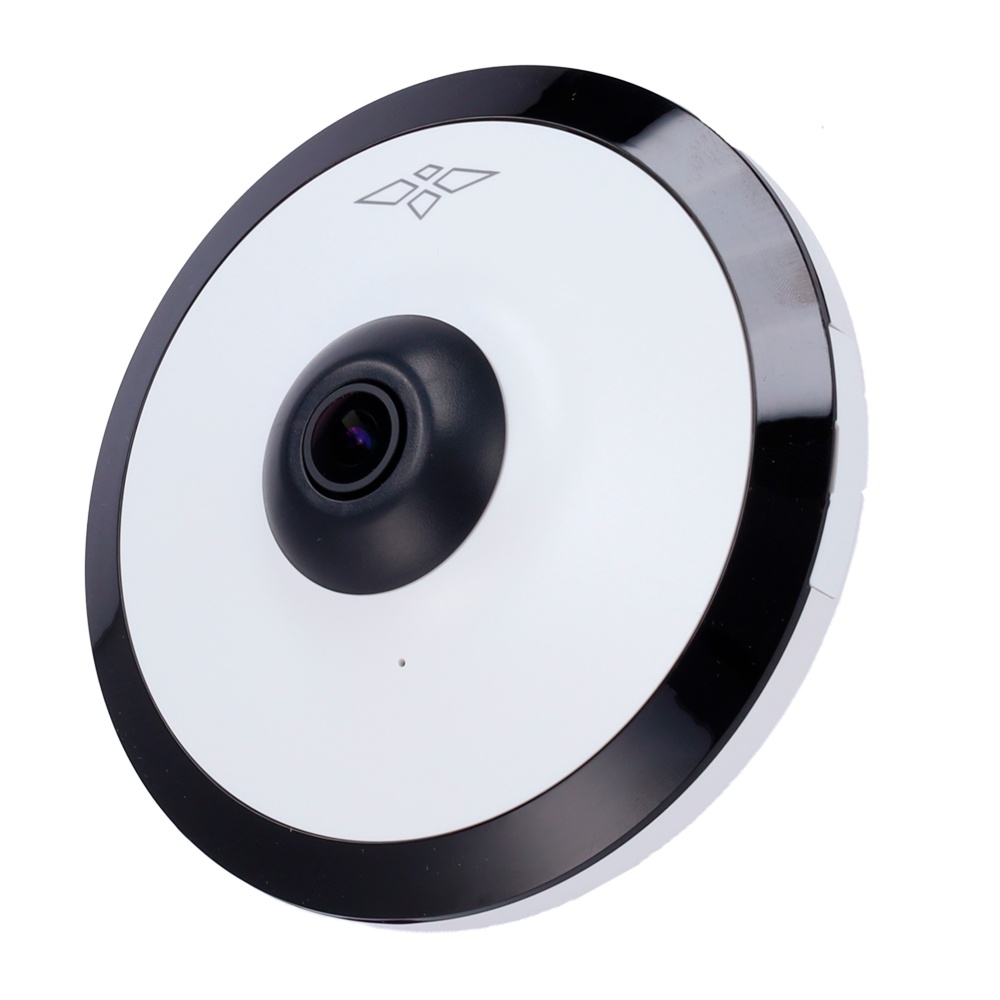

FISHEYE Chamber 5 Series MPX Ultra - 1 / 2.7 ”Progressive Scan CMOS - 1.4 mm / LED lens range 10 m - H.265 compression; H.264; H.264H; H.264B - WDR 120 DB | Incorporated microphone - Intelligent Functions
€227.44
(IVA included)
€184.91
(Without IVA)
Delivery cost is not included
Description
| Mark | X-security |
| Image sensor | 1/2.7 ”Progressive CMOS |
| Maximum resolution | 5 Megapixel (2592 × 1944) |
| Lens | 1.4 mm (h: 180 °; V: 180 °; D: 180 °) |
| Main Stream Rate | (2592 × 1944 @1–25/30 fps) |
| Extra stream rate | (704 × 576 @1–25 fps/704 × 480 @1–30 fps) |
| Compression | H.265; H.264; H.264h; H.264B; MJPEG (compatible with substance only) |
| Infrared lighting | 0.006 lux@f2.0 (color, 30ire) 0.0006 lux@f2,0 (n/n, 30ire))) 0 lux (linked illuminator) |
| Dari | 28 (D), 11.2 (O), 5.6 (r), 2.8 (i) |
| Image improvements | WDR 12db, Blc, HLC, AWB, AGC, 3D-DNR, |
| SIV (perimeter protection) | Tripwire; intrusion |
| PEOPLE COUNT | Counting of people in the area, visualization and issuance of annual / monthly / daily reports (corresponding devices are required); Counting of people in 4 areas |
| Intelligent research | Working together with Smart NVR for smart research, event extraction and merger with event videos. |
| Heat map | Yes |
| Network interface | Ethernet 10/100 Baset |
| Audio | Integrated microphone |
| Audio compression | PCM; G.711A; G.711MU; G726 |
| Audio inputs | 1/1 |
| Alarms | 1 input channel: 5mA 3V - 5V DC 1 output channel: 300mA 12V DC |
| Remote access | Web Interface, CMS (DSS/PSS), Smartphone and NVR |
| Interoperability | Onvif (Profile S/Profile G/Profile T); .CGI; Hito; Genetec; P2P |
| Material | Metal + Plastic |
| Food | DC 12 V / 4.4W, POE IEEE802.3AF |
| Temp. operation | -40º C ~ +60º C |
| Internal storage | Micro sd max 256gb |
| Degree of protection | IP67 Waterproof |
| Dimensions | 44.6 mm (AL) × 126,2φ mm |
| Weight | 299 g |
