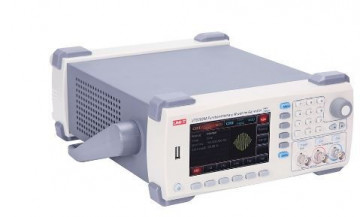

FUNCTION GENERATOR 2 USB 25MHZ Channels - UNI -T
€442.00
(IVA included)
Description
- Channels 2
- Sample rate 125ms / s
- 25mHz output frequency
- 1uhz frequency resolution
- Vertical Resolution 14 Bits
- Max. Arb. 8 kpts memory depth
- Sine wave shapes, square, ramp, triangle, pulse, noise, dc, arb
- Exit amplitude 1MVPP ~ 10VPP (50O), 2MVPP ~ 20VPP (High Z)
- Types of modulation AM, FM, PM, ASK, FSK, PWM, Scanning, Explosion
- USB device interfaces, USB host, frequency to do
General characteristics
- Power 100 ~ 240 VAC, 45-440Hz
- 4.3 inch display 64k Color TFT LCD (480x272)
- Product weight 3.2 kg
- Product size 165x320x110mm

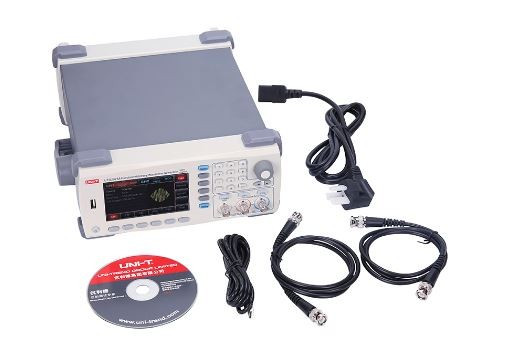

- Accessories: BNC cable, power cord, USB cable, PC software CD
