HDMI Modulatory "3-EM-1" Pro P/ DVB-T/ DVB-C/ ISDB-T C/ LOOP-TOUGH HDMI and IR TX-Edision
Description
Description

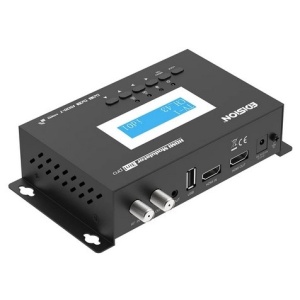

HDMI Single Digital Channel HDMI Modulator with LOOP-HDMI Function, incorporated IR transmitter with RF-in mixture input. The HDMI signal input of any satellite source (satellite receiver, TV box, CCTV, DVD, digital signaling, etc.) can be converted to Full HD 1080p 60fps Signal output DVB-T, ISDB-T or DVB-C MPEG4 Cable Full HD 1080p 60fps, in VHF or UHF band. It produces an excellent quality signal output, combined with a reliable, easy and fast configuration with the LCD display and stable operation in any installation scheme.
-Digital Digital Channel HDMI Modulator for DVB-T, DVB-C or ISDB-T with Loop-Through HDMI and IR TX
- Input signal: 1x hdmi v1.4a
-RF Output Sign: 1 x DVB-T Digital Terrestrial, ISDB-T or DVB-C MPEG4 cable
-DVB-T frequency range: VHF (channels 5-12) and UHF (channels 21-69)
-Frequency range ISDB-T: VHF (channels 7-13) and UHF (channels 14-69)
-DVB-C frequency range: 47-862 MHz
- With loop-through rf
- With loop-through hdmi
- Control IR on ready coaxial, through the transmitter IR incorporated
- High video resolution until Full HD 1080p 60 FPS
- RF output level: 90 dbµV factory standard, with adjustable gain up to +6dbµV or attenuation up to -14dbµV
- MER greater than 35db
- Symbol rate: up to 31,668 Mbps
- Band width: 6mHz, 7mhz, 8mhz
- MPEG1 Video Coder, MPEG2 MP@HL, MPEG4 SP@L3 for asp@l5, MPEG4 AVC hp@level4.1, mp@level4.1
- MPEGI L1/2 Audio Coder, MPEGII LII, AAC LC, He-AAC V1/V2 (2 channels)
- Processor System: 800 MHz and 32 -bit CPU ARM9
- 16 -bit and 1 gbit/s ddriii memory (incorporated) and 32 mbit flash
- Rapid pre-configuration function/50 selectable IDS
- USB (CFG) security copy configuration file
- Software update by USB

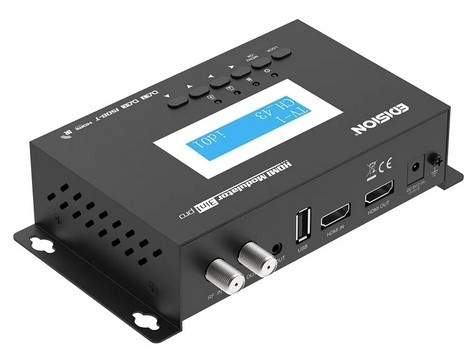

- Doors: RF In, RF Out, IR Out, USB, HDMI IN, HDMI Output, DC 5V/2.0A, Earth

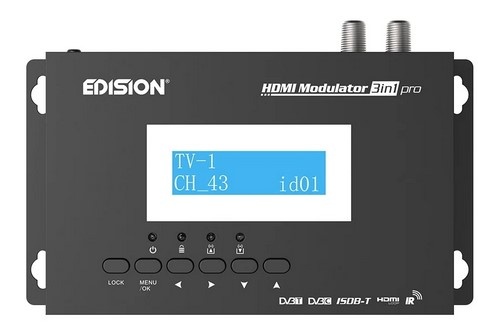

- Standby LCD display
- 6 front panel buttons: block, menu/ok, left, right, up, low
Characteristics:
Product Color: Black
Power supply: 100 - 240 AC 50/60Hz
Input Voltage: DC 5V 2.0A
Dimensions: 164 x 106 x 41 mm
