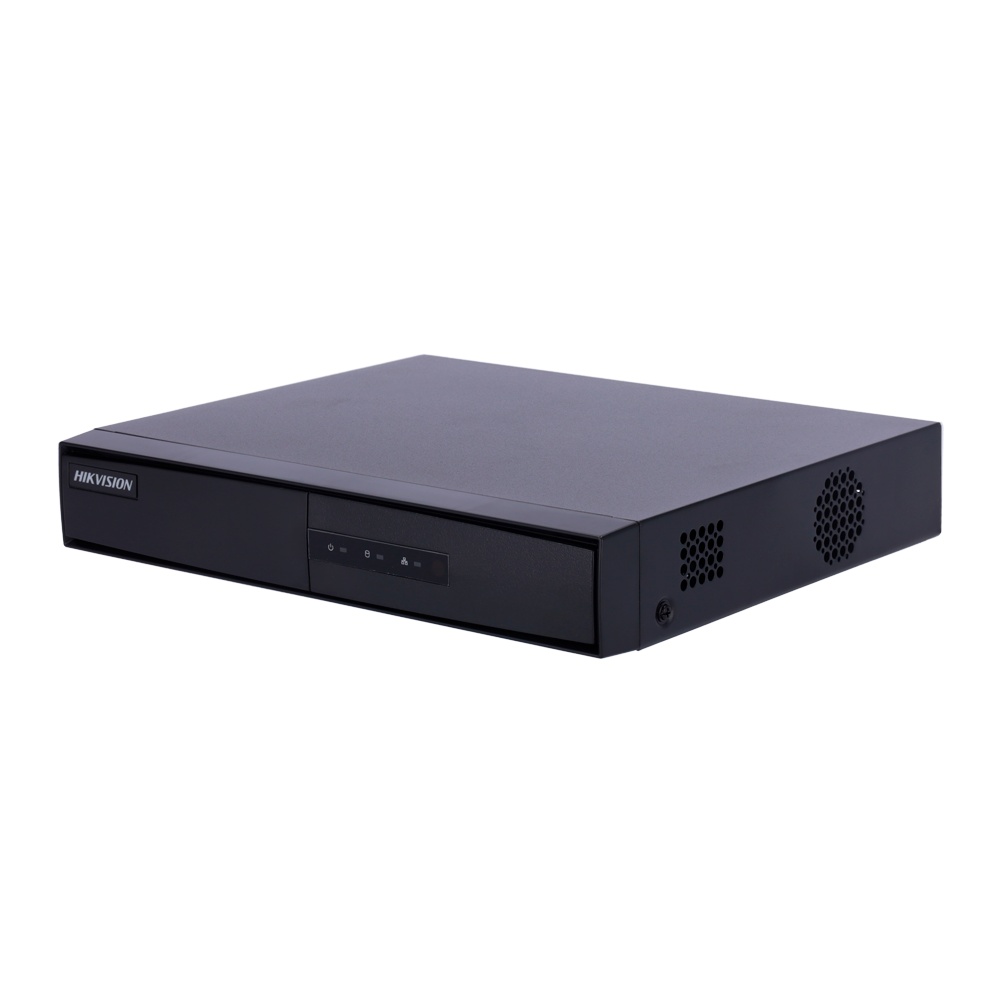

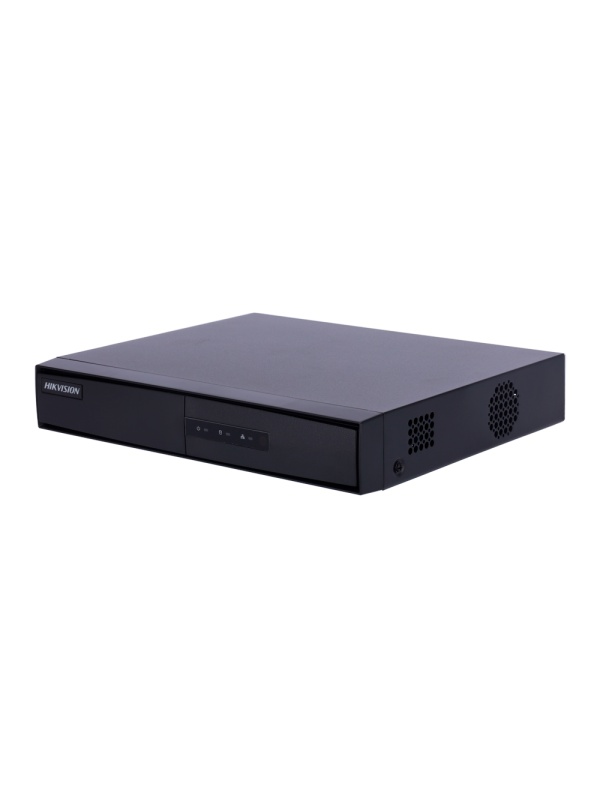

Hikvision - Core range - NVR recorder for IP cameras - 4 CH Video poe 36 W / maximum resolution 6 mpx - bandwidth 40 Mbps - Admits 1 hard disk
€134.27
(IVA included)
€109.17
(Without IVA)
Delivery cost is not included
Description
| Mark | Hikvision |
| Gamma | Core |
| IP Chambers inputs | 4 -door switch Poe IEEE802.3AF/AT (max .. 36 W) |
| POE FOOD | 4 (Max. 36 W) |
| Compatible IP chambers | Hikvision (native protocol), onvif |
| Video exits | 1xHDMI FULLHD, 1xvga simultaneous |
| Video Compression Format | H.265+ / h.265 / h.264+ / h.264 |
| Display resolution | HDMI: 1920x1080, 1600xx1200, 1280x1024, 1280x720 VGA: 1920x1080, 1600xx1200, 1280x1024, 1280x720 |
| Total Band Width | 40 mbps input / 60 mbps output |
| Stream | Video / Video + Audio |
| Main Stream recording | 6MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding capacity | 1ch@6mpx, 2ch@4mpx, 4ch@1080p |
| Simultaneous multifunction | Pentaplex: direct, recording, reproduction, backup and remote access |
| Motion detection | Movement detection 2.0 with human classification and vehicle applied to movement detection Only available using cameras that also have 2.0 motion detection. |
| Alarms | Does not have |
| Recording method | Manual, programmed, motion detection |
| External backup | USB / HDD memory USB / CD-RW USB / DVR-RW USB |
| Remote access | Web browser, Hik-Connect Smartphone App, PC Software IVMS-4200 and Hik-Central |
| Remote Connections | 16 |
| Internal storage | 1 HDD SATA 3.5 "up to 6 tb (not included) |
| Communication | 2 x USB 2.0 (rear) / 1 x rj45 10 / 100m (ethernet) |
| Food | DC 48 V / 1 A, ≤ 10 W (no HDD) |
| Operating temperature | -10ºC ~ 55ºC (10% -90% humidity) |
| Dimensions / Weight | 48 (AL) X 265 (AN) X 223 (FO) MM / 1 Kg (No HDD) |
Opinions of our customers
Do you have or have you used the product?
Post comment
Details
SKU
DS-7104NI-Q1/4P/M(D)
EAN
6942160417110
