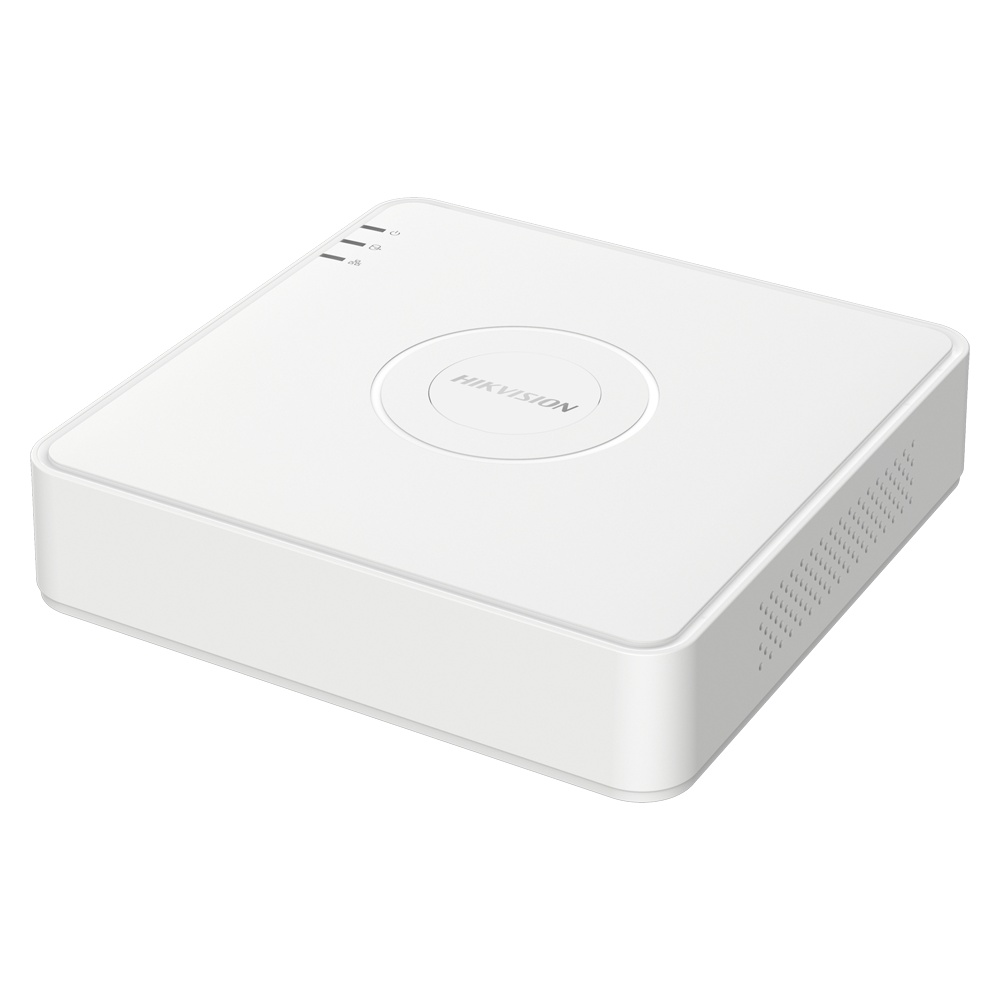

HIKVISION DVR 5N1 - 4 CH HDTVI / HDCVI / AHD / CVBS - Up to 8 IP channels - Maximum input resolution 8 MPX - Acusense | Face Detection - Supports 1 hard disk up to 10TB
€105.52
(IVA included)
Delivery cost is not included
Description
| Mark | Hikvision |
| Gamma | Value |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 4 BNC channels, (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | 2 Additional IP CH: Up to 6 IP channels (8MPX), replacing all BNC channels IP Mode improved: 4CH Additional IPS: Up to 8 IP channels (4MPX), replacing all BNC channels |
| Available bandwidth | 96 Mbps |
| Video exits | 1 HDMI 2K and 1 VGA, simultaneously; |
| Display resolution | HDMI: 2560x1440, 1920x1080, 1280x1024, 1280x720 / 60Hz VGA: 1920x1080, 1280x1024, 1280x720 / 60Hz |
| Audio inputs | 1 RCA Channel |
| Audio exits | 1 RCA Channel |
| Bidirectional audio | Reuse the audio input |
| Bit Rate Audio | 64 kbps |
| Audio compression | G.711U |
| Video Compression | Analog: H.265 Pro+ / h.265 Pro / h.265 / h.264+ / h.264 IP: H.265+ / h.265 / h.264+ / h.264 |
| Entry resolution | HDTVI: 8MPX (12 ~ 15 fps), 3k (20 fps), 5mpx (12 ~ 20 fps), 4mpx (25 ~ 30 fps), 3mpx (18 fps), 1080p (25 ~ 30 fps), 720p (25 ~ 60 fps) HDCVI: 8MPX (12 ~ 15 fps), 5mpx (12 ~ 20 fps), 4MPX (25 ~ 30 fps), 3mpx (18 fps), 1080p (25 ~ 30 fps), 720p (25 ~ 60 fps) AHD: 5mpx (12 ~ 20 fps), 4MPX (25 ~ 30 fps), 1080p (25 ~ 30 fps), 720p (25 ~ 30 fps) CVBS: PAL/NTSC |
| Main Stream coding | 8MPX (8 fps), 3k (12 fps), 5mpx (12 fps), 4mpx (15 fps), 8 mpx lite (15 fps), 3mpx (18 fps), 1080p/720p/wd1/4cif/vga/cif (25 fps (p), 30 fps (n)) * 8MPX@8 FPS is only available for channel 1 * 8MPX Lite is only available for channels 2 to 4. |
| Extra Stream coding | WD1/4CIF/CIF (25 fps (p), 30 fps (n)) |
| Bit Rate Video | 32 kbps at 10 mbps |
| Simultaneous multifunction | Pentaplex: direct, recording, reproduction, backup and remote access |
| Alarms | Does not have |
| Artificial intelligence | MOVEMENT DETECTION 2.0: Deep -based movement detection can classify humans and vehicles after movement detection. Activated by defect in all analog channels * Movement detection and Acusense cannot be activated at the same time on the same device. |
| Intelligent Functions | ACUSEANE: Perimeter protection based on VCA rules with false alarm filter for human and vehicle detection. Available in up to 4 analog video channels * Movement detection and Acusense cannot be activated at the same time on the same device. |
| Face detection | Yes |
| Recording method | Manual, programmed, motion detection |
| Backup | USB (memory, hdd, cd-rw, dvr-rw) / network |
| Internal storage | 1 HDD SATA 3.5 "up to 10 tb (not included) |
| Communication | 2 x USB (Mouse and Backup) / RJ45 (Ethernet) |
| Remote Connections | 32 |
| Remote access | Web browser, Hik-Connect Smartphone App, PC Software IVMS-4200 and Hik-Central |
| Food | DC 12 V, 1.5 A, ≤ 15 W (without HDD) |
| Operating temperature | -10 ° ~ +55 ° C |
| Dimensions / Weight | 45 mm (h) x 200 mm (w) x 200 mm (fo) / ≤ 1.16 kg (without HDD) |
| Color | White |
